A LicsStarcat object is a star catalogue with a set of stars. More...

#include <LicsStarcat.h>

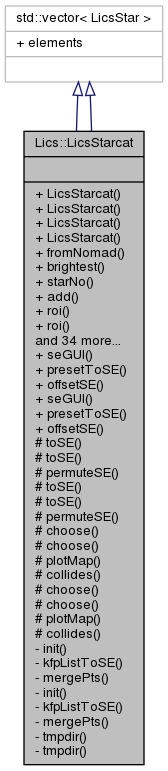

Inheritance diagram for Lics::LicsStarcat:

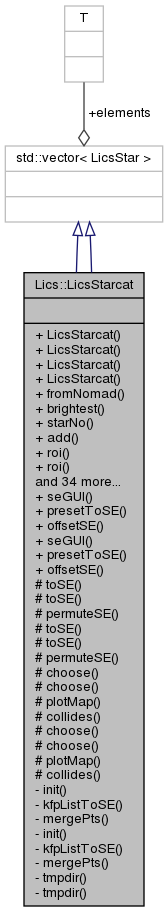

Collaboration diagram for Lics::LicsStarcat:

Public Member Functions
	LicsStarcat ()
	default ctor. This defines an empty star catalogue More...

	LicsStarcat (const lbto::SeqPos2 &slist)
	Define the catalogue through a list of stars. More...

	LicsStarcat (const std::string &ifnam, const std::string &typ)
	Define the catalogue by reading a LBTO ASCII catalogue. More...

	LicsStarcat (const std::vector< std::string > &ifnam, const std::string &typ)
	Define the catalogue by merging one or more LBTO ASCII catalogues. More...

void	fromNomad (double cntr[2], double conrad, double faint)
	Fill the list of stars with an online call of the NOMAD catalogue. If the computer or internet are down, or the search criteria yield effectively no star, the resulting catalog will be empty. More...

int	brightest () const
	find brightest star in the list More...

Lics::LicsStar	starNo (int idx) const
	Return the i-th star. More...

void	add (const Lics::LicsStarcat &s)
	Add all stars of another catalogue. Warning: There is no criterion activated/applied that eliminates duplicates. More...

lbto::SeqPos2	roi (const double coord1, const double coord2, const double dist) const
	reduce the star set to a neighbourhood (region of interest) of some coordinate. More...

lbto::SeqPos2	roi (const lbto::position2 &cntr, const double dist) const
	reduce the star set to a neighbourhood (region of interest) of some coordinate. More...

std::string	toLbtoFmt (const lbto::position2 &cntr, const Nice::Date &t, const double motang[2], int verb, bool batch, const bool ask4Kfp, const double dist=0.001)
	Return a sequence of lines equivalent to the small catalogues of LBTO. This is called (by overloading) from licsStarcat.cc . Inside this function the predicted star positions are forwarded to the SE GUI. More...

std::string	toLbtoFmt (const Nice::Date &t, const double motang[2], int verb, bool batch, const bool ask4Kfp)
	Return a sequence of lines equivalent to the small catalogues of LBTO. This is the entry point taken by licsStarcat.cc . More...

std::string	toLbtoString (const lbto::position2 &cntr, const Nice::Date &t, const double dist)
	Return a sequence of lines equivalent to the small catalogues of LBTO. This essentially applies proper motion and precession to a local copy of the stars (but leaves the stars in this catalog at their equinox/epoch). More...

std::string	toXephem () const
	Return a sequence of lines equivalent to the Xephem catalog format. More...

Nice::MapStringPoint	assignSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::SeqPoint &coo, const std::string &unit, std::vector< std::vector< short > > &selists, bool interact, std::vector< int > &assocIdx)
	convert a list of F coordinates to SE assignments. The input is a set of 2D point coordinates in the SE plane, coo. The task of this function is to associate with as many points as possible one SE to each of them without collisions of the arms. More...

LicsStarcat	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws)
	Convert catalogue positions to SE focal plane Cartesian coordinates. More...

LicsStarcat	propMot () const
	Apply all proper motions. More...

LicsStarcat	propMot (const Nice::Date &t) const
	Apply the proper motions. More...

LicsStarcat	precess () const
	Correct equatorial coordinates for precession. More...

LicsStarcat	precess (const Nice::Date &t) const
	Correct for precession. More...

void	aladin () const
	Show the region of the sky with Aladin of the university of Strasbourgh. This opens a brower window that shows the 3 1/2 arcmin surrounding of the target star. More...

void	skymake (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ao, std::string &ffile, Nice::Date &t, const float asperpix=0.4)
	Generate a ds9 popup GUI with a skymaker mockup view of the sky. More...

	LicsStarcat ()

	LicsStarcat (const lbto::SeqPos2 &slist)

	LicsStarcat (const std::string &ifnam, const std::string &typ)

	LicsStarcat (const std::vector< std::string > &ifnam, const std::string &typ)

void	fromNomad (double cntr[2], double conrad, double faint)

int	brightest () const

Lics::LicsStar	starNo (int idx) const

void	add (const Lics::LicsStarcat &s)

lbto::SeqPos2	roi (const double coord1, const double coord2, const double dist) const

lbto::SeqPos2	roi (const lbto::position2 &cntr, const double dist) const

std::string	toLbtoFmt (const lbto::position2 &cntr, const Nice::Date &t, const double motang[2], int verb, bool batch, const bool ask4Kfp, const double dist=0.001)

std::string	toLbtoFmt (const Nice::Date &t, const double motang[2], int verb, bool batch, const bool ask4Kfp)

std::string	toLbtoString (const lbto::position2 &cntr, const Nice::Date &t, const double dist)

std::string	toXephem () const

Nice::MapStringPoint	assignSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::SeqPoint &coo, const std::string &unit, std::vector< std::vector< short > > &selists, bool interact, std::vector< int > &assocIdx)

LicsStarcat	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws)

LicsStarcat	propMot () const

LicsStarcat	propMot (const Nice::Date &t) const

LicsStarcat	precess () const

LicsStarcat	precess (const Nice::Date &t) const

void	aladin () const

void	skymake (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ao, std::string &ffile, Nice::Date &t, const float asperpix=0.4)

Static Public Member Functions
static void	seGUI (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::MapStringPoint &Fmap)
	Submit a list of positions to the SE GUI and/or move the SE arms. More...

static LicsStarcat	presetToSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws)
	Convert catalogue positions used with the preset to SE focal plane coordinates. More...

static Nice::Point	offsetSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, double deltaRa, double deltaDec)
	Convert differential catalogue positions used with the offset to SE focal plane coordinates. More...

static void	seGUI (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::MapStringPoint &Fmap)

static LicsStarcat	presetToSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws)

static Nice::Point	offsetSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, double deltaRa, double deltaDec)

Protected Member Functions
Nice::SeqPoint	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::Date &t, double &pang, double &mang, const std::string &unit, double mum2as, const bool ask4Kfp, Lics::LicsAffTrans &wcs, std::vector< int > &assocIdx)
	Convert catalogue positions to SE focal plane Cartesian coordinates. More...

Nice::SeqPoint	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const double pang, const double mang, Nice::SeqPoint kfpcoords, const std::string &unit, double mum2as, Lics::LicsAffTrans &wcs, std::vector< int > &assocIdx)
	Convert catalogue positions to SE Cartesian coordinates. More...

Nice::MapStringPoint	permuteSE (const Nice::SeqPoint &coo, const Laos::LaosSeSet &seSet, Nice::Point **locCoo, int seN, const std::vector< std::vector< short > > &selists, const std::vector< int > &assocIdx)
	Permute the assignment of points to SE's to optimize placement. More...

Nice::SeqPoint	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Nice::Date &t, double &pang, double &mang, const std::string &unit, double mum2as, const bool ask4Kfp, Lics::LicsAffTrans &wcs, std::vector< int > &assocIdx)

Nice::SeqPoint	toSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const double pang, const double mang, Nice::SeqPoint kfpcoords, const std::string &unit, double mum2as, Lics::LicsAffTrans &wcs, std::vector< int > &assocIdx)

Nice::MapStringPoint	permuteSE (const Nice::SeqPoint &coo, const Laos::LaosSeSet &seSet, Nice::Point **locCoo, int seN, const std::vector< std::vector< short > > &selists, const std::vector< int > &assocIdx)

Static Protected Member Functions
static std::vector< std::vector< short > >	choose (const std::vector< std::vector< short > > &selists, std::vector< int > &keeplst)
	Assemble all allowed combinations of assignments. The task is to figure out by readign the 2D table selists and a list of first (leading) indices of that list of admissable points, how this set of points can be assigned to the SE's without having a SE being used more than once. More...

static std::vector< std::vector< short > >	choose (const std::vector< std::vector< short > > &selists, std::vector< short > presel, std::vector< int > &keeplst)
	Assemble all allowed combinations of assignments. More...

static void	plotMap (const Nice::MapStringPoint &m, const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Laos::LaosSeSet &seSet)
	plot the assignment of SE over the focal plane for a visual feedback with Gnuplot. More...

static bool	collides (const Laos::LaosSeSet &seSet, Nice::Point **locCoo, std::vector< short > Cc)
	check whether some arms collide. The arms that are assigned to local coordinates and indexed by parameter Cc are augmented by the disabled arms at their configured positions. Then in a double loop over all the pairs of arm contours watch whether the contours intersect. More...

static std::vector< std::vector< short > >	choose (const std::vector< std::vector< short > > &selists, std::vector< int > &keeplst)

static std::vector< std::vector< short > >	choose (const std::vector< std::vector< short > > &selists, std::vector< short > presel, std::vector< int > &keeplst)

static void	plotMap (const Nice::MapStringPoint &m, const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const Laos::LaosSeSet &seSet)

static bool	collides (const Laos::LaosSeSet &seSet, Nice::Point **locCoo, std::vector< short > Cc)

Private Member Functions
void	init (const std::string &ifnam, const std::string &typ)
	Define the catalogue by reading a LBTO ASCII or NOMAD catalogue. More...

Nice::SeqPoint	kfpListToSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const double pang, const double mang, Nice::SeqPoint kfpcoords, const std::string &unit, double mum2as, std::vector< int > &assocIdx)
	Convert KFP positions to SE Cartesian coordinates. More...

LicsStarcat	mergePts (const Nice::SeqPoint &pts, const std::vector< int > &asocIdx, const Laos::LaosSeAOType &ghws) const
	Create a star catalog with a list of 2D point coordinates merged into. More...

void	init (const std::string &ifnam, const std::string &typ)

Nice::SeqPoint	kfpListToSE (const Lics::LicsIIFSide &sdx, const Laos::LaosSeAOType &ghws, const double pang, const double mang, Nice::SeqPoint kfpcoords, const std::string &unit, double mum2as, std::vector< int > &assocIdx)

LicsStarcat	mergePts (const Nice::SeqPoint &pts, const std::vector< int > &asocIdx, const Laos::LaosSeAOType &ghws) const

Static Private Member Functions
static std::string	tmpdir (const std::string &fnam)
	create TMPDIR if it does not yet exist More...

static std::string	tmpdir (const std::string &fnam)

Detailed Description

A LicsStarcat object is a star catalogue with a set of stars.

Since: 2017-01-18

Author: R. J. mathar

Constructor & Destructor Documentation

◆ LicsStarcat() [1/8]

Lics::LicsStarcat::LicsStarcat ( )

default ctor. This defines an empty star catalogue

Since: 2017-01-18

◆ LicsStarcat() [2/8]

Lics::LicsStarcat::LicsStarcat ( const lbto::SeqPos2 & slist )

Define the catalogue through a list of stars.

Parameters

slist The stars in the IIF style that define the (original) set of stars.

Since: 2017-03-19

◆ LicsStarcat() [3/8]

Lics::LicsStarcat::LicsStarcat	(	const std::string &	ifnam,
		const std::string &	typ
	)

Define the catalogue by reading a LBTO ASCII catalogue.

Parameters

ifnam	The File stream of the ASCII file.
typ	Type of the ASCII file. Recognized are the 13-field "lbto" and the 17-field "nomad"

Since: 2017-01-18

◆ LicsStarcat() [4/8]

Lics::LicsStarcat::LicsStarcat	(	const std::vector< std::string > &	ifnam,
		const std::string &	typ
	)

Define the catalogue by merging one or more LBTO ASCII catalogues.

Parameters

ifnam	The File names of the ASCII files.
typ	Type of the ASCII file. Recognized are "lbto" and "nomad."

Since: 2017-01-18

◆ LicsStarcat() [5/8]

Lics::LicsStarcat::LicsStarcat ( )

◆ LicsStarcat() [6/8]

Lics::LicsStarcat::LicsStarcat ( const lbto::SeqPos2 & slist )

◆ LicsStarcat() [7/8]

Lics::LicsStarcat::LicsStarcat	(	const std::string &	ifnam,
		const std::string &	typ
	)

◆ LicsStarcat() [8/8]

Lics::LicsStarcat::LicsStarcat	(	const std::vector< std::string > &	ifnam,
		const std::string &	typ
	)

Member Function Documentation

◆ add() [1/2]

void Lics::LicsStarcat::add ( const Lics::LicsStarcat & s )

Add all stars of another catalogue. Warning: There is no criterion activated/applied that eliminates duplicates.

Parameters

s	The stars to be incorporated.

Since: 2017-01-20

◆ add() [2/2]

void Lics::LicsStarcat::add ( const Lics::LicsStarcat & s )

◆ aladin() [1/2]

void Lics::LicsStarcat::aladin ( ) const

Show the region of the sky with Aladin of the university of Strasbourgh. This opens a brower window that shows the 3 1/2 arcmin surrounding of the target star.

Since: 2017-06-26

◆ aladin() [2/2]

void Lics::LicsStarcat::aladin ( ) const

◆ assignSE() [1/2]

Nice::MapStringPoint Lics::LicsStarcat::assignSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::SeqPoint &	coo,
		const std::string &	unit,
		std::vector< std::vector< short > > &	selists,
		bool	interact,
		std::vector< int > &	assocIdx
	)

◆ assignSE() [2/2]

Nice::MapStringPoint Lics::LicsStarcat::assignSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::SeqPoint &	coo,
		const std::string &	unit,
		std::vector< std::vector< short > > &	selists,
		bool	interact,
		std::vector< int > &	assocIdx
	)

convert a list of F coordinates to SE assignments. The input is a set of 2D point coordinates in the SE plane, coo. The task of this function is to associate with as many points as possible one SE to each of them without collisions of the arms.

Parameters

[in]	sdx	The side indicator, SX or DX.
[in]	ghws	The flag for either HWS or GWS.
[in]	coo	The list of F plane coordinates to be distributed. coo[p] are the F plane coordinates of star number p that was admitted to the annulus.
[in]	unit	mm or um, indicating the units implied by the coo coordinates.
[out]	selists	On output the possible 0-based SE indices for each of the points. This list will have eliminated SE's that are not preferred by the even-odd rule on the GWS.
[in,out]	assocIdx	A vector of 0-based indices into a list. On entry it tells which of the coo has which index (so coo.size() == assocIdx.size()), and on return it has eliminated the entries such that the return map has the equivalent information.
[in]	interact	If true triggers an interactive display of the assigned positions with gnuplot(1)
[in,out]	assocIdx	Keeps track which of the stars of the full star catalog went to which SE. On input assocIdx[p] is the index of the p'th star in coo in the full star catalog (where full means before the selection by the 1 and 3 arcmin rings).

Since: 2017-03-22; 2018-11-26 tolerate some LICS_STARCAT_GWSEO_FUZZY in the even-odd rule.

Author: R. J. Mathar

◆ brightest() [1/2]

int Lics::LicsStarcat::brightest ( ) const

◆ brightest() [2/2]

int Lics::LicsStarcat::brightest ( ) const

find brightest star in the list

Returns: the 0-based index of the star with the numerically smallest magnitude. A value of -1 is returned if the list is empty.

Since: 2017-01-18

◆ choose() [1/4]

std::vector< std::vector< short > > Lics::LicsStarcat::choose	(	const std::vector< std::vector< short > > &	selists,
		std::vector< int > &	keeplst
	)

staticprotected

Assemble all allowed combinations of assignments. The task is to figure out by readign the 2D table selists and a list of first (leading) indices of that list of admissable points, how this set of points can be assigned to the SE's without having a SE being used more than once.

Parameters

selists	Contains the list of SE indices s accessible by point p in selelists[p][..]=s.
keeplst	Contains a sublist of the first indices of p to be kept.

Returns: A 2D list C[c][p]. This means combination number c puts point number p at star enlarger number C[c][p] without multi-assignment. So all C[c][..] are distinct.

Since: 2017-03-27

Author: R. J. Mathar

◆ choose() [2/4]

static std::vector< std::vector<short> > Lics::LicsStarcat::choose	(	const std::vector< std::vector< short > > &	selists,
		std::vector< int > &	keeplst
	)

staticprotected

◆ choose() [3/4]

std::vector< std::vector< short > > Lics::LicsStarcat::choose	(	const std::vector< std::vector< short > > &	selists,
		std::vector< short >	presel,
		std::vector< int > &	keeplst
	)

staticprotected

Assemble all allowed combinations of assignments.

This combinatorial scan of the set of local point coordinates gathers all combinations of assigning the point set to a set of star enlargers. This admints only assignments where the associated star enlarger s can reach point p according to the local coordinate (travel range), and where no star enlarger must reach to two different points.

Parameters

[in]	selists[p][.]	shows for each point p to which star enlargers it can be assigned because it is reachable.
[in,out]	presel	The already selected star enlargers. This is a list of indices (of partial length less than cooN) of SE's already assigned by the earlier points. Minus-ones are used for skipped SE's.

Returns: A 2D list C[c][p]. This means combination number c puts point number p at star enlarger number C[c][p].

Since: 2017-03-27

Author: R. J. Mathar

◆ choose() [4/4]

static std::vector< std::vector<short> > Lics::LicsStarcat::choose	(	const std::vector< std::vector< short > > &	selists,
		std::vector< short >	presel,
		std::vector< int > &	keeplst
	)

staticprotected

◆ collides() [1/2]

bool Lics::LicsStarcat::collides	(	const Laos::LaosSeSet &	seSet,
		Nice::Point **	locCoo,
		std::vector< short >	Cc
	)

staticprotected

check whether some arms collide. The arms that are assigned to local coordinates and indexed by parameter Cc are augmented by the disabled arms at their configured positions. Then in a double loop over all the pairs of arm contours watch whether the contours intersect.

Parameters

seSet	All 8 or 12 SE arms with their travel ranges. The disabled arms here are inserted at their configure positions such that the always appear as potential collision objects, even though they are never part of the Cc index set.
coo	The set of poitns in the (global) focal plane coordinates.
locCoo	The set of points of in the arms' local cordinate systems.
Cc	The index set of the arms to be placed for this solution.

Returns: True if there are collisions between any pair of arms.

Since: 2017-03-31; 2018-11-22 Insert the arms of disabled star enlargers at their configured positions.

◆ collides() [2/2]

static bool Lics::LicsStarcat::collides	(	const Laos::LaosSeSet &	seSet,
		Nice::Point **	locCoo,
		std::vector< short >	Cc
	)

staticprotected

◆ fromNomad() [1/2]

void Lics::LicsStarcat::fromNomad	(	double	cntr[2],
		double	conrad,
		double	faint
	)

Fill the list of stars with an online call of the NOMAD catalogue. If the computer or internet are down, or the search criteria yield effectively no star, the resulting catalog will be empty.

Parameters

cntr	cntr[0,1] are RA and DEC in degrees.
conrad	Cone search radius (degrees)
faint	Magnitude limit

Since: 2017-07-07

◆ fromNomad() [2/2]

void Lics::LicsStarcat::fromNomad	(	double	cntr[2],
		double	conrad,
		double	faint
	)

◆ init() [1/2]

void Lics::LicsStarcat::init	(	const std::string &	ifnam,
		const std::string &	typ
	)

private

Define the catalogue by reading a LBTO ASCII or NOMAD catalogue.

Parameters

ifnam	The File stream of the ASCII file.
typ	Type of the ASCII file. Recognized are the 13-field "lbto" and the 17-field "nomad"

Since: 2017-01-18; 2018-04-14 Trim catalog lines before checking for empty lines.

◆ init() [2/2]

void Lics::LicsStarcat::init	(	const std::string &	ifnam,
		const std::string &	typ
	)

private

◆ kfpListToSE() [1/2]

Nice::SeqPoint Lics::LicsStarcat::kfpListToSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const double	pang,
		const double	mang,
		Nice::SeqPoint	kfpcoords,
		const std::string &	unit,
		double	mum2as,
		std::vector< int > &	assocIdx
	)

private

Convert KFP positions to SE Cartesian coordinates.

Parameters

	sdx	Indicates the side (SX or DX) of the SE.
	ghws	Selects either the GWS or the HWS. The difference is that GWS stars are filtered by the 1 to 3 arcmin ring of radii off the center. HWS stars are filtered by the 0 .. 1 arcmin distance off the center.
	pang	The effectively frozen parallactic angle, in radians.
	mang	The effectively frozen motor angle, in radians. Effectively frozen means the motor angle is measured at the the same time as the parallactic angle while derotating.
	kfpcoords	The list of focal plane coordinates from the IIF. These are not used by reference but with a full copy; the elimination of the stars according to the 1 arcmin and 3 arcmin criteria within this function does not effect the list of KFP coordinates of the caller.
	unit	Either um or mm to indicate microns or millimeters.
	mum2as	scale in the SE (GWS) or patrol camera (HWS) plane in units of microns per arcseconds.
[in,out]	assocIdx	On entry a list of indices telling the index of each kfpcoords[] in some other list. On exit a list of indices telling which of the points carries this index. The list is modified in this function to reflect which kfpcoords[] did not fit into the region selected by the annular mirror. For example: there were 3 elements in kfpcoords[0..2], and assocIdx[0..3] = [3,7,4] on entry, and on return there are only points for kfpcoords[0] and kfpcoords[1], then on rerutnr assoxIdx[0..1] = [3,7], where the middle one corresponding to kfpcoords[1] was erased. If that mapping was impossible (for example the kfpcoords and assocIdx lengths did not match), the assocIdx is empty on return to indicate that error.

Returns: A sequence of (x,y) coordinates, both in mum, for the Star Enlarger plane. This list does not contain coordinates for stars outside the 1 arcmin or 3 arcmin selection criterion for the GWS or HWS.

Todo:: eliminate the mum2as parameter by scaling the mm2as with 0.001

Since: 2017-06-26

Parameters

	sdx	Indicates the side (SX or DX) of the SE.
	ghws	Selects either the GWS or the HWS. The difference is that GWS stars are filtered by the 1 to 3 arcmin ring of radii off the center. HWS stars are filtered by the 0 .. 1 arcmin distance off the center.
	pang	The effectively frozen parallactic angle, in radians.
	mang	The effectively frozen motor angle, in radians. Effectively frozen means the motor angle is measured at the the same time as the parallactic angle while derotating.
	kfpcoords	The list of focal plane coordinates from the IIF. These are not used by reference but with a full copy; the elimination of the stars according to the 1 arcmin and 3 arcmin criteria within this function does not effect the list of KFP coordinates of the caller.
	unit	Either um or mm to indicate microns or millimeters.
	mum2as	scale in the SE (GWS) or patrol camera (HWS) plane in units of microns per arcseconds.
[in,out]	assocIdx	On entry a list of indices telling the index of each kfpcoords[] in some other list. On exit a list of indices telling which of the points carries this index. The list is modified in this function to reflect which kfpcoords[] did not fit into the region selected by the annular mirror. For example: there were 3 elements in kfpcoords[0..2], and assocIdx[0..3] = [3,7,4] on entry, and on return there are only points for kfpcoords[0] and kfpcoords[1], then on rerutnr assoxIdx[0..1] = [3,7], where the middle one corresponding to kfpcoords[1] was erased. If that mapping was impossible (for example the kfpcoords and assocIdx lengths did not match), the assocIdx is empty on return to indicate that error.

Returns: A sequence of (x,y) coordinates, both in mum, for the Star Enlarger plane. This list does not contain coordinates for stars outside the 1 arcmin or 3 arcmin selection criterion for the GWS or HWS.

Todo:: eliminate the mum2as parameter by scaling the mm2as with 0.001

Since: 2017-06-26

◆ kfpListToSE() [2/2]

Nice::SeqPoint Lics::LicsStarcat::kfpListToSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const double	pang,
		const double	mang,
		Nice::SeqPoint	kfpcoords,
		const std::string &	unit,
		double	mum2as,
		std::vector< int > &	assocIdx
	)

private

◆ mergePts() [1/2]

Lics::LicsStarcat Lics::LicsStarcat::mergePts	(	const Nice::SeqPoint &	pts,
		const std::vector< int > &	assocIdx,
		const Laos::LaosSeAOType &	ghws
	)		const

private

Create a star catalog with a list of 2D point coordinates merged into.

Parameters

[in]	pts
[in]	assocIdx
[in]	ghws

Since: 2018-04-25

◆ mergePts() [2/2]

LicsStarcat Lics::LicsStarcat::mergePts	(	const Nice::SeqPoint &	pts,
		const std::vector< int > &	asocIdx,
		const Laos::LaosSeAOType &	ghws
	)		const

private

◆ offsetSE() [1/2]

Nice::Point Lics::LicsStarcat::offsetSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		double	deltaRa,
		double	deltaDec
	)

static

Convert differential catalogue positions used with the offset to SE focal plane coordinates.

Parameters

sdx	Indicates the side (SX or DX) of the SE.
ghws	Either LINC_GWS or LINC_HWS. GWS selections will be limited to the 1 to 3 arcmin ring of radii off the center. HWS stars in the list will be limited to the 0 .. 1 arcmin distance off the center.
deltaRa	relative motion in right ascension. Radians, including the cos(delta) factor
deltaDec	relative motion in declination. Radians.

Returns: A differential vector (in microns) for the motion

Since: 2018-07-03

◆ offsetSE() [2/2]

static Nice::Point Lics::LicsStarcat::offsetSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		double	deltaRa,
		double	deltaDec
	)

static

◆ permuteSE() [1/2]

Nice::MapStringPoint Lics::LicsStarcat::permuteSE	(	const Nice::SeqPoint &	coo,
		const Laos::LaosSeSet &	seSet,
		Nice::Point **	locCoo,
		int	seN,
		const std::vector< std::vector< short > > &	selists,
		const std::vector< int > &	assocIdx
	)

protected

Permute the assignment of points to SE's to optimize placement.

Parameters

	coo	The list of points in the Fplane (global coordinates) to be assigned to star enlargers.
[in]	seSet	The transformation matrices and travel ranges for all 8 or 12 star enlargers
	locCoo	The local coordinates of all points in all star enlargers (steps). Negative y coordinates of locCoo[p][s] indicate that point number p cannot be reached by star enlarger s, 0<=s<seN, 0<=p<coo.size().
[in]	seN	Number of star enlargers. The upper limit of the fast (second) coordinate of locCoo.
[in]	selists	tells for each index in coo whether it can be reached with SE indexed in seN. E.g. selists[3] = [3,5] says the 4th (0-based) coordinate coo[3] can be reached by SE 4 and 6 (1-based).
[in,out]	assocIdx	Contains on input the information that coo[i] refers to star number assocIdx[i]. Contains on output a (possibly smaller) vector that the map point [i] refers to star number assocIdx[i].

Returns: A list names SExx mapped to SE focal plane coordinates. The xx start with either NN for non-assigned stars or an index 01-12, and end with the star name as used in the first field of the star catalog.

Since: 2017-03-27

Author: R. J. Mathar

◆ permuteSE() [2/2]

Nice::MapStringPoint Lics::LicsStarcat::permuteSE	(	const Nice::SeqPoint &	coo,
		const Laos::LaosSeSet &	seSet,
		Nice::Point **	locCoo,
		int	seN,
		const std::vector< std::vector< short > > &	selists,
		const std::vector< int > &	assocIdx
	)

protected

◆ plotMap() [1/2]

static void Lics::LicsStarcat::plotMap	(	const Nice::MapStringPoint &	m,
		const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Laos::LaosSeSet &	seSet
	)

staticprotected

◆ plotMap() [2/2]

void Lics::LicsStarcat::plotMap	(	const Nice::MapStringPoint &	m,
		const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Laos::LaosSeSet &	seSet
	)

staticprotected

plot the assignment of SE over the focal plane for a visual feedback with Gnuplot.

Parameters

m	The map that assigns focal plane coordinates (microns) to SE's
sdx	The flag that says SX or DX.
gws	The flag that says GWS or HWS.
coo	The global focal plane coordinates of all stars/points.
seSet	The transformation matrices and travel ranges for all star enlargers

Since: 2017-03-27; 2017-06-05 create TMPDIR if not yet defined.

Author: R. J. Mathar

◆ precess() [1/4]

Lics::LicsStarcat Lics::LicsStarcat::precess ( ) const

Correct equatorial coordinates for precession.

Returns: a new catalogue with all stars moved from their epoch to the equator of dat.

Since: 2017-03-01

◆ precess() [2/4]

LicsStarcat Lics::LicsStarcat::precess ( ) const

◆ precess() [3/4]

Lics::LicsStarcat Lics::LicsStarcat::precess ( const Nice::Date & t ) const

Correct for precession.

Parameters

t	The time when the motion ought to be finished.

Returns: The catalogue in which all stars are moved to the date t.

Since: 2017-03-01

◆ precess() [4/4]

LicsStarcat Lics::LicsStarcat::precess ( const Nice::Date & t ) const

◆ presetToSE() [1/2]

static LicsStarcat Lics::LicsStarcat::presetToSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws
	)

static

◆ presetToSE() [2/2]

Lics::LicsStarcat Lics::LicsStarcat::presetToSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws
	)

static

Convert catalogue positions used with the preset to SE focal plane coordinates.

This is basically a wrapper function for the python interface with minimalistic parameters, which accumulates the other interfaces by asking the derotator for the parallactic and motor angles at the time of the call. The difference to the toSE() function is that this here asks the IIF proxy (via the derotator) to use the star catalog that was stored during the recent preset within the proxy. (This may fail for the reasons explained in the licsStarcat info pages.)

Parameters

sdx	Indicates the side (SX or DX) of the SE.
ghws	Either LINC_GWS or LINC_HWS. GWS selections will be limited to the 1 to 3 arcmin ring of radii off the center. HWS stars in the list will be limited to the 0 .. 1 arcmin distance off the center.

Returns: A subcatalog for the Star Enlarger focal plane. The focal plane coordinates are stored in the fpCoord members of the stars. Note that the preset has changed all names to 'SIDEREAL', so these are not the original ones submitted by the observer.

Since: 2018-04-25

Warning: Due to the singleton strategy of ICE one cannot call presetToSE and some of the other toSE() in a single process.

◆ propMot() [1/4]

Lics::LicsStarcat Lics::LicsStarcat::propMot ( ) const

Apply all proper motions.

Returns: a new catalogue with all stars moved from their epoch to now.

Since: 2017-02-28

◆ propMot() [2/4]

LicsStarcat Lics::LicsStarcat::propMot ( ) const

◆ propMot() [3/4]

Lics::LicsStarcat Lics::LicsStarcat::propMot ( const Nice::Date & t ) const

Apply the proper motions.

Parameters

t	The time to which the motion ought to be promoted.

Returns: The catalogue in which all stars are moved to the date t. superseeded by precess()

Since: 2017-02-28

◆ propMot() [4/4]

LicsStarcat Lics::LicsStarcat::propMot ( const Nice::Date & t ) const

◆ roi() [1/4]

lbto::SeqPos2 Lics::LicsStarcat::roi	(	const double	coord1,
		const double	coord2,
		const double	dist
	)		const

◆ roi() [2/4]

lbto::SeqPos2 Lics::LicsStarcat::roi	(	const double	coord1,
		const double	coord2,
		const double	dist
	)		const

reduce the star set to a neighbourhood (region of interest) of some coordinate.

Parameters

coord1	RA of the center of interest (radian)
coord2	DEC of the center of interest (radian)
dist	Maximum distance to the (ra,dec) (radian). Effectively a radius working as a filter criterion on this set.

Returns: A star sub-catalogue where all members farther than the distance from the center are removed. Note that this contains references to the catalogue entries, not copies!

Since: 2017-01-18

◆ roi() [3/4]

lbto::SeqPos2 Lics::LicsStarcat::roi	(	const lbto::position2 &	cntr,
		const double	dist
	)		const

reduce the star set to a neighbourhood (region of interest) of some coordinate.

Parameters

cntr	The star that defines the position of center of the search radius
dist	Maximum distance to the (ra,dec) (radian)

Returns: A star catalogue where all members farther than the distance from the center are removed.

Since: 2017-01-18

◆ roi() [4/4]

lbto::SeqPos2 Lics::LicsStarcat::roi	(	const lbto::position2 &	cntr,
		const double	dist
	)		const

◆ seGUI() [1/2]

static void Lics::LicsStarcat::seGUI	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::MapStringPoint &	Fmap
	)

static

◆ seGUI() [2/2]

void Lics::LicsStarcat::seGUI	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::MapStringPoint &	Fmap
	)

static

Submit a list of positions to the SE GUI and/or move the SE arms.

This runs the python script licsSEPreset.py in a sub-process. And this sub-process in princple tries to move the SE arms to that position. Note: because Com-3 showed that the collision detection of the software is not safe, the action of actually moving the arms in licsSEPreset.py has been disabled for now.

Parameters

[in]	sdx	Indicates the side (SX or DX) of the SE.
[in]	ghws	Either LINC_GWS or LINC_HWS. for LINC_NOAO and LINC_PCAM this does nothing.
[in]	Fmap	The proposed positions. Microns in the global focal plane 'F' system.

Since: 2017-07-03; 2018-02-15 don't do anything if star list is empty.

◆ skymake() [1/2]

void Lics::LicsStarcat::skymake	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ao,
		std::string &	ffile,
		Nice::Date &	t,
		const float	asperpix = `0.4`
	)

Generate a ds9 popup GUI with a skymaker mockup view of the sky.

Parameters

[in]	sdx	Indicating SX or DX. This has enormous impact on the GWS motor angle queries.
[in]	ao	Indicating GWS or HWS. Note that the angles used here to rotate the images for the HWS case are incorrect. So this function is only used for test purposes from within licsStarcat.
[in]	ffile	Permanent name of the mockup FITS file. If this is empty, no FITS file will be preserved, and the temporary file be removed when the operator closes the window.
[in]	asperpix	Arcseconds per pixel in the mockup image. The GWS have size of roughly 300x300 thousand microns. We are interested in SE resolutions/prediction of roughly 0.5 mm, so an image size of the order of 600x600 px is appropriate. As 600 um =1", this gives roughly 0.8" for a asperpix.
[in]	t	The time of reference to estimate parallactic angles etc.

Since: 2017-07-10; 2017-08-02 use an additional argument ao

◆ skymake() [2/2]

void Lics::LicsStarcat::skymake	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ao,
		std::string &	ffile,
		Nice::Date &	t,
		const float	asperpix = `0.4`
	)

◆ starNo() [1/2]

Lics::LicsStar Lics::LicsStarcat::starNo ( int idx ) const

◆ starNo() [2/2]

Lics::LicsStar Lics::LicsStarcat::starNo ( int idx ) const

Return the i-th star.

Returns: the star at the 0-based index. This is an essentially superfluous function to support the boost python-interface.

Since: 2018-04-19

◆ tmpdir() [1/2]

std::string Lics::LicsStarcat::tmpdir ( const std::string & fname )

staticprivate

create TMPDIR if it does not yet exist

Parameters

fname The file to be created relativ to the TMPDIR as a temporary file.

Returns: The full path name of the file.

Since: 2017-06-04

◆ tmpdir() [2/2]

static std::string Lics::LicsStarcat::tmpdir ( const std::string & fnam )

staticprivate

◆ toLbtoFmt() [1/4]

std::string Lics::LicsStarcat::toLbtoFmt	(	const lbto::position2 &	cntr,
		const Nice::Date &	t,
		const double	motang[2],
		int	verb,
		bool	batch,
		const bool	ask4Kfp,
		const double	dist = `0.001`
	)

Return a sequence of lines equivalent to the small catalogues of LBTO. This is called (by overloading) from licsStarcat.cc . Inside this function the predicted star positions are forwarded to the SE GUI.

Parameters

	cntr	The star that defines the position of center of the search radius This takes the role of the main target star on the infrared camera.
	t	The time to which the coordinate transformations apply.
	motang	The angles of the motor (K-mirror for HWS, bearing for the GWS), in radians.
	verb	Verbosity parameter for the SE x-y coordinates output. If verb & LBCS_LBCSSTARCAT_REPRINT is nonzero, the SE is replicated with distances etc. If verb & LBCS_LBCSSTARCAT_SE is nonzero, SE coordinates are printed. If verb & LBCS_LBCSSTARCAT_SX is nonzero, SE SX coordinates are printed. If verb & LBCS_LBCSSTARCAT_DX is nonzero, SE DX coordinates are printed. If verb & LBCS_LBCSSTARCAT_HWS is nonzero, SE HWS coordinates are printed. If verb & LBCS_LBCSSTARCAT_GWS is nonzero, SE GWS coordinates are printed.
	batch	If true avoid popping up any interactive methods, GUIS and so on.
	dist	Maximum distance to the (ra,dec) (radian) The default value of 0.001 rad equals 3.5 arcmin and is an upper quasi-limit assuming that the Linc-Nirvana patrol cameras have a FOV (diameter) of 6 arcmin, which is a radius of 3 arcmin. So just in case the brightest star is in the corner, 3.5 arcmin is an adapted standard.
[in]	ask4Kfp	If true, get KFP coordinates. Ask the dertotator service also for the KFP coordinates of this star catalogue from the IIF.

Returns: A star catalogue where all members farther than the distance from the center are removed. The brightest star is listed first, and the others follow one per line as shown in http://wiki.lbto.org/bin/view/Commissioning/LBTOStarCatalogs

Since: 2017-01-18

Todo:: Implement the sort along distance to primary

Parameters

	cntr	The star that defines the position of center of the search radius This takes the role of the main target star on the infrared camera.
	t	The time to which the coordinate transformations apply.
	motang	The angles of the motor (K-mirror for HWS, bearing for the GWS), in radians.
	verb	Verbosity parameter for the SE x-y coordinates output. If verb & LBCS_LBCSSTARCAT_REPRINT is nonzero, the SE is replicated with distances etc. If verb & LBCS_LBCSSTARCAT_SE is nonzero, SE coordinates are printed. If verb & LBCS_LBCSSTARCAT_SX is nonzero, SE SX coordinates are printed. If verb & LBCS_LBCSSTARCAT_DX is nonzero, SE DX coordinates are printed. If verb & LBCS_LBCSSTARCAT_HWS is nonzero, SE HWS coordinates are printed. If verb & LBCS_LBCSSTARCAT_GWS is nonzero, SE GWS coordinates are printed.
	batch	If true avoid popping up any interactive methods, GUIS and so on.
	dist	Maximum distance to the (ra,dec) (radian) The default value of 0.001 rad equals 3.5 arcmin and is an upper quasi-limit assuming that the Linc-Nirvana patrol cameras have a FOV (diameter) of 6 arcmin, which is a radius of 3 arcmin. So just in case the brightest star is in the corner, 3.5 arcmin is an adapted standard.
[in]	ask4Kfp	If true, get KFP coordinates. Ask the dertotator service also for the KFP coordinates of this star catalogue from the IIF.

Returns: A star catalogue where all members farther than the distance from the center are removed. The brightest star is listed first, and the others follow one per line as shown in http://wiki.lbto.org/bin/view/Commissioning/LBTOStarCatalogs

Since: 2017-01-18

Todo:: Implement the sort along distance to primary

◆ toLbtoFmt() [2/4]

std::string Lics::LicsStarcat::toLbtoFmt	(	const lbto::position2 &	cntr,
		const Nice::Date &	t,
		const double	motang[2],
		int	verb,
		bool	batch,
		const bool	ask4Kfp,
		const double	dist = `0.001`
	)

◆ toLbtoFmt() [3/4]

std::string Lics::LicsStarcat::toLbtoFmt	(	const Nice::Date &	t,
		const double	motang[2],
		int	verb,
		bool	batch,
		const bool	ask4Kfp
	)

◆ toLbtoFmt() [4/4]

std::string Lics::LicsStarcat::toLbtoFmt	(	const Nice::Date &	t,
		const double	motang[2],
		int	verb,
		bool	batch,
		const bool	ask4Kfp
	)

Return a sequence of lines equivalent to the small catalogues of LBTO. This is the entry point taken by licsStarcat.cc .

Parameters

[in]	t	The time at which the motor angles are valid.
	motang	The two motor angles. The k-mirror angle in motang[0], the GWS bearing in motang[1]
	verb	Verbosity parameter for the SE x-y coordinates output.
	batch	If true avoid popping up any interactive means, GUIS and so on.
[in]	ask4Kfp	If true, get KFP coordinates. Ask the dertotator service also for the KFP coordinates of this star catalogue from the IIF.

Returns: The star catalogue in the LBTO format.

Since: 2017-01-20

◆ toLbtoString() [1/2]

std::string Lics::LicsStarcat::toLbtoString	(	const lbto::position2 &	cntr,
		const Nice::Date &	t,
		const double	dist
	)

Return a sequence of lines equivalent to the small catalogues of LBTO. This essentially applies proper motion and precession to a local copy of the stars (but leaves the stars in this catalog at their equinox/epoch).

Parameters

cntr	The star that defines the position of center of the search radius
t	The time to which the coordinate transformations apply.
dist	The maximum distance for keeping stars, relative to cntr, in radians .

Returns: A star catalogue where all members farther than the distance from the center are removed. The center star is listed first, and the others follow one per line sorted by distance from the center as shown in http://wiki.lbto.org/bin/view/Commissioning/LBTOStarCatalogs

Since: 2017-01-18

◆ toLbtoString() [2/2]

std::string Lics::LicsStarcat::toLbtoString	(	const lbto::position2 &	cntr,
		const Nice::Date &	t,
		const double	dist
	)

◆ toSE() [1/6]

Lics::LicsStarcat Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws
	)

Convert catalogue positions to SE focal plane Cartesian coordinates.

This is basically a wrapper function for the python interface with minimalistic parameters, which accumulates the other interfaces by asking the derotator for the parallactic and motor angles at the time of the call.

Parameters

sdx	Indicates the side (SX or DX) of the SE.
ghws	Either LINC_GWS or LINC_HWS. GWS selections will be limited to the 1 to 3 arcmin ring of radii off the center. HWS stars in the list will be limited to the 0 .. 1 arcmin distance off the center.

Returns: A subcatalog for the Star Enlarger focal plane. The focal plane coordinates are stored in the fpCoord members of the stars.

Since: 2018-04-24

◆ toSE() [2/6]

LicsStarcat Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws
	)

◆ toSE() [3/6]

Nice::SeqPoint Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::Date &	t,
		double &	pang,
		double &	mang,
		const std::string &	unit,
		double	mum2as,
		const bool	ask4Kfp,
		Lics::LicsAffTrans &	wcs,
		std::vector< int > &	assocIdx
	)

protected

◆ toSE() [4/6]

Nice::SeqPoint Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const Nice::Date &	t,
		double &	pang,
		double &	mang,
		const std::string &	unit,
		double	mum2as,
		const bool	ask4Kfp,
		Lics::LicsAffTrans &	wcs,
		std::vector< int > &	assocIdx
	)

protected

Convert catalogue positions to SE focal plane Cartesian coordinates.

The routine applies proper motions to move from catalogue dates to the time t. The derotator service is asked for the correlated parallactic angle and motor angle (at a time when the derotator was active or started).

Parameters

	sdx	Indicates the side (SX or DX) of the SE.
	ghws	Either LINC_GWS or LINC_HWS. GWS selections will be limited to the 1 to 3 arcmin ring of radii off the center. HWS stars in the list will be limited to the 0 .. 1 arcmin distance off the center.
	t	The time to which proper motions and parallactic angle should refer to.
[in,out]	pang	The parallactic angles at the start of the derotation, in radians.
[in,out]	mang	The motor angles at the start of the derotation, in radians.
	unit	Either um or mm to indicate microns or millimeters.
	mum2as	The scale in units of microns per arcsecond.
[in]	ask4Kfp	If true, get KFP coordinates. Ask the dertotator service also for the KFP coordinates of this star catalogue from the IIF.
[out]	wcs	The affine transformation that converts DEC/RA to SE positions. Here DEC is the [0] and RA the [1] part of the input vector in radians. This does not include precession, and should be applied to precessed star coordinates, or otherwise be multiplied by LicsStar::diffPrecess(). The output of the transformation is the x and y coordinate in the units of the unit parameter.
[in,out]	assocIdx	The i'th component of this vectors says which 0-based list in the star catalog the i'th point refers to. May be empty on output if the matching algorithm failed for the reasons indicated in the source code.

Returns: A sequence of (x,y) coordinates, both in mum, for the Star Enlarger focal plane.

Since: 2017-03-01; 2018-02-15 keep track of which point refers to which star

◆ toSE() [5/6]

Nice::SeqPoint Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const double	pang,
		const double	mang,
		Nice::SeqPoint	kfpcoords,
		const std::string &	unit,
		double	mum2as,
		Lics::LicsAffTrans &	wcs,
		std::vector< int > &	assocIdx
	)

protected

Convert catalogue positions to SE Cartesian coordinates.

Subselect either the 1 arcmin or the 1-to-3 arcmin set of stars. Then call for each of the remaining stars in the list either the routine that maps it's equatorial coordinates to the WS plane, or (if available) map the KFP coordinates to the WS plane.

The routine assumes that the current catalogue is already precessed to the equator of date.

Parameters

	sdx	Indicates the side (SX or DX) of the SE.
	ghws	Selects either the GWS or the HWS. The difference is that GWS stars are filted by the 1 to 3 arcmin ring of radii off the center. HWS stars are filtered by the 0 .. 1 arcmin distance off the center.
	pang	The effectively frozen parallactic angle, in radians.
	mang	The effectively frozen motor angles, in radians. Effectively frozen means the motor angle is measured at the the same time as the parallactic angle while derotating.
	kfpcoords	The list of focal plane coordinates from the IIF. If empty, this list is ignored. Otherwise it overwrites the internal mapping onto a tangential plane on the sky.
	unit	Either um or mm to indicate microns or millimeters.
	mum2as	scale in the focal plane in units of micros per arcseconds.
[out]	wcs	The affine transformation that converts DEC/RA to SE positions. Here DEC is the [0] and RA the [1] part of the input vector in radians. This is in J2000, and the wcs returned contains no differential rotation to the current date. The output of the transformation is the x and y coordinate in the plane in the millimeter or microns indicated by the unit parameter.
[in,out]	assocIdx	On entry a list of kfpcoords.size() or size() elements that maps kernel focal plane coordinates or this stars list to some "original" star catalogue. On return the same list reduced to the points that are returned, which means, if some points are absent because the kfpcoord[] or at(.) was nto matched, the associated element in assocIdx[] is removed. If the size of assocIdx was incorrect on entry, it will be zero on return to indicate a mismatch.

Returns: A sequence of (x,y) coordinates, both in mum, for the Star Enlarger plane.

Warning: This may be incorrect (due to additional image flips) for the HWS.

Since: 2017-03-01

◆ toSE() [6/6]

Nice::SeqPoint Lics::LicsStarcat::toSE	(	const Lics::LicsIIFSide &	sdx,
		const Laos::LaosSeAOType &	ghws,
		const double	pang,
		const double	mang,
		Nice::SeqPoint	kfpcoords,
		const std::string &	unit,
		double	mum2as,
		Lics::LicsAffTrans &	wcs,
		std::vector< int > &	assocIdx
	)

protected

◆ toXephem() [1/2]

std::string Lics::LicsStarcat::toXephem ( ) const

◆ toXephem() [2/2]

std::string Lics::LicsStarcat::toXephem ( ) const

Return a sequence of lines equivalent to the Xephem catalog format.

Returns: A star catalogue to be redirected into a *.eph file.

Since: 2017-12-07

The documentation for this class was generated from the following files:

ln/lics/src/starcat/LicsStarcat.h
ln/lics/src/starcat/LicsStarcat.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Member Functions

Static Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ LicsStarcat() [1/8]

◆ LicsStarcat() [2/8]

◆ LicsStarcat() [3/8]

◆ LicsStarcat() [4/8]

◆ LicsStarcat() [5/8]

◆ LicsStarcat() [6/8]

◆ LicsStarcat() [7/8]

◆ LicsStarcat() [8/8]

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ aladin() [1/2]

◆ aladin() [2/2]

◆ assignSE() [1/2]

◆ assignSE() [2/2]

◆ brightest() [1/2]

◆ brightest() [2/2]

◆ choose() [1/4]

◆ choose() [2/4]

◆ choose() [3/4]

◆ choose() [4/4]

◆ collides() [1/2]

◆ collides() [2/2]

◆ fromNomad() [1/2]

◆ fromNomad() [2/2]

◆ init() [1/2]

◆ init() [2/2]

◆ kfpListToSE() [1/2]

◆ kfpListToSE() [2/2]

◆ mergePts() [1/2]

◆ mergePts() [2/2]

◆ offsetSE() [1/2]

◆ offsetSE() [2/2]

◆ permuteSE() [1/2]

◆ permuteSE() [2/2]

◆ plotMap() [1/2]

◆ plotMap() [2/2]

◆ precess() [1/4]

◆ precess() [2/4]

◆ precess() [3/4]

◆ precess() [4/4]

◆ presetToSE() [1/2]

◆ presetToSE() [2/2]

◆ propMot() [1/4]

◆ propMot() [2/4]

◆ propMot() [3/4]

◆ propMot() [4/4]

◆ roi() [1/4]

◆ roi() [2/4]

◆ roi() [3/4]

◆ roi() [4/4]

◆ seGUI() [1/2]

◆ seGUI() [2/2]

◆ skymake() [1/2]

◆ skymake() [2/2]

◆ starNo() [1/2]

◆ starNo() [2/2]

◆ tmpdir() [1/2]

◆ tmpdir() [2/2]

◆ toLbtoFmt() [1/4]

◆ toLbtoFmt() [2/4]

◆ toLbtoFmt() [3/4]

◆ toLbtoFmt() [4/4]

◆ toLbtoString() [1/2]

◆ toLbtoString() [2/2]

◆ toSE() [1/6]

◆ toSE() [2/6]

◆ toSE() [3/6]

◆ toSE() [4/6]

◆ toSE() [5/6]

◆ toSE() [6/6]

◆ toXephem() [1/2]
