This is the base class of the MPIA in-house electronic cards with the core commands. More...

#include <Card.h>

Inheritance diagram for Basda::MPIACoreCard:

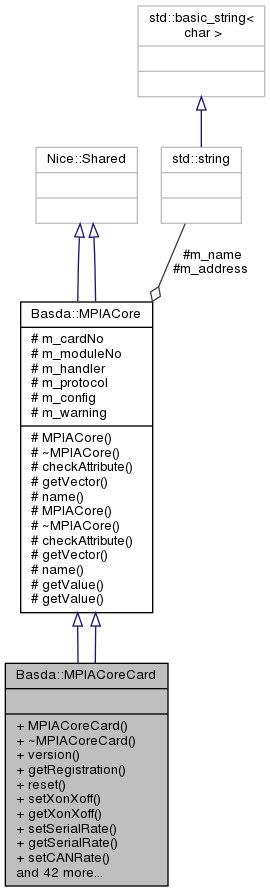

Collaboration diagram for Basda::MPIACoreCard:

Public Member Functions
	MPIACoreCard (std::string _name, Nice::JointPtr _config, Basda::MPIACoreProtocolPtr _protocol)
	Constructor. More...

	~MPIACoreCard ()
	Destructor. More...

std::string	version ()
	The methods returns the current version string of the MPIA in-house electronic. More...

std::vector< unsigned int >	getRegistration ()
	The methods returns all registered module and card that are registered at the MPIA in-house electronic. More...

void	reset ()
	Resets the MPIA in-house electronic software and hardware. More...

void	setXonXoff (const ValueSwitch::Constant _enable)
	Enables/disables the XOnXOff protocol. More...

bool	getXonXoff ()
	Returns the status of the XOnXOff protocol. More...

void	setSerialRate (const ValueSerialRate::Constant _baudRate)
	Sets the baud rate of the serial interface. More...

unsigned int	getSerialRate ()
	Returns the current baud rate. More...

void	setCANRate (const ValueCanRate::Constant _canRate)
	Sets the CAN rate of the CAN bus. More...

unsigned int	getCANRate ()
	Returns the current CAN rate. More...

void	setEventFlag (const ValueSwitch::Constant _eventMode)
	Sets the event message flag. More...

bool	getEventFlag ()
	Returns the current event message flags. More...

void	setInfoFlag (const ValueSwitch::Constant _infoMode)
	Sets the event message flag. More...

bool	getInfoFlag ()
	Returns the current event message flags. More...

void	setIPAddress (const std::string _ip)
	Sets the IP address of the MPIA in-house electronic. More...

std::string	getIPAddress ()
	Returns the current IP address. More...

void	setGateAddress (const std::string _gate)
	Sets the gate address of the MPIA in-house electronic. More...

std::string	getGateAddress ()
	Returns the current gate address. More...

void	setMaskAddress (const std::string _mask)
	Sets the mask address of the MPIA in-house electronic. More...

std::string	getMaskAddress ()
	Returns the current mask address. More...

void	setLinkTimeout (const unsigned int _timeout)
	Sets the Ethernet connection timeout. More...

int	getLinkTimeout ()
	Returns the Ethernet connection timeout. More...

void	waitForEvent ()
	Waits until an event is received in a certain time (timeout). More...

std::string	getFatalError ()
	Returns the fatal error message. More...

void	resetFatalError ()
	Resets the fatal error. More...

	MPIACoreCard (std::string _name, Nice::JointPtr _config, Basda::MPIACoreProtocolPtr _protocol)
	Constructor. More...

	~MPIACoreCard ()
	Destructor. More...

std::string	version ()
	The methods returns the current version string of the MPIA in-house electronic. More...

std::vector< unsigned int >	getRegistration ()
	The methods returns all registered module and card that are registered at the MPIA in-house electronic. More...

void	reset ()
	Resets the MPIA in-house electronic software and hardware. More...

void	setXonXoff (const ValueSwitch::Constant _enable)
	Enables/disables the XOnXOff protocol. More...

bool	getXonXoff ()
	Returns the status of the XOnXOff protocol. More...

void	setSerialRate (const ValueSerialRate::Constant _baudRate)
	Sets the baud rate of the serial interface. More...

unsigned int	getSerialRate ()
	Returns the current baud rate. More...

void	setCANRate (const ValueCanRate::Constant _canRate)
	Sets the CAN rate of the CAN bus. More...

unsigned int	getCANRate ()
	Returns the current CAN rate. More...

void	setEventFlag (const ValueSwitch::Constant _eventMode)
	Sets the event message flag. More...

bool	getEventFlag ()
	Returns the current event message flags. More...

void	setInfoFlag (const ValueSwitch::Constant _infoMode)
	Sets the event message flag. More...

bool	getInfoFlag ()
	Returns the current event message flags. More...

void	setIPAddress (const std::string _ip)
	Sets the IP address of the MPIA in-house electronic. More...

std::string	getIPAddress ()
	Returns the current IP address. More...

void	setGateAddress (const std::string _gate)
	Sets the gate address of the MPIA in-house electronic. More...

std::string	getGateAddress ()
	Returns the current gate address. More...

void	setMaskAddress (const std::string _mask)
	Sets the mask address of the MPIA in-house electronic. More...

std::string	getMaskAddress ()
	Returns the current mask address. More...

void	setLinkTimeout (const unsigned int _timeout)
	Sets the Ethernet connection timeout. More...

int	getLinkTimeout ()
	Returns the Ethernet connection timeout. More...

void	waitForEvent ()
	Waits until an event is received in a certain time (timeout). More...

std::string	getFatalError ()
	Returns the fatal error message. More...

void	resetFatalError ()
	Resets the fatal error. More...

Additional Inherited Members
Protected Member Functions inherited from Basda::MPIACore
	MPIACore (std::string _name, Nice::JointPtr _config, const MPIACoreProtocolPtr _protocol)

	~MPIACore ()

template<typename Type >
Type	checkAttribute (const std::string &_node, const std::string &_attributeName, const Type &_default)

template<typename RT >
std::vector< RT >	getVector (const std::string &_str)
	This is a generic method to convert a data string to a vector. More...

std::string	name ()

	MPIACore (std::string _name, Nice::JointPtr _config, const MPIACoreProtocolPtr _protocol)

	~MPIACore ()

template<typename Type >
Type	checkAttribute (const std::string &_node, const std::string &_attributeName, const Type &_default)

template<typename RT >
std::vector< RT >	getVector (const std::string &_str)
	This is a generic method to convert a data string to a vector. More...

std::string	name ()

Static Protected Member Functions inherited from Basda::MPIACore
template<typename RT >
static RT	getValue (const std::string &_str)
	This is a generic method to convert a data string to a number. More...

template<typename RT >
static RT	getValue (const std::string &_str)
	This is a generic method to convert a data string to a number. More...

Protected Attributes inherited from Basda::MPIACore
std::string	m_name

std::string	m_address
	member of the connection address More...

unsigned int	m_cardNo
	member of the card number More...

unsigned int	m_moduleNo
	member of the module number More...

HandlerPtr	m_handler

MPIACoreProtocolPtr	m_protocol
	member of the protocol to communicate with the MPIA in-house electronic. More...

Nice::JointPtr	m_config
	member of the root of the configuration tree More...

bool	m_warning

Detailed Description

This is the base class of the MPIA in-house electronic cards with the core commands.

The MPIA electronic rack is a generic framework that supports different insertion cards. These insertion cards are backplates for the on-board modules and provide general functionalities as well as keep the general configuration like the network settings. This class represents the generic MPIA in-house electronic card with the functionalities that are supported by all MPIA in-house electronic cards. It has to extend with the specific MPIA in-house electronic card functionalities.

Author: Frank Kittmann

Version: 09.06.16

Date: 2009.06.16

See also: Basda::MPIACore; Basda::MPIACoreCard

Constructor & Destructor Documentation

◆ MPIACoreCard() [1/2]

Basda::MPIACoreCard::MPIACoreCard	(	std::string	_name,
		Nice::JointPtr	_config,
		Basda::MPIACoreProtocolPtr	_protocol
	)

Constructor.

This constructor register itself at the protocol and reserve the MPIA in-house electronic card. It enables the event mode and switch the info mode off. Only one card object will be created for each MPIA in-house electronic card.

◆ ~MPIACoreCard() [1/2]

Basda::MPIACoreCard::~MPIACoreCard ( )

Destructor.

◆ MPIACoreCard() [2/2]

Basda::MPIACoreCard::MPIACoreCard	(	std::string	_name,
		Nice::JointPtr	_config,
		Basda::MPIACoreProtocolPtr	_protocol
	)

Constructor.

This constructor register itself at the protocol and reserve the MPIA in-house electronic card. It enables the event mode and switch the info mode off. Only one card object will be created for each MPIA in-house electronic card.

◆ ~MPIACoreCard() [2/2]

Basda::MPIACoreCard::~MPIACoreCard ( )

Destructor.

Member Function Documentation

◆ getCANRate() [1/2]

unsigned int Basda::MPIACoreCard::getCANRate ( )

Returns the current CAN rate.

The indexes of the baud rates are

0 = 125000 baud
1 = 250000 baud
2 = 500000 baud
3 = 800000 baud
4 = 1000000 baud

Returns: the index of the baud rate of the CAN bus

◆ getCANRate() [2/2]

unsigned int Basda::MPIACoreCard::getCANRate ( )

Returns the current CAN rate.

The indexes of the baud rates are

0 = 125000 baud
1 = 250000 baud
2 = 500000 baud
3 = 800000 baud
4 = 1000000 baud

Returns: the index of the baud rate of the CAN bus

◆ getEventFlag() [1/2]

bool Basda::MPIACoreCard::getEventFlag ( )

Returns the current event message flags.

Returns: the status of the event message flag

◆ getEventFlag() [2/2]

bool Basda::MPIACoreCard::getEventFlag ( )

Returns the current event message flags.

Returns: the status of the event message flag

◆ getFatalError() [1/2]

std::string Basda::MPIACoreCard::getFatalError ( )

Returns the fatal error message.

If a fatal error occur the MoCon firmware is executing a software reset immediately. An additional message will be added to the MoCon version string. After that reset all firmware commands over 100 are blocked until the error will be reset with the command resetFatalError()

Returns: the fatal error message

See also: resetFatalError

◆ getFatalError() [2/2]

std::string Basda::MPIACoreCard::getFatalError ( )

Returns the fatal error message.

If a fatal error occur the MoCon firmware is executing a software reset immediately. An additional message will be added to the MoCon version string. After that reset all firmware commands over 100 are blocked until the error will be reset with the command resetFatalError()

Returns: the fatal error message

See also: resetFatalError

◆ getGateAddress() [1/2]

std::string Basda::MPIACoreCard::getGateAddress ( )

Returns the current gate address.

Returns: the current gate address

◆ getGateAddress() [2/2]

std::string Basda::MPIACoreCard::getGateAddress ( )

Returns the current gate address.

Returns: the current gate address

◆ getInfoFlag() [1/2]

bool Basda::MPIACoreCard::getInfoFlag ( )

Returns the current event message flags.

Returns: the status of the info message flag

◆ getInfoFlag() [2/2]

bool Basda::MPIACoreCard::getInfoFlag ( )

Returns the current event message flags.

Returns: the status of the info message flag

◆ getIPAddress() [1/2]

std::string Basda::MPIACoreCard::getIPAddress ( )

Returns the current IP address.

Returns: the current IP address

◆ getIPAddress() [2/2]

std::string Basda::MPIACoreCard::getIPAddress ( )

Returns the current IP address.

Returns: the current IP address

◆ getLinkTimeout() [1/2]

int Basda::MPIACoreCard::getLinkTimeout ( )

Returns the Ethernet connection timeout.

Returns: the Ethernet connection timeout

◆ getLinkTimeout() [2/2]

int Basda::MPIACoreCard::getLinkTimeout ( )

Returns the Ethernet connection timeout.

Returns: the Ethernet connection timeout

◆ getMaskAddress() [1/2]

std::string Basda::MPIACoreCard::getMaskAddress ( )

Returns the current mask address.

Returns: the current gate address

◆ getMaskAddress() [2/2]

std::string Basda::MPIACoreCard::getMaskAddress ( )

Returns the current mask address.

Returns: the current gate address

◆ getRegistration() [1/2]

std::vector< unsigned int > Basda::MPIACoreCard::getRegistration ( )

The methods returns all registered module and card that are registered at the MPIA in-house electronic.

Returns: the vector with the registered module and card numbers

◆ getRegistration() [2/2]

std::vector<unsigned int> Basda::MPIACoreCard::getRegistration ( )

The methods returns all registered module and card that are registered at the MPIA in-house electronic.

Returns: the vector with the registered module and card numbers

◆ getSerialRate() [1/2]

unsigned int Basda::MPIACoreCard::getSerialRate ( )

Returns the current baud rate.

The indexes of the baud rates are

0 = 9600 baud
1 = 19200 baud
2 = 38400 baud
3 = 57600 baud
4 = 115200 baud

Returns: the index of the baud rate of the RS232 interface

◆ getSerialRate() [2/2]

unsigned int Basda::MPIACoreCard::getSerialRate ( )

Returns the current baud rate.

The indexes of the baud rates are

0 = 9600 baud
1 = 19200 baud
2 = 38400 baud
3 = 57600 baud
4 = 115200 baud

Returns: the index of the baud rate of the RS232 interface

◆ getXonXoff() [1/2]

bool Basda::MPIACoreCard::getXonXoff ( )

Returns the status of the XOnXOff protocol.

Returns: true if XOnXOff is enabled, false if XOnXOff is disabled

◆ getXonXoff() [2/2]

bool Basda::MPIACoreCard::getXonXoff ( )

Returns the status of the XOnXOff protocol.

Returns: true if XOnXOff is enabled, false if XOnXOff is disabled

◆ reset() [1/2]

void Basda::MPIACoreCard::reset ( )

Resets the MPIA in-house electronic software and hardware.

If this method is called the electronic card software will be reseted. That leads to a disconnection. The connection and the registration has to be done again.

◆ reset() [2/2]

void Basda::MPIACoreCard::reset ( )

Resets the MPIA in-house electronic software and hardware.

If this method is called the electronic card software will be reseted. That leads to a disconnection. The connection and the registration has to be done again.

◆ resetFatalError() [1/2]

void Basda::MPIACoreCard::resetFatalError ( )

Resets the fatal error.

It is necessary to execute a software reset to get all command functionality back.

See also: getFatalError

◆ resetFatalError() [2/2]

void Basda::MPIACoreCard::resetFatalError ( )

Resets the fatal error.

It is necessary to execute a software reset to get all command functionality back.

See also: getFatalError

◆ setCANRate() [1/2]

void Basda::MPIACoreCard::setCANRate ( const ValueCanRate::Constant _canRate )

Sets the CAN rate of the CAN bus.

Parameters

_canRate the index of the baud rate of the CAN bus

See also: MPIA/Core/CommandIDs.h - ValueCanRate

◆ setCANRate() [2/2]

void Basda::MPIACoreCard::setCANRate ( const ValueCanRate::Constant _canRate )

Sets the CAN rate of the CAN bus.

Parameters

_canRate the index of the baud rate of the CAN bus

See also: MPIA/Core/CommandIDs.h - ValueCanRate

◆ setEventFlag() [1/2]

void Basda::MPIACoreCard::setEventFlag ( const ValueSwitch::Constant _eventMode )

Sets the event message flag.

Parameters

_eventMode if true the MPIA in-house electronic will send event messages

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ setEventFlag() [2/2]

void Basda::MPIACoreCard::setEventFlag ( const ValueSwitch::Constant _eventMode )

Sets the event message flag.

Parameters

_eventMode if true the MPIA in-house electronic will send event messages

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ setGateAddress() [1/2]

void Basda::MPIACoreCard::setGateAddress ( const std::string _gate )

Sets the gate address of the MPIA in-house electronic.

Parameters

_gate the gate address e.g. 192.168.3.1

◆ setGateAddress() [2/2]

void Basda::MPIACoreCard::setGateAddress ( const std::string _gate )

Sets the gate address of the MPIA in-house electronic.

Parameters

_gate the gate address e.g. 192.168.3.1

◆ setInfoFlag() [1/2]

void Basda::MPIACoreCard::setInfoFlag ( const ValueSwitch::Constant _infoMode )

Sets the event message flag.

Parameters

_infoMode if true the MPIA in-house electronic will send info messages

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ setInfoFlag() [2/2]

void Basda::MPIACoreCard::setInfoFlag ( const ValueSwitch::Constant _infoMode )

Sets the event message flag.

Parameters

_infoMode if true the MPIA in-house electronic will send info messages

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ setIPAddress() [1/2]

void Basda::MPIACoreCard::setIPAddress ( const std::string _ip )

Sets the IP address of the MPIA in-house electronic.

Parameters

_ip	the IP address e.g. 192.168.3.33

◆ setIPAddress() [2/2]

void Basda::MPIACoreCard::setIPAddress ( const std::string _ip )

Sets the IP address of the MPIA in-house electronic.

Parameters

_ip	the IP address e.g. 192.168.3.33

◆ setLinkTimeout() [1/2]

void Basda::MPIACoreCard::setLinkTimeout ( const unsigned int _timeout )

Sets the Ethernet connection timeout.

Parameters

_timeout the timeout in seconds (5 - 3600)

◆ setLinkTimeout() [2/2]

void Basda::MPIACoreCard::setLinkTimeout ( const unsigned int _timeout )

Sets the Ethernet connection timeout.

Parameters

_timeout the timeout in seconds (5 - 3600)

◆ setMaskAddress() [1/2]

void Basda::MPIACoreCard::setMaskAddress ( const std::string _mask )

Sets the mask address of the MPIA in-house electronic.

Parameters

_mask the mask address e.g. 255.255.252.1

◆ setMaskAddress() [2/2]

void Basda::MPIACoreCard::setMaskAddress ( const std::string _mask )

Sets the mask address of the MPIA in-house electronic.

Parameters

_mask the mask address e.g. 255.255.252.1

◆ setSerialRate() [1/2]

void Basda::MPIACoreCard::setSerialRate ( const ValueSerialRate::Constant _baudRate )

Sets the baud rate of the serial interface.

Parameters

_baudRate the index of the baud rate of the serial interface

See also: MPIA/Core/CommandIDs.h - ValueSerialRate

◆ setSerialRate() [2/2]

void Basda::MPIACoreCard::setSerialRate ( const ValueSerialRate::Constant _baudRate )

Sets the baud rate of the serial interface.

Parameters

_baudRate the index of the baud rate of the serial interface

See also: MPIA/Core/CommandIDs.h - ValueSerialRate

◆ setXonXoff() [1/2]

void Basda::MPIACoreCard::setXonXoff ( const ValueSwitch::Constant _enable )

Enables/disables the XOnXOff protocol.

Parameters

_enable true to enable to XOnXOff protocol; false disables the XOnXOff protocol

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ setXonXoff() [2/2]

void Basda::MPIACoreCard::setXonXoff ( const ValueSwitch::Constant _enable )

Enables/disables the XOnXOff protocol.

Parameters

_enable true to enable to XOnXOff protocol; false disables the XOnXOff protocol

See also: MPIA/Core/CommandIDs.h - ValueSwitch

◆ version() [1/2]

std::string Basda::MPIACoreCard::version ( )

The methods returns the current version string of the MPIA in-house electronic.

The version will be stored in the property:

VAR.FIRMWARE.VERSION

Parameters

_config the root of the configuration tree

◆ version() [2/2]

std::string Basda::MPIACoreCard::version ( )

The methods returns the current version string of the MPIA in-house electronic.

The version will be stored in the property:

VAR.FIRMWARE.VERSION

Parameters

_config the root of the configuration tree

◆ waitForEvent() [1/2]

void Basda::MPIACoreCard::waitForEvent ( )

Waits until an event is received in a certain time (timeout).

◆ waitForEvent() [2/2]

void Basda::MPIACoreCard::waitForEvent ( )

Waits until an event is received in a certain time (timeout).

The documentation for this class was generated from the following files:

TwiceAsNice/basda-mocca/doc/include/core/Card.h
TwiceAsNice/basda-mocca/doc/include/core/Card.cc

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MPIACoreCard() [1/2]

◆ ~MPIACoreCard() [1/2]

◆ MPIACoreCard() [2/2]

◆ ~MPIACoreCard() [2/2]

Member Function Documentation

◆ getCANRate() [1/2]

◆ getCANRate() [2/2]

◆ getEventFlag() [1/2]

◆ getEventFlag() [2/2]

◆ getFatalError() [1/2]

◆ getFatalError() [2/2]

◆ getGateAddress() [1/2]

◆ getGateAddress() [2/2]

◆ getInfoFlag() [1/2]

◆ getInfoFlag() [2/2]

◆ getIPAddress() [1/2]

◆ getIPAddress() [2/2]

◆ getLinkTimeout() [1/2]

◆ getLinkTimeout() [2/2]

◆ getMaskAddress() [1/2]

◆ getMaskAddress() [2/2]

◆ getRegistration() [1/2]

◆ getRegistration() [2/2]

◆ getSerialRate() [1/2]

◆ getSerialRate() [2/2]

◆ getXonXoff() [1/2]

◆ getXonXoff() [2/2]

◆ reset() [1/2]

◆ reset() [2/2]

◆ resetFatalError() [1/2]

◆ resetFatalError() [2/2]

◆ setCANRate() [1/2]

◆ setCANRate() [2/2]

◆ setEventFlag() [1/2]

◆ setEventFlag() [2/2]

◆ setGateAddress() [1/2]

◆ setGateAddress() [2/2]

◆ setInfoFlag() [1/2]

◆ setInfoFlag() [2/2]

◆ setIPAddress() [1/2]

◆ setIPAddress() [2/2]

◆ setLinkTimeout() [1/2]

◆ setLinkTimeout() [2/2]

◆ setMaskAddress() [1/2]

◆ setMaskAddress() [2/2]

◆ setSerialRate() [1/2]

◆ setSerialRate() [2/2]

◆ setXonXoff() [1/2]

◆ setXonXoff() [2/2]

◆ version() [1/2]

◆ version() [2/2]

◆ waitForEvent() [1/2]

◆ waitForEvent() [2/2]
