Basda::Tempo::LakeshoreMonitor218S Class Reference

#include <LakeshoreMonitor218S.h>

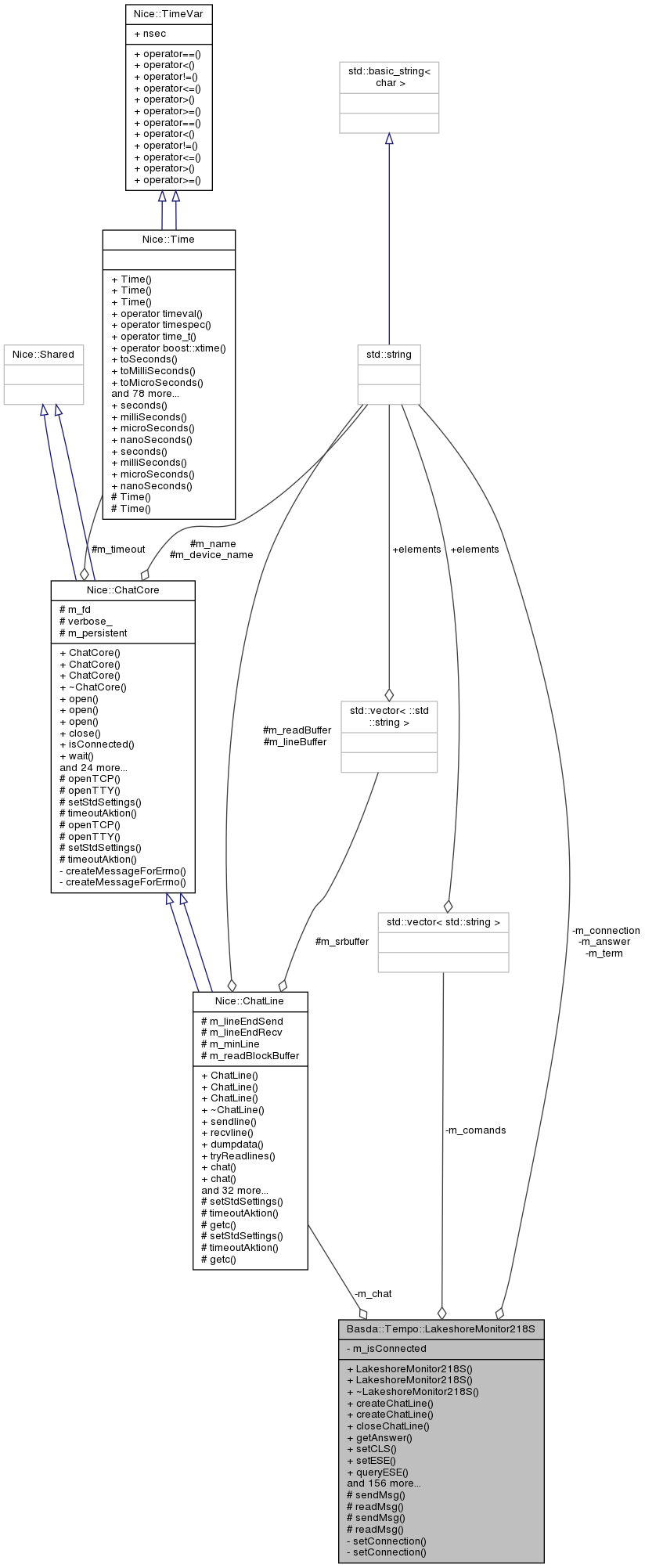

Collaboration diagram for Basda::Tempo::LakeshoreMonitor218S:

Public Member Functions
	LakeshoreMonitor218S ()
	LakeshoreMonitor218S (std::string connection, bool create)
virtual	~LakeshoreMonitor218S ()
void	createChatLine (const std::string &connection)
void	createChatLine ()
void	closeChatLine ()
std::string	getAnswer ()
void	setCLS ()
	command to clear the interface of the device More...
void	setESE (int weight)
	sets the configure status reports in the standard event register More...
void	queryESE (int &bitweight)
	gets the configuration of status reports in the event status register More...
void	queryESR (int &bitweight)
	gets the standard event status register More...
void	queryIDN ()
	gets the identification of the device More...
void	queryIDN (std::string &manufacture, std::string &model, std::string &serialnumber, std::string &firmwarerevisionmmddyy)
	gets the identification of the device and splits it into its parts More...
void	setOPC ()
	sets operation complete command More...
void	queryOPC ()
	query operation complete. More...
void	setRST ()
	reset the instrument More...
void	setSRE (int weight)
	set the status reports in the service request enable register More...
void	querySRE (int &bitweight)
	query the configuration of status reports in the service request enable register More...
void	querySTB (int &bitweight)
	query the status byte More...
void	queryTST (bool &errorfound)
	enable selftest of the device More...
void	setALARM (int input, bool alarm, int source, double high, double low, double dead, bool latch)
	sets the alarm parameters More...
void	queryALARM (int input, bool &onoff, int &source, double &highvalue, double &lowvalue, double &deadband, bool &latch_enabled)
	query the input alarm parameters More...
void	queryALARMST (int input, bool &highstate, bool &lowstate)
	query the input alarm status More...
void	setALMB (bool beep)
	sets the audible alarm beeper on or off More...
void	queryALMB (bool &beep)
	query the audible alarm parameters More...
void	setALMRST ()
	clear alarm status for all inputs More...
void	setANALOG (int output, bool bipolar, int mode, int input, int source, double high, double low, double manual)
	configure analog output parameters More...
void	queryANALOG (int output, bool &bipolar, int &mode, std::string &input, int &source, double &high, double &low, double &manual)
	query analog output parameters More...
void	queryAOUT (int input, double &aoutput)
	query analog output data More...
void	setBAUD (int baudrate)
	sets the serial interface baudrate More...
void	queryBAUD (int &baud)
	query the current serial interface baud rate More...
void	queryCRDG (int input, double &value)
	query Celsius reading for a single input (or all inputs) More...
void	queryAllCRDG (std::vector< double > &data)
	query Celsius reading for all inputs More...
void	setCRVDEL (int curve)
	delete user curve More...
void	setCRVHDR (int curve, std::string name, std::string sn, int format, double limit, int coeff)
	configure the curve header More...
void	queryCRVHDR (int curve, std::string &name, std::string &snum, int &format, double &limit, int &coeff)
	query curve header More...
void	setCRVPT (int curve, int index, double units, double temp)
	configure curve data point More...
void	queryCRVPT (int curve, int index, double &units, double &temp)
	query curve data point More...
void	setDATETIME (int MM, int dd, int yy, int hh, int mm, int ss)
	sets date and time More...
void	queryDATETIME (int &MM, int &dd, int &yy, int &hh, int &mm, int &ss)
	query date and time More...
void	setDFLT ()
	set to factory defaults More...
void	setDISPFLD (int loc, int input, int source)
	configure display parameters More...
void	queryDISPFLD (int location, int &input, int &source)
	query display field More...
void	setFILTER (int input, bool filter, int points, int win)
	configure input filter parameters More...
void	queryFILTER (int input, bool &filter, int &points, int &win)
	query input filter parameters More...
void	setIEEE (int terminator, bool eoi, int address)
	configure IEEE-488 interface parameters More...
void	queryIEEE (int &terminator, bool &eoi, int &address)
	query the IEEE-488 interface parameters More...
void	setINCRV (int input, int curve)
	configure curve input number More...
void	queryINCRV (int input, int &curve)
	query input curve number More...
void	setINPUT (int input, bool use)
	configure input control parameter More...
void	queryINPUT (int input, bool &onoff)
	query input control parameter More...
void	setINTYPE (char group, int type)
	configure input type parameters More...
void	queryINTYPE (char group, int &type)
	query input type parameters More...
void	queryKEYST (bool &pressed)
	query keypad status More...
void	queryKRDG (int input, double &value)
	query Kelvin reading for a single input More...
void	queryAllKRDG (std::vector< double > &data)
	query Kelvin reading for all inputs More...
void	setLINEAR (int input, double varM, int source, double varB)
	configure input linear equation parameters More...
void	queryLINEAR (int input, double &varM, int &source, double &varB)
	query linear input equation parameters More...
void	setLOCK (bool lock, int code)
	configure Lock-out and Lock-out code More...
void	queryLOCK (bool &locked, int &code)
	query lock-out and lock-out code More...
void	setLOG (bool log)
	turns logging on or off More...
void	queryLOG (bool &onoff)
	query logging status More...
void	queryLOGNUM (int &lognumber)
	query number of last data log record stored More...
void	setLOGREAD (int num, int input, int source)
	configure log records More...
void	queryLOGREAD (int num, int &input, int &source)
	query log record parameters More...
void	setLOGSET (int mode, bool over, int start, int period, int read)
	configure logging parameters More...
void	queryLOGSET (int &mode, bool &over, int &start, int &period, int &read)
	query logging parameters More...
void	queryLOGVIEW (int num, int read, std::string &date, std::string &time, double &reading, int &status, int &source)
	query a logged data record More...
void	queryLRDG (int input, double &value)
	query linear equation data for a single input More...
void	queryAllLRDG (std::vector< double > &data)
	query linear equation data reading for all inputs More...
void	setMNMX (int input, int source)
	configure minimun and maximum input function parameters More...
void	queryMNMX (int input, int &source)
	query minimum and maximum input function parameters More...
void	queryMNMXRDG (int input, double &minvalue, double &maxvalue)
	query min/max data for an input More...
void	setMNMXRST ()
	reset all min/max function for all inputs More...
void	setMODE (int mode)
	configure remote interface mode More...
void	queryMODE (int &mode)
	query remote interface mode More...
void	queryRDGST (int input, int &readbitweight)
	query input status More...
void	setRELAY (int relay, int mode, int input, int type)
	configure relay control parameters More...
void	queryRELAY (int relay, int &mode, int &input, int &type)
	query relay control parameters More...
void	queryRELAYST (int &bitweight)
	query relay status More...
void	setSCAL (int stdc, int dest, std::string snum, double temp1, double unit1, double temp2, double unit2, double temp3, double unit3)
	generate a SoftCal(TM) curve More...
void	queryAllSRDG (std::vector< double > &data)
	query sensor units readings for all inputs More...
void	querySRDG (int input, double &value)
	query sensor units reading for a single input More...
	LakeshoreMonitor218S ()
	LakeshoreMonitor218S (std::string connection, bool create)
virtual	~LakeshoreMonitor218S ()
void	createChatLine (const std::string &connection)
void	createChatLine ()
void	closeChatLine ()
std::string	getAnswer ()
void	setCLS ()
	command to clear the interface of the device More...
void	setESE (int weight)
	sets the configure status reports in the standard event register More...
void	queryESE (int &bitweight)
	gets the configuration of status reports in the event status register More...
void	queryESR (int &bitweight)
	gets the standard event status register More...
void	queryIDN ()
	gets the identification of the device More...
void	queryIDN (std::string &manufacture, std::string &model, std::string &serialnumber, std::string &firmwarerevisionmmddyy)
	gets the identification of the device and splits it into its parts More...
void	setOPC ()
	sets operation complete command More...
void	queryOPC ()
	query operation complete. More...
void	setRST ()
	reset the instrument More...
void	setSRE (int weight)
	set the status reports in the service request enable register More...
void	querySRE (int &bitweight)
	query the configuration of status reports in the service request enable register More...
void	querySTB (int &bitweight)
	query the status byte More...
void	queryTST (bool &errorfound)
	enable selftest of the device More...
void	setALARM (int input, bool alarm, int source, double high, double low, double dead, bool latch)
	sets the alarm parameters More...
void	queryALARM (int input, bool &onoff, int &source, double &highvalue, double &lowvalue, double &deadband, bool &latch_enabled)
	query the input alarm parameters More...
void	queryALARMST (int input, bool &highstate, bool &lowstate)
	query the input alarm status More...
void	setALMB (bool beep)
	sets the audible alarm beeper on or off More...
void	queryALMB (bool &beep)
	query the audible alarm parameters More...
void	setALMRST ()
	clear alarm status for all inputs More...
void	setANALOG (int output, bool bipolar, int mode, int input, int source, double high, double low, double manual)
	configure analog output parameters More...
void	queryANALOG (int output, bool &bipolar, int &mode, std::string &input, int &source, double &high, double &low, double &manual)
	query analog output parameters More...
void	queryAOUT (int input, double &aoutput)
	query analog output data More...
void	setBAUD (int baudrate)
	sets the serial interface baudrate More...
void	queryBAUD (int &baud)
	query the current serial interface baud rate More...
void	queryCRDG (int input, double &value)
	query Celsius reading for a single input (or all inputs) More...
void	queryAllCRDG (std::vector< double > &data)
	query Celsius reading for all inputs More...
void	setCRVDEL (int curve)
	delete user curve More...
void	setCRVHDR (int curve, std::string name, std::string sn, int format, double limit, int coeff)
	configure the curve header More...
void	queryCRVHDR (int curve, std::string &name, std::string &snum, int &format, double &limit, int &coeff)
	query curve header More...
void	setCRVPT (int curve, int index, double units, double temp)
	configure curve data point More...
void	queryCRVPT (int curve, int index, double &units, double &temp)
	query curve data point More...
void	setDATETIME (int MM, int dd, int yy, int hh, int mm, int ss)
	sets date and time More...
void	queryDATETIME (int &MM, int &dd, int &yy, int &hh, int &mm, int &ss)
	query date and time More...
void	setDFLT ()
	set to factory defaults More...
void	setDISPFLD (int loc, int input, int source)
	configure display parameters More...
void	queryDISPFLD (int location, int &input, int &source)
	query display field More...
void	setFILTER (int input, bool filter, int points, int win)
	configure input filter parameters More...
void	queryFILTER (int input, bool &filter, int &points, int &win)
	query input filter parameters More...
void	setIEEE (int terminator, bool eoi, int address)
	configure IEEE-488 interface parameters More...
void	queryIEEE (int &terminator, bool &eoi, int &address)
	query the IEEE-488 interface parameters More...
void	setINCRV (int input, int curve)
	configure curve input number More...
void	queryINCRV (int input, int &curve)
	query input curve number More...
void	setINPUT (int input, bool use)
	configure input control parameter More...
void	queryINPUT (int input, bool &onoff)
	query input control parameter More...
void	setINTYPE (char group, int type)
	configure input type parameters More...
void	queryINTYPE (char group, int &type)
	query input type parameters More...
void	queryKEYST (bool &pressed)
	query keypad status More...
void	queryKRDG (int input, double &value)
	query Kelvin reading for a single input More...
void	queryAllKRDG (std::vector< double > &data)
	query Kelvin reading for all inputs More...
void	setLINEAR (int input, double varM, int source, double varB)
	configure input linear equation parameters More...
void	queryLINEAR (int input, double &varM, int &source, double &varB)
	query linear input equation parameters More...
void	setLOCK (bool lock, int code)
	configure Lock-out and Lock-out code More...
void	queryLOCK (bool &locked, int &code)
	query lock-out and lock-out code More...
void	setLOG (bool log)
	turns logging on or off More...
void	queryLOG (bool &onoff)
	query logging status More...
void	queryLOGNUM (int &lognumber)
	query number of last data log record stored More...
void	setLOGREAD (int num, int input, int source)
	configure log records More...
void	queryLOGREAD (int num, int &input, int &source)
	query log record parameters More...
void	setLOGSET (int mode, bool over, int start, int period, int read)
	configure logging parameters More...
void	queryLOGSET (int &mode, bool &over, int &start, int &period, int &read)
	query logging parameters More...
void	queryLOGVIEW (int num, int read, std::string &date, std::string &time, double &reading, int &status, int &source)
	query a logged data record More...
void	queryLRDG (int input, double &value)
	query linear equation data for a single input More...
void	queryAllLRDG (std::vector< double > &data)
	query linear equation data reading for all inputs More...
void	setMNMX (int input, int source)
	configure minimun and maximum input function parameters More...
void	queryMNMX (int input, int &source)
	query minimum and maximum input function parameters More...
void	queryMNMXRDG (int input, double &minvalue, double &maxvalue)
	query min/max data for an input More...
void	setMNMXRST ()
	reset all min/max function for all inputs More...
void	setMODE (int mode)
	configure remote interface mode More...
void	queryMODE (int &mode)
	query remote interface mode More...
void	queryRDGST (int input, int &readbitweight)
	query input status More...
void	setRELAY (int relay, int mode, int input, int type)
	configure relay control parameters More...
void	queryRELAY (int relay, int &mode, int &input, int &type)
	query relay control parameters More...
void	queryRELAYST (int &bitweight)
	query relay status More...
void	setSCAL (int stdc, int dest, std::string snum, double temp1, double unit1, double temp2, double unit2, double temp3, double unit3)
	generate a SoftCal(TM) curve More...
void	queryAllSRDG (std::vector< double > &data)
	query sensor units readings for all inputs More...
void	querySRDG (int input, double &value)
	query sensor units reading for a single input More...

Protected Member Functions
int	sendMsg (const std::string &cmd)
	this function sends a specific command to the device More...
void	readMsg (std::string &rcv)
	this function reads the answer from the device More...
int	sendMsg (const std::string &cmd)
	this function sends a specific command to the device More...
void	readMsg (std::string &rcv)
	this function reads the answer from the device More...

Private Member Functions
void	setConnection (std::string connection)
	this function is used to set the m_IpInfo variable to a specific string More...
void	setConnection (std::string connection)
	this function is used to set the m_IpInfo variable to a specific string More...

Private Attributes
std::vector< std::string >	m_comands
	this vector contains the comands supported by the temperature monitor More...
Nice::ChatLine	m_chat
	this is the chatline that is used to comunicate with the device More...
std::string	m_connection
	this string contains the connection informations (ip adress, port) to build the chatLine More...
bool	m_isConnected
	this boolean indicates if there is an active connection to a device More...
std::string	m_answer
	this string contains the latest answer from the device More...
std::string	m_term
	this string contains the current terminators for the sending of the commands More...

Constructor & Destructor Documentation

LakeshoreMonitor218S() [1/4]

Basda::Tempo::LakeshoreMonitor218S::LakeshoreMonitor218S

(

)

LakeshoreMonitor218S() [2/4]

Basda::Tempo::LakeshoreMonitor218S::LakeshoreMonitor218S	(	std::string	connection,
		bool	create
	)

~LakeshoreMonitor218S() [1/2]

Basda::Tempo::LakeshoreMonitor218S::~LakeshoreMonitor218S ( )

virtual

LakeshoreMonitor218S() [3/4]

Basda::Tempo::LakeshoreMonitor218S::LakeshoreMonitor218S

(

)

LakeshoreMonitor218S() [4/4]

Basda::Tempo::LakeshoreMonitor218S::LakeshoreMonitor218S	(	std::string	connection,
		bool	create
	)

~LakeshoreMonitor218S() [2/2]

virtual Basda::Tempo::LakeshoreMonitor218S::~LakeshoreMonitor218S ( )

virtual

Member Function Documentation

closeChatLine() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::closeChatLine

(

)

closeChatLine() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::closeChatLine

(

)

createChatLine() [1/4]

void Basda::Tempo::LakeshoreMonitor218S::createChatLine

(

const std::string &

connection

)

createChatLine() [2/4]

void Basda::Tempo::LakeshoreMonitor218S::createChatLine

(

const std::string &

connection

)

createChatLine() [3/4]

void Basda::Tempo::LakeshoreMonitor218S::createChatLine

(

)

createChatLine() [4/4]

void Basda::Tempo::LakeshoreMonitor218S::createChatLine

(

)

getAnswer() [1/2]

std::string Basda::Tempo::LakeshoreMonitor218S::getAnswer ( )

inline

getAnswer() [2/2]

std::string Basda::Tempo::LakeshoreMonitor218S::getAnswer ( )

inline

queryALARM() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALARM	(	int	input,
		bool &	onoff,
		int &	source,
		double &	highvalue,
		double &	lowvalue,
		double &	deadband,
		bool &	latch_enabled
	)

query the input alarm parameters

Parameters

input	specifies the input
onoff	sets the alarm for the input to off or on
source	specifies input data to check (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)
highvalue	value the source is checked against to activate high alarm level
lowvalue	value the source is checked against to activate low alarm level
deadband	the value that the source must change outside of an alarm condition to deactivate an unlatched alarm
latch_enabled	Specifies a latched alarm (remains active after alarm condition correction)

queryALARM() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALARM	(	int	input,
		bool &	onoff,
		int &	source,
		double &	highvalue,
		double &	lowvalue,
		double &	deadband,
		bool &	latch_enabled
	)

query the input alarm parameters

Parameters

input	specifies the input
onoff	sets the alarm for the input to off or on
source	specifies input data to check (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)
highvalue	value the source is checked against to activate high alarm level
lowvalue	value the source is checked against to activate low alarm level
deadband	the value that the source must change outside of an alarm condition to deactivate an unlatched alarm
latch_enabled	Specifies a latched alarm (remains active after alarm condition correction)

queryALARMST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALARMST	(	int	input,
		bool &	highstate,
		bool &	lowstate
	)

query the input alarm status

Parameters

input	specifies the input (1..8)
highstate	highvalue alarm is on or off
lowstate	lowvalue alarm is on or off

queryALARMST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALARMST	(	int	input,
		bool &	highstate,
		bool &	lowstate
	)

query the input alarm status

Parameters

input	specifies the input (1..8)
highstate	highvalue alarm is on or off
lowstate	lowvalue alarm is on or off

queryAllCRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllCRDG

(

std::vector< double > &

data

)

query Celsius reading for all inputs

Parameters

data	specifies the data vector inculding the values of all inputs

queryAllCRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllCRDG

(

std::vector< double > &

data

)

query Celsius reading for all inputs

Parameters

data	specifies the data vector inculding the values of all inputs

queryAllKRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllKRDG

(

std::vector< double > &

data

)

query Kelvin reading for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryAllKRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllKRDG

(

std::vector< double > &

data

)

query Kelvin reading for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryAllLRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllLRDG

(

std::vector< double > &

data

)

query linear equation data reading for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryAllLRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllLRDG

(

std::vector< double > &

data

)

query linear equation data reading for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryAllSRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllSRDG

(

std::vector< double > &

data

)

query sensor units readings for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryAllSRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAllSRDG

(

std::vector< double > &

data

)

query sensor units readings for all inputs

Parameters

data	specifies the data vector including the values of all inputs

queryALMB() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALMB

(

bool &

beep

)

query the audible alarm parameters

Parameters

beep	current beep status true=on, false =off

queryALMB() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryALMB

(

bool &

beep

)

query the audible alarm parameters

Parameters

beep	current beep status true=on, false =off

queryANALOG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryANALOG	(	int	output,
		bool &	bipolar,
		int &	mode,
		std::string &	input,
		int &	source,
		double &	high,
		double &	low,
		double &	manual
	)

query analog output parameters

Parameters

output	specifies the output
bipolar	specifies analog output (0=positive only, 1=bipolar)
mode	data for the analog output to monitor (0=off, 1=input, 2=manual)
input	specifies the input to monitor if _mode=1
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear equation)
high	If mode=1, this parameter represents the data at which the analog output reaches +100% output
low	If mode=1, this parameter represents the data at which the analog output reaches -100% output if bipolar or 0% else
manual	if mode=2, this parameter is the output of the analog outpu

queryANALOG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryANALOG	(	int	output,
		bool &	bipolar,
		int &	mode,
		std::string &	input,
		int &	source,
		double &	high,
		double &	low,
		double &	manual
	)

query analog output parameters

Parameters

output	specifies the output
bipolar	specifies analog output (0=positive only, 1=bipolar)
mode	data for the analog output to monitor (0=off, 1=input, 2=manual)
input	specifies the input to monitor if _mode=1
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear equation)
high	If mode=1, this parameter represents the data at which the analog output reaches +100% output
low	If mode=1, this parameter represents the data at which the analog output reaches -100% output if bipolar or 0% else
manual	if mode=2, this parameter is the output of the analog outpu

queryAOUT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAOUT	(	int	input,
		double &	aoutput
	)

query analog output data

Parameters

output	specifies the output
aoutput	current analog output of the selected input

queryAOUT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryAOUT	(	int	input,
		double &	aoutput
	)

query analog output data

Parameters

output	specifies the output
aoutput	current analog output of the selected input

queryBAUD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryBAUD

(

int &

baud

)

query the current serial interface baud rate

Parameters

baud	current baud rate (0=300, 1=1200, 2=9600)

queryBAUD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryBAUD

(

int &

baud

)

query the current serial interface baud rate

Parameters

baud	current baud rate (0=300, 1=1200, 2=9600)

queryCRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRDG	(	int	input,
		double &	value
	)

query Celsius reading for a single input (or all inputs)

Parameters

input	specifies the input (0 for all inputs is covered be queryAllCRDG()
value	the Celsius value for the selected input

queryCRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRDG	(	int	input,
		double &	value
	)

query Celsius reading for a single input (or all inputs)

Parameters

input	specifies the input (0 for all inputs is covered be queryAllCRDG()
value	the Celsius value for the selected input

queryCRVHDR() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRVHDR	(	int	curve,
		std::string &	name,
		std::string &	snum,
		int &	format,
		double &	limit,
		int &	coeff
	)

query curve header

Parameters

curve	specifies which curve to query (1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)
name	actual curve name (max 15 chars)
snum	actual serial number for the curve (max 10 chars)
format	actual curve data format (1=mV/K, 2=V/K, 3=Ohm/K, 4=log(Ohm/K)
limit	actual curve temperature limit in Kelvin
coeff	actual temperature coefficient (1=negative, 2=positive)

queryCRVHDR() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRVHDR	(	int	curve,
		std::string &	name,
		std::string &	snum,
		int &	format,
		double &	limit,
		int &	coeff
	)

query curve header

Parameters

curve	specifies which curve to query (1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)
name	actual curve name (max 15 chars)
snum	actual serial number for the curve (max 10 chars)
format	actual curve data format (1=mV/K, 2=V/K, 3=Ohm/K, 4=log(Ohm/K)
limit	actual curve temperature limit in Kelvin
coeff	actual temperature coefficient (1=negative, 2=positive)

queryCRVPT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRVPT	(	int	curve,
		int	index,
		double &	units,
		double &	temp
	)

query curve data point

Parameters

curve	specifies which curve to query (1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)
index	specifies the points index in the curve (1-200)
units	current sensor units for this point up to 6 digits
temp	current corresponding temperature in Kelvin for this point up to 6 digits

queryCRVPT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryCRVPT	(	int	curve,
		int	index,
		double &	units,
		double &	temp
	)

query curve data point

Parameters

curve	specifies which curve to query (1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)
index	specifies the points index in the curve (1-200)
units	current sensor units for this point up to 6 digits
temp	current corresponding temperature in Kelvin for this point up to 6 digits

queryDATETIME() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryDATETIME	(	int &	MM,
		int &	dd,
		int &	yy,
		int &	hh,
		int &	mm,
		int &	ss
	)

query date and time

Parameters

MM	month (1-12)
dd	day (1-31)
yy	year (00-99)
hh	hour (0-23)
mm	minute (0-59)
ss	second (0-59)

queryDATETIME() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryDATETIME	(	int &	MM,
		int &	dd,
		int &	yy,
		int &	hh,
		int &	mm,
		int &	ss
	)

query date and time

Parameters

MM	month (1-12)
dd	day (1-31)
yy	year (00-99)
hh	hour (0-23)
mm	minute (0-59)
ss	second (0-59)

queryDISPFLD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryDISPFLD	(	int	location,
		int &	input,
		int &	source
	)

query display field

Parameters

location	display location (1-8)
input	specifies input to display in that location (0-8) (0=none)
source	specifies input data to display (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data, 5=minimum data, 6=maximum data)

queryDISPFLD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryDISPFLD	(	int	location,
		int &	input,
		int &	source
	)

query display field

Parameters

location	display location (1-8)
input	specifies input to display in that location (0-8) (0=none)
source	specifies input data to display (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data, 5=minimum data, 6=maximum data)

queryESE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryESE

(

int &

bitweight

)

gets the configuration of status reports in the event status register

Parameters

bitweight

current sum of the bit weighting to mask the status flags in the standard status event register

queryESE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryESE

(

int &

bitweight

)

gets the configuration of status reports in the event status register

Parameters

bitweight

current sum of the bit weighting to mask the status flags in the standard status event register

queryESR() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryESR

(

int &

bitweight

)

gets the standard event status register

Parameters

bitweight

value representing the sum of the bit weighting of the event flag bits that are set in the Standard Event Status Register

queryESR() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryESR

(

int &

bitweight

)

gets the standard event status register

Parameters

bitweight

value representing the sum of the bit weighting of the event flag bits that are set in the Standard Event Status Register

queryFILTER() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryFILTER	(	int	input,
		bool &	filter,
		int &	points,
		int &	win
	)

query input filter parameters

Parameters

input	specifies input (1-8)
filter	current filter status, off(false) or on(true)
points	current amount of data points for the filtering function (2-64)
win	what percent of full scale reading limits the filtering function (1-10)

queryFILTER() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryFILTER	(	int	input,
		bool &	filter,
		int &	points,
		int &	win
	)

query input filter parameters

Parameters

input	specifies input (1-8)
filter	current filter status, off(false) or on(true)
points	current amount of data points for the filtering function (2-64)
win	what percent of full scale reading limits the filtering function (1-10)

queryIDN() [1/4]

void Basda::Tempo::LakeshoreMonitor218S::queryIDN

(

)

gets the identification of the device

queryIDN() [2/4]

void Basda::Tempo::LakeshoreMonitor218S::queryIDN

(

)

gets the identification of the device

queryIDN() [3/4]

void Basda::Tempo::LakeshoreMonitor218S::queryIDN	(	std::string &	manufacture,
		std::string &	model,
		std::string &	serialnumber,
		std::string &	firmwarerevisionmmddyy
	)

gets the identification of the device and splits it into its parts

Parameters

manufacture	Manufacturer ID
model	Instrument model number
serialnumber	Serial number
firmwarerevisionmmddyy	Instrument firmware revision date

queryIDN() [4/4]

void Basda::Tempo::LakeshoreMonitor218S::queryIDN	(	std::string &	manufacture,
		std::string &	model,
		std::string &	serialnumber,
		std::string &	firmwarerevisionmmddyy
	)

gets the identification of the device and splits it into its parts

Parameters

manufacture	Manufacturer ID
model	Instrument model number
serialnumber	Serial number
firmwarerevisionmmddyy	Instrument firmware revision date

queryIEEE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryIEEE	(	int &	terminator,
		bool &	eoi,
		int &	address
	)

query the IEEE-488 interface parameters

Parameters

terminator	currently used terminator (0=<CR><LF>, 1=<LF><CR>, 2=<LF>, 3=no terminator)
eoi	current EOI mode status, disableds(false)/enabled(true)
address	current IEEE address (1-30)

queryIEEE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryIEEE	(	int &	terminator,
		bool &	eoi,
		int &	address
	)

query the IEEE-488 interface parameters

Parameters

terminator	currently used terminator (0=<CR><LF>, 1=<LF><CR>, 2=<LF>, 3=no terminator)
eoi	current EOI mode status, disableds(false)/enabled(true)
address	current IEEE address (1-30)

queryINCRV() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINCRV	(	int	input,
		int &	curve
	)

query input curve number

Parameters

input	specifies the input (1-8)
curve	specifies which curve the input uses (0=none, 1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)

queryINCRV() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINCRV	(	int	input,
		int &	curve
	)

query input curve number

Parameters

input	specifies the input (1-8)
curve	specifies which curve the input uses (0=none, 1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)

queryINPUT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINPUT	(	int	input,
		bool &	onoff
	)

query input control parameter

Parameters

input	specifies the input (1-8)
onoff	input turned off(false) or on(true);

queryINPUT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINPUT	(	int	input,
		bool &	onoff
	)

query input control parameter

Parameters

input	specifies the input (1-8)
onoff	input turned off(false) or on(true);

queryINTYPE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINTYPE	(	char	group,
		int &	type
	)

query input type parameters

Parameters

group	specifies input group (A=1-4, B=5-8)
type	specifies the input sensor type (0=2.5V Diode, 1 = 7.5V Diode, 2=250Ω Platinum, 3=500Ω Platinum, 4=5kΩ Platinum, 5=Cernox)

queryINTYPE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryINTYPE	(	char	group,
		int &	type
	)

query input type parameters

Parameters

group	specifies input group (A=1-4, B=5-8)
type	specifies the input sensor type (0=2.5V Diode, 1 = 7.5V Diode, 2=250Ω Platinum, 3=500Ω Platinum, 4=5kΩ Platinum, 5=Cernox)

queryKEYST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryKEYST

(

bool &

pressed

)

query keypad status

Parameters

pressed

true if key is pressed, false otherwise

queryKEYST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryKEYST

(

bool &

pressed

)

query keypad status

Parameters

pressed

true if key is pressed, false otherwise

queryKRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryKRDG	(	int	input,
		double &	value
	)

query Kelvin reading for a single input

Parameters

input	specifies the input (0 for all inputs is covered be queryAllKRDG()
value	the Kelvin value for the selected input

queryKRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryKRDG	(	int	input,
		double &	value
	)

query Kelvin reading for a single input

Parameters

input	specifies the input (0 for all inputs is covered be queryAllKRDG()
value	the Kelvin value for the selected input

queryLINEAR() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLINEAR	(	int	input,
		double &	varM,
		int &	source,
		double &	varB
	)

query linear input equation parameters

Parameters

input	specifies input (1-8)
varM	specifies a value for m in the equation
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units)
varB	specifies a value for b in the equation

queryLINEAR() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLINEAR	(	int	input,
		double &	varM,
		int &	source,
		double &	varB
	)

query linear input equation parameters

Parameters

input	specifies input (1-8)
varM	specifies a value for m in the equation
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units)
varB	specifies a value for b in the equation

queryLOCK() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOCK	(	bool &	locked,
		int &	code
	)

query lock-out and lock-out code

Parameters

locked	current lock status, true means locked, false means unlocked
code	current lock-out code

queryLOCK() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOCK	(	bool &	locked,
		int &	code
	)

query lock-out and lock-out code

Parameters

locked	current lock status, true means locked, false means unlocked
code	current lock-out code

queryLOG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOG

(

bool &

onoff

)

query logging status

Parameters

onoff

logging is tunred on (true) or off (false)

queryLOG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOG

(

bool &

onoff

)

query logging status

Parameters

onoff

logging is tunred on (true) or off (false)

queryLOGNUM() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGNUM

(

int &

lognumber

)

query number of last data log record stored

Parameters

lognumber

number of last data record stored

queryLOGNUM() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGNUM

(

int &

lognumber

)

query number of last data log record stored

Parameters

lognumber

number of last data record stored

queryLOGREAD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGREAD	(	int	num,
		int &	input,
		int &	source
	)

query log record parameters

Parameters

num	number of the log to be read (1-8)
input	the input to log (1-8)
source	data source to log (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

queryLOGREAD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGREAD	(	int	num,
		int &	input,
		int &	source
	)

query log record parameters

Parameters

num	number of the log to be read (1-8)
input	the input to log (1-8)
source	data source to log (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

queryLOGSET() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGSET	(	int &	mode,
		bool &	over,
		int &	start,
		int &	period,
		int &	read
	)

query logging parameters

Parameters

mode	specifies logging mode (0=off, 1=log continuous, 2=log event, 3=print continuous, 4=print event)
over	specifies overwrite mode (true=overwrite data, false=do not overwrite data)
start	specifies start mode (0=clear, 1=continue)
period	specifies period in seconds (1-3600). If _mode=3 minimum period is 10
read	specifies number of readings per record (1-8)

queryLOGSET() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGSET	(	int &	mode,
		bool &	over,
		int &	start,
		int &	period,
		int &	read
	)

query logging parameters

Parameters

mode	specifies logging mode (0=off, 1=log continuous, 2=log event, 3=print continuous, 4=print event)
over	specifies overwrite mode (true=overwrite data, false=do not overwrite data)
start	specifies start mode (0=clear, 1=continue)
period	specifies period in seconds (1-3600). If _mode=3 minimum period is 10
read	specifies number of readings per record (1-8)

queryLOGVIEW() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGVIEW	(	int	num,
		int	read,
		std::string &	date,
		std::string &	time,
		double &	reading,
		int &	status,
		int &	source
	)

query a logged data record

Parameters

num	number of data record
read	number of reading
date	Date reading was recorded.
time	Time reading was recorded.
reading	Reading value logged.
status	Represents the sum of the bit weighting of the reading status flag bits.
source	Returns data source recorded. 1 = Kelvin, 2 = Celsius, 3 = sensor units,4 = linear data.

queryLOGVIEW() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLOGVIEW	(	int	num,
		int	read,
		std::string &	date,
		std::string &	time,
		double &	reading,
		int &	status,
		int &	source
	)

query a logged data record

Parameters

num	number of data record
read	number of reading
date	Date reading was recorded.
time	Time reading was recorded.
reading	Reading value logged.
status	Represents the sum of the bit weighting of the reading status flag bits.
source	Returns data source recorded. 1 = Kelvin, 2 = Celsius, 3 = sensor units,4 = linear data.

queryLRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLRDG	(	int	input,
		double &	value
	)

query linear equation data for a single input

Parameters

input	specifies the input (0 for all inputs is covered be queryAllLRDG()
value	the linear equation data for the selected input

queryLRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryLRDG	(	int	input,
		double &	value
	)

query linear equation data for a single input

Parameters

input	specifies the input (0 for all inputs is covered be queryAllLRDG()
value	the linear equation data for the selected input

queryMNMX() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMNMX	(	int	input,
		int &	source
	)

query minimum and maximum input function parameters

Parameters

input	specifies the input (1-8)
source	currently selected input data to process through max/min (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

queryMNMX() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMNMX	(	int	input,
		int &	source
	)

query minimum and maximum input function parameters

Parameters

input	specifies the input (1-8)
source	currently selected input data to process through max/min (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

queryMNMXRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMNMXRDG	(	int	input,
		double &	minvalue,
		double &	maxvalue
	)

query min/max data for an input

Parameters

input	specifies the input (1-8)
minvalue	minimum input data value
maxvalue	maximum input data value

queryMNMXRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMNMXRDG	(	int	input,
		double &	minvalue,
		double &	maxvalue
	)

query min/max data for an input

Parameters

input	specifies the input (1-8)
minvalue	minimum input data value
maxvalue	maximum input data value

queryMODE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMODE

(

int &

mode

)

query remote interface mode

Parameters

mode	current operation mode (0=local, 1=remote, 2=remote with local lock-out)

queryMODE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryMODE

(

int &

mode

)

query remote interface mode

Parameters

mode	current operation mode (0=local, 1=remote, 2=remote with local lock-out)

queryOPC() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryOPC

(

)

query operation complete.

Note

places a 1 in the controllers output queue upon completion of all pending selected device operations

queryOPC() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryOPC

(

)

query operation complete.

Note

places a 1 in the controllers output queue upon completion of all pending selected device operations

queryRDGST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRDGST	(	int	input,
		int &	readbitweight
	)

query input status

Parameters

input	specifies the input (1-8)
readbitweight	The integer returned represents the sum of the bit weighting of the input status flag bits.

queryRDGST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRDGST	(	int	input,
		int &	readbitweight
	)

query input status

Parameters

input	specifies the input (1-8)
readbitweight	The integer returned represents the sum of the bit weighting of the input status flag bits.

queryRELAY() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRELAY	(	int	relay,
		int &	mode,
		int &	input,
		int &	type
	)

query relay control parameters

Parameters

relay	specifies which relay to query
mode	current relay mode (0=off, 1=on, 2=alarms)
input	which current input alarm activates the relay when in alarm mode (1-8)
type	current alarm type (0=low alarm, 1=high alarm, 2=both alarms)

queryRELAY() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRELAY	(	int	relay,
		int &	mode,
		int &	input,
		int &	type
	)

query relay control parameters

Parameters

relay	specifies which relay to query
mode	current relay mode (0=off, 1=on, 2=alarms)
input	which current input alarm activates the relay when in alarm mode (1-8)
type	current alarm type (0=low alarm, 1=high alarm, 2=both alarms)

queryRELAYST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRELAYST

(

int &

bitweight

)

query relay status

Parameters

bitweight

The integer returned represents the sum of the bit weighting of the relay status.

queryRELAYST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryRELAYST

(

int &

bitweight

)

query relay status

Parameters

bitweight

The integer returned represents the sum of the bit weighting of the relay status.

querySRDG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::querySRDG	(	int	input,
		double &	value
	)

query sensor units reading for a single input

Parameters

input	specifies the input (0-8) (0 for all inputs is covered by queryAllSRDG())
value	the sensor units reading data for the selected input

querySRDG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::querySRDG	(	int	input,
		double &	value
	)

query sensor units reading for a single input

Parameters

input	specifies the input (0-8) (0 for all inputs is covered by queryAllSRDG())
value	the sensor units reading data for the selected input

querySRE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::querySRE

(

int &

bitweight

)

query the configuration of status reports in the service request enable register

Parameters

bitweight

current sum of the bit weighting to mask the status flags in the status byte register

querySRE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::querySRE

(

int &

bitweight

)

query the configuration of status reports in the service request enable register

Parameters

bitweight

current sum of the bit weighting to mask the status flags in the status byte register

querySTB() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::querySTB

(

int &

bitweight

)

query the status byte

Parameters

bitweight

current sum of the bit weighting of the status flags that are set in the status byte register

querySTB() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::querySTB

(

int &

bitweight

)

query the status byte

Parameters

bitweight

current sum of the bit weighting of the status flags that are set in the status byte register

queryTST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::queryTST

(

bool &

errorfound

)

enable selftest of the device

Parameters

errorfound

true if error was found, false otherwise

queryTST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::queryTST

(

bool &

errorfound

)

enable selftest of the device

Parameters

errorfound

true if error was found, false otherwise

readMsg() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::readMsg ( std::string &  rcv )

protected

this function reads the answer from the device

Parameters

rcv	answer from the device

readMsg() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::readMsg ( std::string &  rcv )

protected

this function reads the answer from the device

Parameters

rcv	answer from the device

sendMsg() [1/2]

int Basda::Tempo::LakeshoreMonitor218S::sendMsg ( const std::string &  cmd )

protected

this function sends a specific command to the device

Parameters

cmd	command to send

Returns

number of chars sent

sendMsg() [2/2]

int Basda::Tempo::LakeshoreMonitor218S::sendMsg ( const std::string &  cmd )

protected

this function sends a specific command to the device

Parameters

cmd	command to send

Returns

number of chars sent

setALARM() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setALARM	(	int	input,
		bool	alarm,
		int	source,
		double	high,
		double	low,
		double	dead,
		bool	latch
	)

sets the alarm parameters

Parameters

input	specifies the input to configure
alarm	sets the alarm for the input to off or on
source	specifies input data to check (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)
high	value the source is checked against to activate high alarm level
low	value the source is checked against to activate low alarm level
dead	the value that the source must change outside of an alarm condition to deactivate an unlatched alarm
latch	Specifies a latched alarm (remains active after alarm condition correction)

setALARM() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setALARM	(	int	input,
		bool	alarm,
		int	source,
		double	high,
		double	low,
		double	dead,
		bool	latch
	)

sets the alarm parameters

Parameters

input	specifies the input to configure
alarm	sets the alarm for the input to off or on
source	specifies input data to check (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)
high	value the source is checked against to activate high alarm level
low	value the source is checked against to activate low alarm level
dead	the value that the source must change outside of an alarm condition to deactivate an unlatched alarm
latch	Specifies a latched alarm (remains active after alarm condition correction)

setALMB() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setALMB

(

bool

beep

)

sets the audible alarm beeper on or off

Parameters

beep	on(true) or off(false)

setALMB() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setALMB

(

bool

beep

)

sets the audible alarm beeper on or off

Parameters

beep	on(true) or off(false)

setALMRST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setALMRST

(

)

clear alarm status for all inputs

setALMRST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setALMRST

(

)

clear alarm status for all inputs

setANALOG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setANALOG	(	int	output,
		bool	bipolar,
		int	mode,
		int	input,
		int	source,
		double	high,
		double	low,
		double	manual
	)

configure analog output parameters

Parameters

output	specifies the output (1 or 2)
bipolar	specifies analog output (0=positiv only, 1=bipolar)
mode	data for the analog output to monitor (0=off, 1=input, 2=manual)
input	specifies the input to monitor if mode=1
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear equation)
high	If mode=1, this parameter represents the data at which the analog output reaches +100% output
low	If mode=1, this parameter represents the data at which the analog output reaches -100% output if bipolar or 0% else
manual	if mode=2, this parameter is the output of the analog output

setANALOG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setANALOG	(	int	output,
		bool	bipolar,
		int	mode,
		int	input,
		int	source,
		double	high,
		double	low,
		double	manual
	)

configure analog output parameters

Parameters

output	specifies the output (1 or 2)
bipolar	specifies analog output (0=positiv only, 1=bipolar)
mode	data for the analog output to monitor (0=off, 1=input, 2=manual)
input	specifies the input to monitor if mode=1
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear equation)
high	If mode=1, this parameter represents the data at which the analog output reaches +100% output
low	If mode=1, this parameter represents the data at which the analog output reaches -100% output if bipolar or 0% else
manual	if mode=2, this parameter is the output of the analog output

setBAUD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setBAUD

(

int

baudrate

)

sets the serial interface baudrate

Parameters

baudrate

specifies baud rate (0=300, 1=1200, 2=9600)

setBAUD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setBAUD

(

int

baudrate

)

sets the serial interface baudrate

Parameters

baudrate

specifies baud rate (0=300, 1=1200, 2=9600)

setCLS() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setCLS

(

)

command to clear the interface of the device

setCLS() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setCLS

(

)

command to clear the interface of the device

setConnection() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setConnection ( std::string  connection )

private

this function is used to set the m_IpInfo variable to a specific string

setConnection() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setConnection ( std::string  connection )

private

this function is used to set the m_IpInfo variable to a specific string

setCRVDEL() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVDEL

(

int

curve

)

delete user curve

Parameters

curve

specifies which curve to delete (21-28) for inputs 1-8

setCRVDEL() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVDEL

(

int

curve

)

delete user curve

Parameters

curve

specifies which curve to delete (21-28) for inputs 1-8

setCRVHDR() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVHDR	(	int	curve,
		std::string	name,
		std::string	sn,
		int	format,
		double	limit,
		int	coeff
	)

configure the curve header

Parameters

curve	specifies which curve to configure (21-28) for inputs 1-8
name	specifies curve name (max 15 chars)
sn	serial number for the curve (max 10 chars)
format	curve data format (2=V/K, 3=Ohm/K, 4=log(Ohm/K)
limit	curve temperature limit in Kelvin
coeff	temperature coefficient (1=negative, 2=positive)

setCRVHDR() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVHDR	(	int	curve,
		std::string	name,
		std::string	sn,
		int	format,
		double	limit,
		int	coeff
	)

configure the curve header

Parameters

curve	specifies which curve to configure (21-28) for inputs 1-8
name	specifies curve name (max 15 chars)
sn	serial number for the curve (max 10 chars)
format	curve data format (2=V/K, 3=Ohm/K, 4=log(Ohm/K)
limit	curve temperature limit in Kelvin
coeff	temperature coefficient (1=negative, 2=positive)

setCRVPT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVPT	(	int	curve,
		int	index,
		double	units,
		double	temp
	)

configure curve data point

Parameters

curve	specifies which curve to configure (21-28) for inputs 1-8
index	specifies which point index in the curve (1-200)
units	specifies sensor units for this point to 6 digits
temp	specifies corresponding temperature in Kelvin for this point to 6 digits

setCRVPT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setCRVPT	(	int	curve,
		int	index,
		double	units,
		double	temp
	)

configure curve data point

Parameters

curve	specifies which curve to configure (21-28) for inputs 1-8
index	specifies which point index in the curve (1-200)
units	specifies sensor units for this point to 6 digits
temp	specifies corresponding temperature in Kelvin for this point to 6 digits

setDATETIME() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setDATETIME	(	int	MM,
		int	dd,
		int	yy,
		int	hh,
		int	mm,
		int	ss
	)

sets date and time

Parameters

MM	month (1-12)
dd	day (1-31)
yy	year (00-99)
hh	hour (0-23)
mm	minute (0-59)
ss	second (0-59)

setDATETIME() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setDATETIME	(	int	MM,
		int	dd,
		int	yy,
		int	hh,
		int	mm,
		int	ss
	)

sets date and time

Parameters

MM	month (1-12)
dd	day (1-31)
yy	year (00-99)
hh	hour (0-23)
mm	minute (0-59)
ss	second (0-59)

setDFLT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setDFLT

(

)

set to factory defaults

Note

use with causion

setDFLT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setDFLT

(

)

set to factory defaults

Note

use with causion

setDISPFLD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setDISPFLD	(	int	loc,
		int	input,
		int	source
	)

configure display parameters

Parameters

loc	display location (1-8)
input	specifies input to display in that location (0-8) (0=none)
source	specifies input data to display (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data, 5=minimum data, 6=maximum data)

setDISPFLD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setDISPFLD	(	int	loc,
		int	input,
		int	source
	)

configure display parameters

Parameters

loc	display location (1-8)
input	specifies input to display in that location (0-8) (0=none)
source	specifies input data to display (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data, 5=minimum data, 6=maximum data)

setESE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setESE

(

int

weight

)

sets the configure status reports in the standard event register

Parameters

weight

bit weighting

setESE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setESE

(

int

weight

)

sets the configure status reports in the standard event register

Parameters

weight

bit weighting

setFILTER() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setFILTER	(	int	input,
		bool	filter,
		int	points,
		int	win
	)

configure input filter parameters

Parameters

input	specifies input to configure (1-8)
filter	sets filter to off(false) or on(true)
points	amount of data points for the filtering function (2-64)
win	Specifies what percent of full scale reading limits the filtering function (1-10). Reading changes greater than this percentage reset the filter

setFILTER() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setFILTER	(	int	input,
		bool	filter,
		int	points,
		int	win
	)

configure input filter parameters

Parameters

input	specifies input to configure (1-8)
filter	sets filter to off(false) or on(true)
points	amount of data points for the filtering function (2-64)
win	Specifies what percent of full scale reading limits the filtering function (1-10). Reading changes greater than this percentage reset the filter

setIEEE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setIEEE	(	int	terminator,
		bool	eoi,
		int	address
	)

configure IEEE-488 interface parameters

Parameters

terminator	specifies the terminator (0=<CR><LF>, 1=<LF><CR>, 2=<LF>, 3=no terminator)
eoi	disables(false)/enables(true) the EOI mode
address	specifies the IEEE address

setIEEE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setIEEE	(	int	terminator,
		bool	eoi,
		int	address
	)

configure IEEE-488 interface parameters

Parameters

terminator	specifies the terminator (0=<CR><LF>, 1=<LF><CR>, 2=<LF>, 3=no terminator)
eoi	disables(false)/enables(true) the EOI mode
address	specifies the IEEE address

setINCRV() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setINCRV	(	int	input,
		int	curve
	)

configure curve input number

Parameters

input	specifies which input to configure (1-8)
curve	specifies which curve the input uses (0=none, 1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)

setINCRV() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setINCRV	(	int	input,
		int	curve
	)

configure curve input number

Parameters

input	specifies which input to configure (1-8)
curve	specifies which curve the input uses (0=none, 1-5=std diode curves, 6-9=std platinum curves, 21-28=user curves)

setINPUT() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setINPUT	(	int	input,
		bool	use
	)

configure input control parameter

Parameters

input	specifies input (1-8)
use	turns input off(false) or on(true);

setINPUT() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setINPUT	(	int	input,
		bool	use
	)

configure input control parameter

Parameters

input	specifies input (1-8)
use	turns input off(false) or on(true);

setINTYPE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setINTYPE	(	char	group,
		int	type
	)

configure input type parameters

Parameters

group	specifies input group (A=1-4, B=5-8)
type	specifies the input sensor type (0=2.5V Diode, 1 = 7.5V Diode, 2=250Ω Platinum, 3=500Ω Platinum, 4=5kΩ Platinum, 5=Cernox)

setINTYPE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setINTYPE	(	char	group,
		int	type
	)

configure input type parameters

Parameters

group	specifies input group (A=1-4, B=5-8)
type	specifies the input sensor type (0=2.5V Diode, 1 = 7.5V Diode, 2=250Ω Platinum, 3=500Ω Platinum, 4=5kΩ Platinum, 5=Cernox)

setLINEAR() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setLINEAR	(	int	input,
		double	varM,
		int	source,
		double	varB
	)

configure input linear equation parameters

Note

the equation used is y = m * x + b

Parameters

input	specifies input (1-8)
varM	specifies a value for m in the equation
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units)
varB	specifies a value for b in the equation

setLINEAR() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setLINEAR	(	int	input,
		double	varM,
		int	source,
		double	varB
	)

configure input linear equation parameters

Note

the equation used is y = m * x + b

Parameters

input	specifies input (1-8)
varM	specifies a value for m in the equation
source	specifies input data (1=Kelvin, 2=Celsius, 3=sensor units)
varB	specifies a value for b in the equation

setLOCK() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOCK	(	bool	lock,
		int	code
	)

configure Lock-out and Lock-out code

Parameters

lock	disables(false)/enables(true) the keypad lock-out
code	specifies lock-out code (000-999)

setLOCK() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOCK	(	bool	lock,
		int	code
	)

configure Lock-out and Lock-out code

Parameters

lock	disables(false)/enables(true) the keypad lock-out
code	specifies lock-out code (000-999)

setLOG() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOG

(

bool

log

)

turns logging on or off

Parameters

log	true=on, false=off

setLOG() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOG

(

bool

log

)

turns logging on or off

Parameters

log	true=on, false=off

setLOGREAD() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOGREAD	(	int	num,
		int	input,
		int	source
	)

configure log records

Parameters

num	specifies the reading number (1-8) within a log record to configure
input	the input to log (1-8)
source	data source to log (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

setLOGREAD() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOGREAD	(	int	num,
		int	input,
		int	source
	)

configure log records

Parameters

num	specifies the reading number (1-8) within a log record to configure
input	the input to log (1-8)
source	data source to log (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

setLOGSET() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOGSET	(	int	mode,
		bool	over,
		int	start,
		int	period,
		int	read
	)

configure logging parameters

Parameters

mode	specifies logging mode (0=off, 1=log continuous, 2=log event, 3=print continuous, 4=print event)
over	specifies overwrite mode (true=overwrite data, false=do not overwrite data)
start	specifies start mode (0=clear, 1=continue)
period	specifies period in seconds (1-3600). If _mode=3 minimum period is 10
read	specifies number of readings per record (1-8)

setLOGSET() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setLOGSET	(	int	mode,
		bool	over,
		int	start,
		int	period,
		int	read
	)

configure logging parameters

Parameters

mode	specifies logging mode (0=off, 1=log continuous, 2=log event, 3=print continuous, 4=print event)
over	specifies overwrite mode (true=overwrite data, false=do not overwrite data)
start	specifies start mode (0=clear, 1=continue)
period	specifies period in seconds (1-3600). If _mode=3 minimum period is 10
read	specifies number of readings per record (1-8)

setMNMX() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setMNMX	(	int	input,
		int	source
	)

configure minimun and maximum input function parameters

Parameters

input	specifies input to configure (1-8)
source	specifies input data to process through max/min (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

setMNMX() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setMNMX	(	int	input,
		int	source
	)

configure minimun and maximum input function parameters

Parameters

input	specifies input to configure (1-8)
source	specifies input data to process through max/min (1=Kelvin, 2=Celsius, 3=sensor units, 4=linear data)

setMNMXRST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setMNMXRST

(

)

reset all min/max function for all inputs

setMNMXRST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setMNMXRST

(

)

reset all min/max function for all inputs

setMODE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setMODE

(

int

mode

)

configure remote interface mode

Parameters

mode	specifies the operation mode (0=local, 1=remote, 2=remote with local lock-out)

setMODE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setMODE

(

int

mode

)

configure remote interface mode

Parameters

mode	specifies the operation mode (0=local, 1=remote, 2=remote with local lock-out)

setOPC() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setOPC

(

)

sets operation complete command

setOPC() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setOPC

(

)

sets operation complete command

setRELAY() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setRELAY	(	int	relay,
		int	mode,
		int	input,
		int	type
	)

configure relay control parameters

Parameters

relay	specifies which relay to configure (1-8)
mode	specifies relay mode (0=off, 1=on, 2=alarms)
input	specifies which input alarm activates the relay when in alarm mode (1-8)
type	specifies the alarm type (0=low alarm, 1=high alarm, 2=both alarms)

setRELAY() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setRELAY	(	int	relay,
		int	mode,
		int	input,
		int	type
	)

configure relay control parameters

Parameters

relay	specifies which relay to configure (1-8)
mode	specifies relay mode (0=off, 1=on, 2=alarms)
input	specifies which input alarm activates the relay when in alarm mode (1-8)
type	specifies the alarm type (0=low alarm, 1=high alarm, 2=both alarms)

setRST() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setRST

(

)

reset the instrument

setRST() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setRST

(

)

reset the instrument

setSCAL() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setSCAL	(	int	stdc,
		int	dest,
		std::string	snum,
		double	temp1,
		double	unit1,
		double	temp2,
		double	unit2,
		double	temp3,
		double	unit3
	)

generate a SoftCal(TM) curve

Parameters

stdc	specifies the standard curve to generate SoftCal from (1,6,7)
dest	specifies the user curve to store the SoftCal curve (21-28)
snum	specifies the curve serial number (max 10 chars)
temp1	specifies the first temperature point
unit1	specifies the first sensor units point
temp2	specifies the second temperature point
unit2	specifies the second sensor units point
temp3	specifies the third temperature point
unit3	specifies the third sensor units point

setSCAL() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setSCAL	(	int	stdc,
		int	dest,
		std::string	snum,
		double	temp1,
		double	unit1,
		double	temp2,
		double	unit2,
		double	temp3,
		double	unit3
	)

generate a SoftCal(TM) curve

Parameters

stdc	specifies the standard curve to generate SoftCal from (1,6,7)
dest	specifies the user curve to store the SoftCal curve (21-28)
snum	specifies the curve serial number (max 10 chars)
temp1	specifies the first temperature point
unit1	specifies the first sensor units point
temp2	specifies the second temperature point
unit2	specifies the second sensor units point
temp3	specifies the third temperature point
unit3	specifies the third sensor units point

setSRE() [1/2]

void Basda::Tempo::LakeshoreMonitor218S::setSRE

(

int

weight

)

set the status reports in the service request enable register

Parameters

weight

bit weighting

setSRE() [2/2]

void Basda::Tempo::LakeshoreMonitor218S::setSRE

(

int

weight

)

set the status reports in the service request enable register

Parameters

weight

bit weighting

Member Data Documentation

m_answer

std::string Basda::Tempo::LakeshoreMonitor218S::m_answer

private

this string contains the latest answer from the device

m_chat

Nice::ChatLine Basda::Tempo::LakeshoreMonitor218S::m_chat

private

this is the chatline that is used to comunicate with the device

m_comands

std::vector< std::string > Basda::Tempo::LakeshoreMonitor218S::m_comands

private

this vector contains the comands supported by the temperature monitor

m_connection

std::string Basda::Tempo::LakeshoreMonitor218S::m_connection

private

this string contains the connection informations (ip adress, port) to build the chatLine

m_isConnected

bool Basda::Tempo::LakeshoreMonitor218S::m_isConnected

private

this boolean indicates if there is an active connection to a device

m_term

std::string Basda::Tempo::LakeshoreMonitor218S::m_term

private

this string contains the current terminators for the sending of the commands

---

The documentation for this class was generated from the following files:

• TwiceAsNice/basda-tempo/doc/include/LakeshoreMonitor218S.h
• TwiceAsNice/basda-tempo/doc/include/LakeshoreMonitor218S.cpp
