modbus.h File Reference

#include <stdint.h>
#include <sys/time.h>
#include "modbus-version.h"
#include "modbus-tcp.h"
#include "modbus-rtu.h"

Include dependency graph for modbus.h:

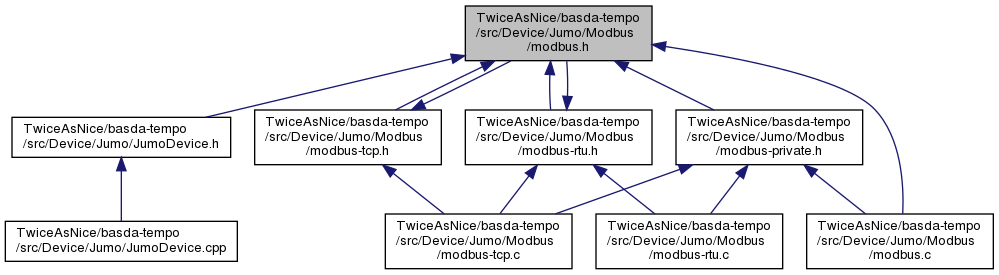

This graph shows which files directly or indirectly include this file:

Classes
struct	modbus_mapping_t

Macros
#define	MODBUS_BEGIN_DECLS
#define	MODBUS_END_DECLS
#define	FALSE   0
#define	TRUE   1
#define	OFF   0
#define	ON   1
#define	MODBUS_BROADCAST_ADDRESS   0
#define	MODBUS_MAX_READ_BITS   2000
#define	MODBUS_MAX_WRITE_BITS   1968
#define	MODBUS_MAX_READ_REGISTERS   125
#define	MODBUS_MAX_WRITE_REGISTERS   123
#define	MODBUS_MAX_RW_WRITE_REGISTERS   121
#define	MODBUS_ENOBASE   112345678
#define	EMBXILFUN   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_FUNCTION)
#define	EMBXILADD   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_DATA_ADDRESS)
#define	EMBXILVAL   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_DATA_VALUE)
#define	EMBXSFAIL   (MODBUS_ENOBASE + MODBUS_EXCEPTION_SLAVE_OR_SERVER_FAILURE)
#define	EMBXACK   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ACKNOWLEDGE)
#define	EMBXSBUSY   (MODBUS_ENOBASE + MODBUS_EXCEPTION_SLAVE_OR_SERVER_BUSY)
#define	EMBXNACK   (MODBUS_ENOBASE + MODBUS_EXCEPTION_NEGATIVE_ACKNOWLEDGE)
#define	EMBXMEMPAR   (MODBUS_ENOBASE + MODBUS_EXCEPTION_MEMORY_PARITY)
#define	EMBXGPATH   (MODBUS_ENOBASE + MODBUS_EXCEPTION_GATEWAY_PATH)
#define	EMBXGTAR   (MODBUS_ENOBASE + MODBUS_EXCEPTION_GATEWAY_TARGET)
#define	EMBBADCRC   (EMBXGTAR + 1)
#define	EMBBADDATA   (EMBXGTAR + 2)
#define	EMBBADEXC   (EMBXGTAR + 3)
#define	EMBUNKEXC   (EMBXGTAR + 4)
#define	EMBMDATA   (EMBXGTAR + 5)
#define	MODBUS_GET_HIGH_BYTE(data)   (((data) >> 8) & 0xFF)
	UTILS FUNCTIONS. More...
#define	MODBUS_GET_LOW_BYTE(data)   ((data) & 0xFF)
#define	MODBUS_GET_INT32_FROM_INT16(tab_int16, index)   ((tab_int16[(index)] << 16) + tab_int16[(index) + 1])
#define	MODBUS_GET_INT16_FROM_INT8(tab_int8, index)   ((tab_int8[(index)] << 8) + tab_int8[(index) + 1])
#define	MODBUS_SET_INT16_TO_INT8(tab_int8, index, value)

Typedefs
typedef struct _modbus	modbus_t

Enumerations
enum	{   MODBUS_EXCEPTION_ILLEGAL_FUNCTION = 0x01, MODBUS_EXCEPTION_ILLEGAL_DATA_ADDRESS, MODBUS_EXCEPTION_ILLEGAL_DATA_VALUE, MODBUS_EXCEPTION_SLAVE_OR_SERVER_FAILURE,   MODBUS_EXCEPTION_ACKNOWLEDGE, MODBUS_EXCEPTION_SLAVE_OR_SERVER_BUSY, MODBUS_EXCEPTION_NEGATIVE_ACKNOWLEDGE, MODBUS_EXCEPTION_MEMORY_PARITY,   MODBUS_EXCEPTION_NOT_DEFINED, MODBUS_EXCEPTION_GATEWAY_PATH, MODBUS_EXCEPTION_GATEWAY_TARGET, MODBUS_EXCEPTION_MAX }
enum	modbus_error_recovery_mode {   MODBUS_ERROR_RECOVERY_NONE = 0, MODBUS_ERROR_RECOVERY_LINK = (1<<1), MODBUS_ERROR_RECOVERY_PROTOCOL = (1<<2), MODBUS_ERROR_RECOVERY_NONE = 0,   MODBUS_ERROR_RECOVERY_LINK = (1<<1), MODBUS_ERROR_RECOVERY_PROTOCOL = (1<<2), MODBUS_ERROR_RECOVERY_NONE = 0, MODBUS_ERROR_RECOVERY_LINK = (1<<1),   MODBUS_ERROR_RECOVERY_PROTOCOL = (1<<2) }

Functions
int	modbus_set_slave (modbus_t *ctx, int slave)
int	modbus_set_error_recovery (modbus_t *ctx, modbus_error_recovery_mode error_recovery)
void	modbus_set_socket (modbus_t *ctx, int socket)
int	modbus_get_socket (modbus_t *ctx)
void	modbus_get_response_timeout (modbus_t *ctx, struct timeval *timeout)
void	modbus_set_response_timeout (modbus_t *ctx, const struct timeval *timeout)
void	modbus_get_byte_timeout (modbus_t *ctx, struct timeval *timeout)
void	modbus_set_byte_timeout (modbus_t *ctx, const struct timeval *timeout)
int	modbus_get_header_length (modbus_t *ctx)
int	modbus_connect (modbus_t *ctx)
void	modbus_close (modbus_t *ctx)
void	modbus_free (modbus_t *ctx)
int	modbus_flush (modbus_t *ctx)
void	modbus_set_debug (modbus_t *ctx, int boolean)
const char *	modbus_strerror (int errnum)
int	modbus_read_bits (modbus_t *ctx, int addr, int nb, uint8_t *dest)
int	modbus_read_input_bits (modbus_t *ctx, int addr, int nb, uint8_t *dest)
int	modbus_read_registers (modbus_t *ctx, int addr, int nb, uint16_t *dest)
int	modbus_read_input_registers (modbus_t *ctx, int addr, int nb, uint16_t *dest)
int	modbus_write_bit (modbus_t *ctx, int coil_addr, int status)
int	modbus_write_register (modbus_t *ctx, int reg_addr, int value)
int	modbus_write_bits (modbus_t *ctx, int addr, int nb, const uint8_t *data)
int	modbus_write_registers (modbus_t *ctx, int addr, int nb, const uint16_t *data)
int	modbus_write_and_read_registers (modbus_t *ctx, int write_addr, int write_nb, const uint16_t *src, int read_addr, int read_nb, uint16_t *dest)
int	modbus_report_slave_id (modbus_t *ctx, uint8_t *dest)
modbus_mapping_t *	modbus_mapping_new (int nb_coil_status, int nb_input_status, int nb_holding_registers, int nb_input_registers)
void	modbus_mapping_free (modbus_mapping_t *mb_mapping)
int	modbus_send_raw_request (modbus_t *ctx, uint8_t *raw_req, int raw_req_length)
int	modbus_receive (modbus_t *ctx, uint8_t *req)
int	modbus_receive_from (modbus_t *ctx, int sockfd, uint8_t *req)
int	modbus_receive_confirmation (modbus_t *ctx, uint8_t *rsp)
int	modbus_reply (modbus_t *ctx, const uint8_t *req, int req_length, modbus_mapping_t *mb_mapping)
int	modbus_reply_exception (modbus_t *ctx, const uint8_t *req, unsigned int exception_code)
void	modbus_set_bits_from_byte (uint8_t *dest, int index, const uint8_t value)
void	modbus_set_bits_from_bytes (uint8_t *dest, int index, unsigned int nb_bits, const uint8_t *tab_byte)
uint8_t	modbus_get_byte_from_bits (const uint8_t *src, int index, unsigned int nb_bits)
float	modbus_get_float (const uint16_t *src)
void	modbus_set_float (float f, uint16_t *dest)

Variables
const unsigned int	libmodbus_version_major
const unsigned int	libmodbus_version_minor
const unsigned int	libmodbus_version_micro

Macro Definition Documentation

EMBBADCRC

#define EMBBADCRC   (EMBXGTAR + 1)

EMBBADDATA

#define EMBBADDATA   (EMBXGTAR + 2)

EMBBADEXC

#define EMBBADEXC   (EMBXGTAR + 3)

EMBMDATA

#define EMBMDATA   (EMBXGTAR + 5)

EMBUNKEXC

#define EMBUNKEXC   (EMBXGTAR + 4)

EMBXACK

#define EMBXACK   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ACKNOWLEDGE)

EMBXGPATH

#define EMBXGPATH   (MODBUS_ENOBASE + MODBUS_EXCEPTION_GATEWAY_PATH)

EMBXGTAR

#define EMBXGTAR   (MODBUS_ENOBASE + MODBUS_EXCEPTION_GATEWAY_TARGET)

EMBXILADD

#define EMBXILADD   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_DATA_ADDRESS)

EMBXILFUN

#define EMBXILFUN   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_FUNCTION)

EMBXILVAL

#define EMBXILVAL   (MODBUS_ENOBASE + MODBUS_EXCEPTION_ILLEGAL_DATA_VALUE)

EMBXMEMPAR

#define EMBXMEMPAR   (MODBUS_ENOBASE + MODBUS_EXCEPTION_MEMORY_PARITY)

EMBXNACK

#define EMBXNACK   (MODBUS_ENOBASE + MODBUS_EXCEPTION_NEGATIVE_ACKNOWLEDGE)

EMBXSBUSY

#define EMBXSBUSY   (MODBUS_ENOBASE + MODBUS_EXCEPTION_SLAVE_OR_SERVER_BUSY)

EMBXSFAIL

#define EMBXSFAIL   (MODBUS_ENOBASE + MODBUS_EXCEPTION_SLAVE_OR_SERVER_FAILURE)

FALSE

#define FALSE   0

MODBUS_BEGIN_DECLS

#define MODBUS_BEGIN_DECLS

MODBUS_BROADCAST_ADDRESS

#define MODBUS_BROADCAST_ADDRESS   0

MODBUS_END_DECLS

#define MODBUS_END_DECLS

MODBUS_ENOBASE

#define MODBUS_ENOBASE   112345678

MODBUS_GET_HIGH_BYTE

#define MODBUS_GET_HIGH_BYTE

(

data

)

(((data) >> 8) & 0xFF)

UTILS FUNCTIONS.

MODBUS_GET_INT16_FROM_INT8

#define MODBUS_GET_INT16_FROM_INT8	(		tab_int8,
			index
	)		((tab_int8[(index)] << 8) + tab_int8[(index) + 1])

MODBUS_GET_INT32_FROM_INT16

#define MODBUS_GET_INT32_FROM_INT16	(		tab_int16,
			index
	)		((tab_int16[(index)] << 16) + tab_int16[(index) + 1])

MODBUS_GET_LOW_BYTE

#define MODBUS_GET_LOW_BYTE

(

data

)

((data) & 0xFF)

MODBUS_MAX_READ_BITS

#define MODBUS_MAX_READ_BITS   2000

MODBUS_MAX_READ_REGISTERS

#define MODBUS_MAX_READ_REGISTERS   125

MODBUS_MAX_RW_WRITE_REGISTERS

#define MODBUS_MAX_RW_WRITE_REGISTERS   121

MODBUS_MAX_WRITE_BITS

#define MODBUS_MAX_WRITE_BITS   1968

MODBUS_MAX_WRITE_REGISTERS

#define MODBUS_MAX_WRITE_REGISTERS   123

MODBUS_SET_INT16_TO_INT8

#define MODBUS_SET_INT16_TO_INT8	(		tab_int8,
			index,
			value
	)

Value:

do { \
        tab_int8[(index)] = (value) >> 8;  \
        tab_int8[(index) + 1] = (value) & 0xFF; \
    } while (0)

OFF

#define OFF   0

ON

#define ON   1

TRUE

#define TRUE   1

Typedef Documentation

modbus_t

typedef struct _modbus modbus_t

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
MODBUS_EXCEPTION_ILLEGAL_FUNCTION
MODBUS_EXCEPTION_ILLEGAL_DATA_ADDRESS
MODBUS_EXCEPTION_ILLEGAL_DATA_VALUE
MODBUS_EXCEPTION_SLAVE_OR_SERVER_FAILURE
MODBUS_EXCEPTION_ACKNOWLEDGE
MODBUS_EXCEPTION_SLAVE_OR_SERVER_BUSY
MODBUS_EXCEPTION_NEGATIVE_ACKNOWLEDGE
MODBUS_EXCEPTION_MEMORY_PARITY
MODBUS_EXCEPTION_NOT_DEFINED
MODBUS_EXCEPTION_GATEWAY_PATH
MODBUS_EXCEPTION_GATEWAY_TARGET
MODBUS_EXCEPTION_MAX

modbus_error_recovery_mode

enum modbus_error_recovery_mode

Enumerator
MODBUS_ERROR_RECOVERY_NONE
MODBUS_ERROR_RECOVERY_LINK
MODBUS_ERROR_RECOVERY_PROTOCOL
MODBUS_ERROR_RECOVERY_NONE
MODBUS_ERROR_RECOVERY_LINK
MODBUS_ERROR_RECOVERY_PROTOCOL
MODBUS_ERROR_RECOVERY_NONE
MODBUS_ERROR_RECOVERY_LINK
MODBUS_ERROR_RECOVERY_PROTOCOL

Function Documentation

modbus_close()

void modbus_close

(

modbus_t *

ctx

)

modbus_connect()

int modbus_connect

(

modbus_t *

ctx

)

modbus_flush()

int modbus_flush

(

modbus_t *

ctx

)

modbus_free()

void modbus_free

(

modbus_t *

ctx

)

modbus_get_byte_from_bits()

uint8_t modbus_get_byte_from_bits	(	const uint8_t *	src,
		int	index,
		unsigned int	nb_bits
	)

modbus_get_byte_timeout()

void modbus_get_byte_timeout	(	modbus_t *	ctx,
		struct timeval *	timeout
	)

modbus_get_float()

float modbus_get_float

(

const uint16_t *

src

)

modbus_get_header_length()

int modbus_get_header_length

(

modbus_t *

ctx

)

modbus_get_response_timeout()

void modbus_get_response_timeout	(	modbus_t *	ctx,
		struct timeval *	timeout
	)

modbus_get_socket()

int modbus_get_socket

(

modbus_t *

ctx

)

modbus_mapping_free()

void modbus_mapping_free

(

modbus_mapping_t *

mb_mapping

)

modbus_mapping_new()

modbus_mapping_t* modbus_mapping_new	(	int	nb_coil_status,
		int	nb_input_status,
		int	nb_holding_registers,
		int	nb_input_registers
	)

modbus_read_bits()

int modbus_read_bits	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		uint8_t *	dest
	)

modbus_read_input_bits()

int modbus_read_input_bits	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		uint8_t *	dest
	)

modbus_read_input_registers()

int modbus_read_input_registers	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		uint16_t *	dest
	)

modbus_read_registers()

int modbus_read_registers	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		uint16_t *	dest
	)

modbus_receive()

int modbus_receive	(	modbus_t *	ctx,
		uint8_t *	req
	)

modbus_receive_confirmation()

int modbus_receive_confirmation	(	modbus_t *	ctx,
		uint8_t *	rsp
	)

modbus_receive_from()

int modbus_receive_from	(	modbus_t *	ctx,
		int	sockfd,
		uint8_t *	req
	)

modbus_reply()

int modbus_reply	(	modbus_t *	ctx,
		const uint8_t *	req,
		int	req_length,
		modbus_mapping_t *	mb_mapping
	)

modbus_reply_exception()

int modbus_reply_exception	(	modbus_t *	ctx,
		const uint8_t *	req,
		unsigned int	exception_code
	)

modbus_report_slave_id()

int modbus_report_slave_id	(	modbus_t *	ctx,
		uint8_t *	dest
	)

modbus_send_raw_request()

int modbus_send_raw_request	(	modbus_t *	ctx,
		uint8_t *	raw_req,
		int	raw_req_length
	)

modbus_set_bits_from_byte()

void modbus_set_bits_from_byte	(	uint8_t *	dest,
		int	index,
		const uint8_t	value
	)

modbus_set_bits_from_bytes()

void modbus_set_bits_from_bytes	(	uint8_t *	dest,
		int	index,
		unsigned int	nb_bits,
		const uint8_t *	tab_byte
	)

modbus_set_byte_timeout()

void modbus_set_byte_timeout	(	modbus_t *	ctx,
		const struct timeval *	timeout
	)

modbus_set_debug()

void modbus_set_debug	(	modbus_t *	ctx,
		int	boolean
	)

modbus_set_error_recovery()

int modbus_set_error_recovery	(	modbus_t *	ctx,
		modbus_error_recovery_mode	error_recovery
	)

modbus_set_float()

void modbus_set_float	(	float	f,
		uint16_t *	dest
	)

modbus_set_response_timeout()

void modbus_set_response_timeout	(	modbus_t *	ctx,
		const struct timeval *	timeout
	)

modbus_set_slave()

int modbus_set_slave	(	modbus_t *	ctx,
		int	slave
	)

modbus_set_socket()

void modbus_set_socket	(	modbus_t *	ctx,
		int	socket
	)

modbus_strerror()

const char* modbus_strerror

(

int

errnum

)

modbus_write_and_read_registers()

int modbus_write_and_read_registers	(	modbus_t *	ctx,
		int	write_addr,
		int	write_nb,
		const uint16_t *	src,
		int	read_addr,
		int	read_nb,
		uint16_t *	dest
	)

modbus_write_bit()

int modbus_write_bit	(	modbus_t *	ctx,
		int	coil_addr,
		int	status
	)

modbus_write_bits()

int modbus_write_bits	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		const uint8_t *	data
	)

modbus_write_register()

int modbus_write_register	(	modbus_t *	ctx,
		int	reg_addr,
		int	value
	)

modbus_write_registers()

int modbus_write_registers	(	modbus_t *	ctx,
		int	addr,
		int	nb,
		const uint16_t *	data
	)

Variable Documentation

libmodbus_version_major

const unsigned int libmodbus_version_major

libmodbus_version_micro

const unsigned int libmodbus_version_micro

libmodbus_version_minor

const unsigned int libmodbus_version_minor
