boost::cb_details::iterator< Buff, Traits > Class Template Reference

Random access iterator for the circular buffer. More...

#include <details.hpp>

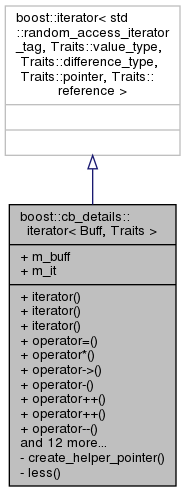

Inheritance diagram for boost::cb_details::iterator< Buff, Traits >:

Collaboration diagram for boost::cb_details::iterator< Buff, Traits >:

Public Types
typedef base_iterator::value_type	value_type
	The type of the elements stored in the circular buffer. More...
typedef base_iterator::pointer	pointer
	Pointer to the element. More...
typedef base_iterator::reference	reference
	Reference to the element. More...
typedef Traits::size_type	size_type
	Size type. More...
typedef base_iterator::difference_type	difference_type
	Difference type. More...

Public Member Functions
	iterator ()
	Default constructor. More...
	iterator (const nonconst_self &it)
	iterator (const Buff *cb, const pointer p)
iterator &	operator= (const iterator &it)
	Assign operator. More...
reference	operator* () const
	Dereferencing operator. More...
pointer	operator-> () const
	Dereferencing operator. More...
difference_type	operator- (const iterator &it) const
	Difference operator. More...
iterator &	operator++ ()
	Increment operator (prefix). More...
iterator	operator++ (int)
	Increment operator (postfix). More...
iterator &	operator-- ()
	Decrement operator (prefix). More...
iterator	operator-- (int)
	Decrement operator (postfix). More...
iterator &	operator+= (difference_type n)
	Iterator addition. More...
iterator	operator+ (difference_type n) const
	Iterator addition. More...
iterator &	operator-= (difference_type n)
	Iterator subtraction. More...
iterator	operator- (difference_type n) const
	Iterator subtraction. More...
reference	operator[] (difference_type n) const
	Element access operator. More...
template<class Traits0 >
bool	operator== (const iterator< Buff, Traits0 > &it) const
	Equality. More...
template<class Traits0 >
bool	operator!= (const iterator< Buff, Traits0 > &it) const
	Inequality. More...
template<class Traits0 >
bool	operator< (const iterator< Buff, Traits0 > &it) const
	Less. More...
template<class Traits0 >
bool	operator> (const iterator< Buff, Traits0 > &it) const
	Greater. More...
template<class Traits0 >
bool	operator<= (const iterator< Buff, Traits0 > &it) const
	Less or equal. More...
template<class Traits0 >
bool	operator>= (const iterator< Buff, Traits0 > &it) const
	Greater or equal. More...

Public Attributes
const Buff *	m_buff
	The circular buffer where the iterator points to. More...
pointer	m_it
	An internal iterator. More...

Private Types
typedef boost::iterator< std::random_access_iterator_tag, typename Traits::value_type, typename Traits::difference_type, typename Traits::pointer, typename Traits::reference >	base_iterator
	Base iterator. More...
typedef iterator< Buff, typename Traits::nonconst_self >	nonconst_self
	Non-const iterator. More...

Private Member Functions
template<class Traits0 >
helper_pointer< Traits0 >	create_helper_pointer (const iterator< Buff, Traits0 > &it) const
	Create helper pointer. More...
template<class InternalIterator0 , class InternalIterator1 >
bool	less (const InternalIterator0 &lhs, const InternalIterator1 &rhs) const
	Less. More...

Detailed Description

template<class Buff, class Traits>
class boost::cb_details::iterator< Buff, Traits >

Random access iterator for the circular buffer.

Parameters

Buff	The type of the underlying circular buffer.
Traits	Basic iterator types.

Note

This iterator is not circular. It was designed for iterating from begin() to end() of the circular buffer.

Member Typedef Documentation

base_iterator

template<class Buff , class Traits >

typedef boost::iterator< std::random_access_iterator_tag, typename Traits::value_type, typename Traits::difference_type, typename Traits::pointer, typename Traits::reference> boost::cb_details::iterator< Buff, Traits >::base_iterator

private

Base iterator.

difference_type

template<class Buff , class Traits >

typedef base_iterator::difference_type boost::cb_details::iterator< Buff, Traits >::difference_type

Difference type.

nonconst_self

template<class Buff , class Traits >

typedef iterator<Buff, typename Traits::nonconst_self> boost::cb_details::iterator< Buff, Traits >::nonconst_self

private

Non-const iterator.

pointer

template<class Buff , class Traits >

typedef base_iterator::pointer boost::cb_details::iterator< Buff, Traits >::pointer

Pointer to the element.

reference

template<class Buff , class Traits >

typedef base_iterator::reference boost::cb_details::iterator< Buff, Traits >::reference

Reference to the element.

size_type

template<class Buff , class Traits >

typedef Traits::size_type boost::cb_details::iterator< Buff, Traits >::size_type

Size type.

value_type

template<class Buff , class Traits >

typedef base_iterator::value_type boost::cb_details::iterator< Buff, Traits >::value_type

The type of the elements stored in the circular buffer.

Constructor & Destructor Documentation

iterator() [1/3]

template<class Buff , class Traits >

boost::cb_details::iterator< Buff, Traits >::iterator ( )

inline

Default constructor.

iterator() [2/3]

template<class Buff , class Traits >

boost::cb_details::iterator< Buff, Traits >::iterator ( const nonconst_self &  it )

inline

iterator() [3/3]

template<class Buff , class Traits >

boost::cb_details::iterator< Buff, Traits >::iterator ( const Buff *  cb, const pointer  p  )

inline

Member Function Documentation

create_helper_pointer()

template<class Buff , class Traits >

template<class Traits0 >

helper_pointer<Traits0> boost::cb_details::iterator< Buff, Traits >::create_helper_pointer ( const iterator< Buff, Traits0 > &  it ) const

inlineprivate

Create helper pointer.

less()

template<class Buff , class Traits >

template<class InternalIterator0 , class InternalIterator1 >

bool boost::cb_details::iterator< Buff, Traits >::less ( const InternalIterator0 &  lhs, const InternalIterator1 &  rhs  ) const

inlineprivate

Less.

operator!=()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator!= ( const iterator< Buff, Traits0 > &  it ) const

inline

Inequality.

operator*()

template<class Buff , class Traits >

reference boost::cb_details::iterator< Buff, Traits >::operator* ( ) const

inline

Dereferencing operator.

operator+()

template<class Buff , class Traits >

iterator boost::cb_details::iterator< Buff, Traits >::operator+ ( difference_type  n ) const

inline

Iterator addition.

operator++() [1/2]

template<class Buff , class Traits >

iterator& boost::cb_details::iterator< Buff, Traits >::operator++ ( )

inline

Increment operator (prefix).

operator++() [2/2]

template<class Buff , class Traits >

iterator boost::cb_details::iterator< Buff, Traits >::operator++ ( int  )

inline

Increment operator (postfix).

operator+=()

template<class Buff , class Traits >

iterator& boost::cb_details::iterator< Buff, Traits >::operator+= ( difference_type  n )

inline

Iterator addition.

operator-() [1/2]

template<class Buff , class Traits >

difference_type boost::cb_details::iterator< Buff, Traits >::operator- ( const iterator< Buff, Traits > &  it ) const

inline

Difference operator.

operator-() [2/2]

template<class Buff , class Traits >

iterator boost::cb_details::iterator< Buff, Traits >::operator- ( difference_type  n ) const

inline

Iterator subtraction.

operator--() [1/2]

template<class Buff , class Traits >

iterator& boost::cb_details::iterator< Buff, Traits >::operator-- ( )

inline

Decrement operator (prefix).

operator--() [2/2]

template<class Buff , class Traits >

iterator boost::cb_details::iterator< Buff, Traits >::operator-- ( int  )

inline

Decrement operator (postfix).

operator-=()

template<class Buff , class Traits >

iterator& boost::cb_details::iterator< Buff, Traits >::operator-= ( difference_type  n )

inline

Iterator subtraction.

operator->()

template<class Buff , class Traits >

pointer boost::cb_details::iterator< Buff, Traits >::operator-> ( ) const

inline

Dereferencing operator.

operator<()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator< ( const iterator< Buff, Traits0 > &  it ) const

inline

Less.

operator<=()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator<= ( const iterator< Buff, Traits0 > &  it ) const

inline

Less or equal.

operator=()

template<class Buff , class Traits >

iterator& boost::cb_details::iterator< Buff, Traits >::operator= ( const iterator< Buff, Traits > &  it )

inline

Assign operator.

operator==()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator== ( const iterator< Buff, Traits0 > &  it ) const

inline

Equality.

operator>()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator> ( const iterator< Buff, Traits0 > &  it ) const

inline

Greater.

operator>=()

template<class Buff , class Traits >

template<class Traits0 >

bool boost::cb_details::iterator< Buff, Traits >::operator>= ( const iterator< Buff, Traits0 > &  it ) const

inline

Greater or equal.

operator[]()

template<class Buff , class Traits >

reference boost::cb_details::iterator< Buff, Traits >::operator[] ( difference_type  n ) const

inline

Element access operator.

Member Data Documentation

m_buff

template<class Buff , class Traits >

const Buff* boost::cb_details::iterator< Buff, Traits >::m_buff

The circular buffer where the iterator points to.

m_it

template<class Buff , class Traits >

pointer boost::cb_details::iterator< Buff, Traits >::m_it

An internal iterator.

---

The documentation for this class was generated from the following file:

• TwiceAsNice/nice/src/jumble/ExtraBoost/boost/circular_buffer/details.hpp
