UdpSocketBase Class Reference

Base class for a upd socket that finds apogee devices on a subnet. More...

#include <UdpSocketBase.h>

Inheritance diagram for UdpSocketBase:

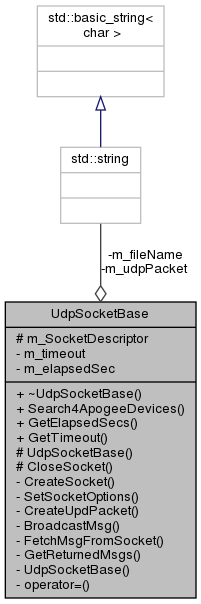

Collaboration diagram for UdpSocketBase:

Public Member Functions
virtual	~UdpSocketBase ()
std::vector< std::string >	Search4ApogeeDevices (const std::string &subnet, uint16_t portNum)
int32_t	GetElapsedSecs ()
int32_t	GetTimeout ()

Protected Member Functions
	UdpSocketBase ()
virtual void	CloseSocket ()=0

Protected Attributes
int32_t	m_SocketDescriptor

Private Member Functions
void	CreateSocket (uint16_t portNum)
void	SetSocketOptions ()
void	CreateUpdPacket ()
void	BroadcastMsg (const std::string &subnet, uint16_t portNum)
std::string	FetchMsgFromSocket ()
std::vector< std::string >	GetReturnedMsgs ()
	UdpSocketBase (const UdpSocketBase &)
UdpSocketBase &	operator= (UdpSocketBase &)

Private Attributes
std::string	m_udpPacket
const std::string	m_fileName
int32_t	m_timeout
int32_t	m_elapsedSec

Detailed Description

Base class for a upd socket that finds apogee devices on a subnet.

This Source Code Form is subject to the terms of the Mozilla Public License, v. 2.0. If a copy of the MPL was not distributed with this file, You can obtain one at http://mozilla.org/MPL/2.0/.

Copyright(c) 2009 Apogee Instruments, Inc.

Constructor & Destructor Documentation

~UdpSocketBase()

UdpSocketBase::~UdpSocketBase ( )

virtual

UdpSocketBase() [1/2]

UdpSocketBase::UdpSocketBase ( )

protected

UdpSocketBase() [2/2]

UdpSocketBase::UdpSocketBase ( const UdpSocketBase &  )

private

Member Function Documentation

BroadcastMsg()

void UdpSocketBase::BroadcastMsg ( const std::string &  subnet, uint16_t  portNum  )

private

CloseSocket()

virtual void UdpSocketBase::CloseSocket ( )

protectedpure virtual

Implemented in UdpSocketWin, and UdpSocketLinux.

CreateSocket()

void UdpSocketBase::CreateSocket ( uint16_t  portNum )

private

CreateUpdPacket()

void UdpSocketBase::CreateUpdPacket ( )

private

FetchMsgFromSocket()

std::string UdpSocketBase::FetchMsgFromSocket ( )

private

GetElapsedSecs()

int32_t UdpSocketBase::GetElapsedSecs ( )

inline

GetReturnedMsgs()

std::vector< std::string > UdpSocketBase::GetReturnedMsgs ( )

private

GetTimeout()

int32_t UdpSocketBase::GetTimeout ( )

inline

operator=()

UdpSocketBase& UdpSocketBase::operator= ( UdpSocketBase &  )

private

Search4ApogeeDevices()

std::vector< std::string > UdpSocketBase::Search4ApogeeDevices	(	const std::string &	subnet,
		uint16_t	portNum
	)

SetSocketOptions()

void UdpSocketBase::SetSocketOptions ( )

private

Member Data Documentation

m_elapsedSec

int32_t UdpSocketBase::m_elapsedSec

private

m_fileName

const std::string UdpSocketBase::m_fileName

private

m_SocketDescriptor

int32_t UdpSocketBase::m_SocketDescriptor

protected

m_timeout

int32_t UdpSocketBase::m_timeout

private

m_udpPacket

std::string UdpSocketBase::m_udpPacket

private

---

The documentation for this class was generated from the following files:

• ln/3rdparty/src/indilib/indi-1.7.4/3rdparty/libapogee/UdpSocketBase.h
• ln/3rdparty/src/indilib/indi-1.7.4/3rdparty/libapogee/UdpSocketBase.cpp
