Base class for apogee cameras. More...

#include <ApogeeCam.h>

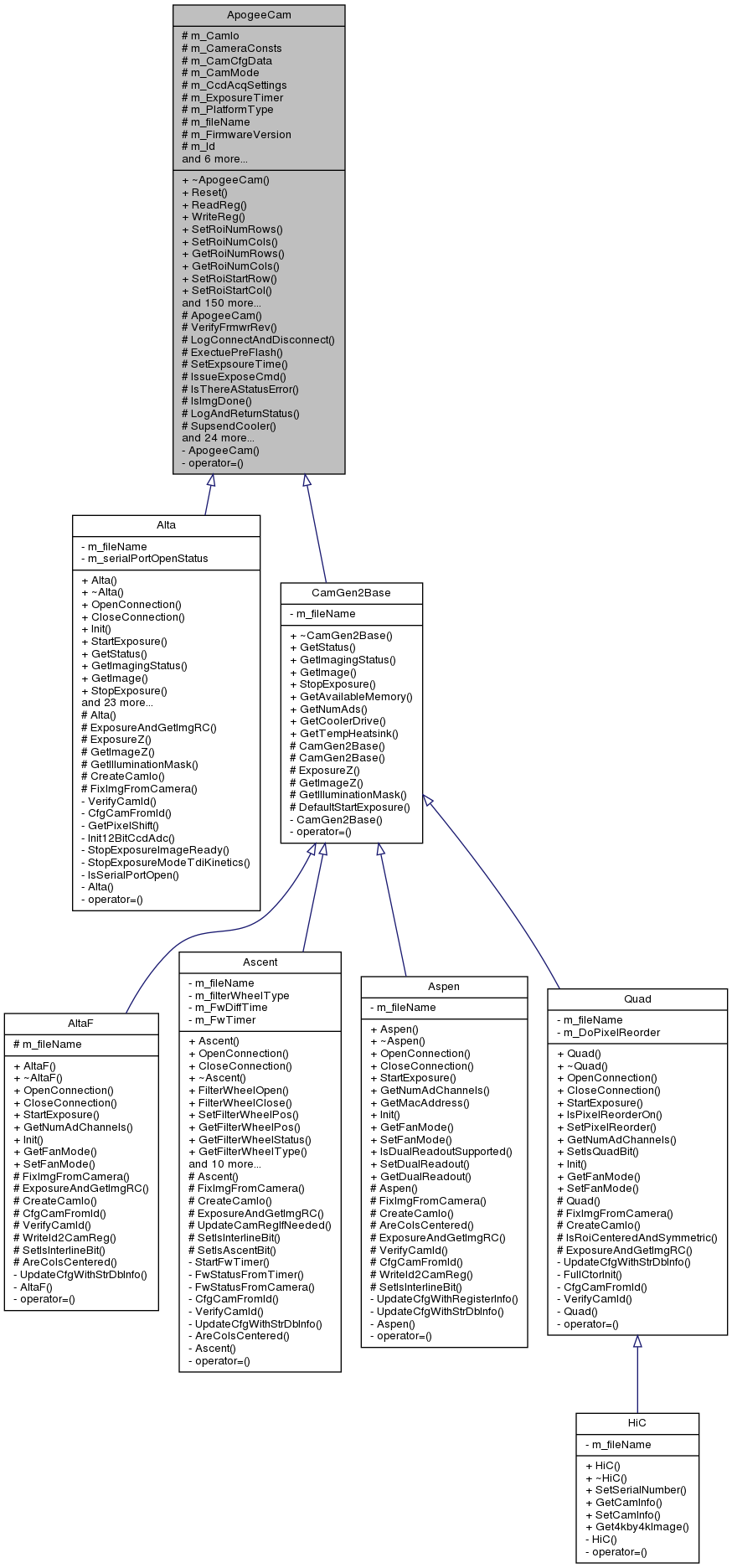

Inheritance diagram for ApogeeCam:

Collaboration diagram for ApogeeCam:

Public Member Functions
virtual	~ApogeeCam ()

void	Reset ()

uint16_t	ReadReg (uint16_t reg)

void	WriteReg (uint16_t reg, uint16_t value)

void	SetRoiNumRows (uint16_t rows)

void	SetRoiNumCols (uint16_t cols)

uint16_t	GetRoiNumRows ()

uint16_t	GetRoiNumCols ()

void	SetRoiStartRow (uint16_t row)

void	SetRoiStartCol (uint16_t col)

uint16_t	GetRoiStartRow ()

uint16_t	GetRoiStartCol ()

void	SetRoiBinRow (uint16_t bin)

uint16_t	GetRoiBinRow ()

void	SetRoiBinCol (uint16_t bin)

uint16_t	GetRoiBinCol ()

uint16_t	GetFirmwareRev ()

void	SetImageCount (uint16_t count)

uint16_t	GetImageCount ()

uint16_t	GetImgSequenceCount ()

void	SetSequenceDelay (double delay)

double	GetSequenceDelay ()

void	SetVariableSequenceDelay (bool variable)

bool	GetVariableSequenceDelay ()

void	SetTdiRate (double TdiRate)

double	GetTdiRate ()

void	SetTdiRows (uint16_t TdiRows)

uint16_t	GetTdiRows ()

uint16_t	GetTdiCounter ()

void	SetTdiBinningRows (uint16_t bin)

uint16_t	GetTdiBinningRows ()

void	SetKineticsSectionHeight (uint16_t height)

uint16_t	GetKineticsSectionHeight ()

void	SetKineticsSections (uint16_t sections)

uint16_t	GetKineticsSections ()

void	SetKineticsShiftInterval (double interval)

double	GetKineticsShiftInterval ()

void	SetShutterStrobePosition (double position)

double	GetShutterStrobePosition ()

void	SetShutterStrobePeriod (double period)

double	GetShutterStrobePeriod ()

void	SetShutterCloseDelay (double delay)

double	GetShutterCloseDelay ()

void	SetCoolerBackoffPoint (double point)

double	GetCoolerBackoffPoint ()

void	SetCoolerSetPoint (double point)

double	GetCoolerSetPoint ()

Apg::CameraMode	GetCameraMode ()

void	SetCameraMode (Apg::CameraMode mode)

void	SetFastSequence (bool TurnOn)

bool	IsFastSequenceOn ()

void	SetBulkDownload (bool TurnOn)

bool	IsBulkDownloadOn ()

void	SetPipelineDownload (bool TurnOn)

bool	IsPipelineDownloadOn ()

void	SetIoPortAssignment (uint16_t assignment)

uint16_t	GetIoPortAssignment ()

void	SetIoPortBlankingBits (uint16_t blankingBits)

uint16_t	GetIoPortBlankingBits ()

void	SetIoPortDirection (uint16_t direction)

uint16_t	GetIoPortDirection ()

void	SetIoPortData (uint16_t data)

uint16_t	GetIoPortData ()

void	SetPreFlash (bool TurnOn)

bool	GetPreFlash ()

void	SetExternalTrigger (bool TurnOn, Apg::TriggerMode trigMode, Apg::TriggerType trigType)

bool	IsTriggerNormEachOn ()

bool	IsTriggerNormGroupOn ()

bool	IsTriggerTdiKinEachOn ()

bool	IsTriggerTdiKinGroupOn ()

bool	IsTriggerExternalShutterOn ()

bool	IsTriggerExternalReadoutOn ()

void	SetShutterState (Apg::ShutterState state)

Apg::ShutterState	GetShutterState ()

bool	IsShutterForcedOpen ()

bool	IsShutterForcedClosed ()

bool	IsShutterOpen ()

void	SetShutterAmpCtrl (bool TurnOn)

bool	IsShutterAmpCtrlOn ()

void	SetCooler (bool TurnOn)

Apg::CoolerStatus	GetCoolerStatus ()

bool	IsCoolerOn ()

double	GetTempCcd ()

void	SetCcdAdcResolution (Apg::Resolution res)

Apg::Resolution	GetCcdAdcResolution ()

void	SetCcdAdcSpeed (Apg::AdcSpeed speed)

Apg::AdcSpeed	GetCcdAdcSpeed ()

uint16_t	GetMaxBinCols ()

uint16_t	GetMaxBinRows ()

uint16_t	GetMaxImgCols ()

uint16_t	GetMaxImgRows ()

uint16_t	GetTotalRows ()

uint16_t	GetTotalCols ()

uint16_t	GetNumOverscanCols ()

bool	IsInterline ()

CamModel::PlatformType	GetPlatformType ()

void	SetLedAState (Apg::LedState state)

Apg::LedState	GetLedAState ()

void	SetLedBState (Apg::LedState state)

Apg::LedState	GetLedBState ()

void	SetLedMode (Apg::LedMode mode)

Apg::LedMode	GetLedMode ()

std::string	GetInfo ()

std::string	GetModel ()

std::string	GetSensor ()

void	SetFlushCommands (bool Disable)

bool	AreFlushCmdsDisabled ()

void	SetPostExposeFlushing (bool Disable)

bool	IsPostExposeFlushingDisabled ()

double	GetPixelWidth ()

double	GetPixelHeight ()

double	GetMinExposureTime ()

double	GetMaxExposureTime ()

bool	IsColor ()

bool	IsCoolingSupported ()

bool	IsCoolingRegulated ()

double	GetInputVoltage ()

CamModel::InterfaceType	GetInterfaceType ()

void	GetUsbVendorInfo (uint16_t &VendorId, uint16_t &ProductId, uint16_t &DeviceId)

bool	IsCCD ()

void	PauseTimer (bool TurnOn)

bool	IsSerialASupported ()

bool	IsSerialBSupported ()

void	SetFlushBinningRows (uint16_t bin)

uint16_t	GetFlushBinningRows ()

bool	IsOverscanDigitized ()

void	SetDigitizeOverscan (const bool TurnOn)

void	SetAdcGain (uint16_t gain, int32_t ad, int32_t channel)

uint16_t	GetAdcGain (int32_t ad, int32_t channel)

void	SetAdcOffset (uint16_t offset, int32_t ad, int32_t channel)

uint16_t	GetAdcOffset (int32_t ad, int32_t channel)

bool	IsInitialized ()

bool	IsConnected ()

void	SetAdSimMode (bool TurnOn)

bool	IsAdSimModeOn ()

void	SetLedBrightness (double PercentIntensity)

double	GetLedBrightness ()

std::string	GetDriverVersion ()

std::string	GetUsbFirmwareVersion ()

std::string	GetSerialNumber ()

CamInfo::StrDb	ReadStrDatabase ()

void	WriteStrDatabase (CamInfo::StrDb &info)

virtual void	OpenConnection (const std::string &ioType, const std::string &DeviceAddr, const uint16_t FirmwareRev, const uint16_t Id)=0

virtual void	CloseConnection ()=0

virtual void	Init ()=0

virtual void	StartExposure (double Duration, bool IsLight)=0

virtual CameraStatusRegs	GetStatus ()=0

virtual Apg::Status	GetImagingStatus ()=0

virtual void	GetImage (std::vector< uint16_t > &out)=0

virtual void	StopExposure (bool Digitize)=0

virtual uint32_t	GetAvailableMemory ()=0

virtual int32_t	GetNumAds ()=0

virtual int32_t	GetNumAdChannels ()=0

virtual double	GetCoolerDrive ()=0

virtual void	SetFanMode (Apg::FanMode mode, bool PreCondCheck=true)=0

virtual Apg::FanMode	GetFanMode ()=0

virtual double	GetTempHeatsink ()=0

void	UpdateAlta (const std::string FilenameCamCon, const std::string FilenameBufCon, const std::string FilenameFx2, const std::string FilenameGpifCamCon, const std::string FilenameGpifBufCon, const std::string FilenameGpifFifo)

void	UpdateAscentOrAltaF (const std::string FilenameFpga, const std::string FilenameFx2, const std::string FilenameDescriptor)

void	UpdateAspen (const std::string FilenameFpga, const std::string FilenameFx2, const std::string FilenameDescriptor, const std::string FilenameWebPage, const std::string FilenameWebServer, const std::string FilenameWebCfg)

Protected Member Functions
	ApogeeCam (CamModel::PlatformType platform)

void	VerifyFrmwrRev ()

void	LogConnectAndDisconnect (bool Connect)

void	ExectuePreFlash ()

void	SetExpsoureTime (double Duration)

void	IssueExposeCmd (bool IsLight)

void	IsThereAStatusError (uint16_t statusReg)

bool	IsImgDone (const CameraStatusRegs &statusObj)

Apg::Status	LogAndReturnStatus (Apg::Status status, const CameraStatusRegs &statusObj)

void	SupsendCooler (bool &resume)

void	ResumeCooler ()

void	WaitForCoolerSuspendBit (const uint16_t mask, const bool IsHigh)

void	InitShutterCloseDelay ()

void	StopExposureModeNorm (bool Digitize)

void	Reset (bool Flush)

void	HardStopExposure (const std::string &msg)

void	GrabImageAndThrowItAway ()

void	AdcParamCheck (const int32_t ad, const int32_t channel, const std::string &fxName)

void	SetNumAdOutputs (const uint16_t num)

bool	CheckAndWaitForStatus (Apg::Status desired, Apg::Status &acutal)

void	CancelExposureNoThrow ()

double	DefaultGetTempHeatsink ()

void	DefaultInit ()

void	ClearAllRegisters ()

void	DefaultCfgCamFromId (uint16_t CameraId)

void	DefaultSetFanMode (Apg::FanMode mode, bool PreCondCheck)

Apg::FanMode	DefaultGetFanMode ()

void	DefaultCloseConnection ()

virtual void	CfgCamFromId (uint16_t CameraId)=0

virtual void	ExposureAndGetImgRC (uint16_t &r, uint16_t &c)=0

virtual uint16_t	ExposureZ ()=0

virtual uint16_t	GetImageZ ()=0

virtual uint16_t	GetIlluminationMask ()=0

virtual void	FixImgFromCamera (const std::vector< uint16_t > &data, std::vector< uint16_t > &out, int32_t rows, int32_t cols)=0

Protected Attributes
std::shared_ptr< CameraIo >	m_CamIo

std::shared_ptr< PlatformData >	m_CameraConsts

std::shared_ptr< CApnCamData >	m_CamCfgData

std::shared_ptr< ModeFsm >	m_CamMode

std::shared_ptr< CcdAcqParams >	m_CcdAcqSettings

std::shared_ptr< ApgTimer >	m_ExposureTimer

CamModel::PlatformType	m_PlatformType

const std::string	m_fileName

uint16_t	m_FirmwareVersion

uint16_t	m_Id

uint16_t	m_NumImgsDownloaded

bool	m_ImageInProgress

bool	m_IsPreFlashOn

bool	m_IsInitialized

bool	m_IsConnected

double	m_LastExposureTime

Private Member Functions
	ApogeeCam (const ApogeeCam &)

ApogeeCam &	operator= (ApogeeCam &)

Detailed Description

Base class for apogee cameras.

This Source Code Form is subject to the terms of the Mozilla Public License, v. 2.0. If a copy of the MPL was not distributed with this file, You can obtain one at http://mozilla.org/MPL/2.0/.

Constructor & Destructor Documentation

◆ ~ApogeeCam()

ApogeeCam::~ApogeeCam ( )

virtual

◆ ApogeeCam() [1/2]

ApogeeCam::ApogeeCam ( CamModel::PlatformType platform )

protected

◆ ApogeeCam() [2/2]

ApogeeCam::ApogeeCam ( const ApogeeCam & )

private

Member Function Documentation

◆ AdcParamCheck()

void ApogeeCam::AdcParamCheck	(	const int32_t	ad,
		const int32_t	channel,
		const std::string &	fxName
	)

protected

◆ AreFlushCmdsDisabled()

bool ApogeeCam::AreFlushCmdsDisabled ( )

Retruns if flushing commands have been disabled.

Exceptions

std::runtime_error

◆ CancelExposureNoThrow()

void ApogeeCam::CancelExposureNoThrow ( )

protected

◆ CfgCamFromId()

virtual void ApogeeCam::CfgCamFromId ( uint16_t CameraId )

protectedpure virtual

Implemented in Alta, Ascent, Aspen, Quad, and AltaF.

◆ CheckAndWaitForStatus()

bool ApogeeCam::CheckAndWaitForStatus	(	Apg::Status	desired,
		Apg::Status &	acutal
	)

protected

◆ ClearAllRegisters()

void ApogeeCam::ClearAllRegisters ( )

protected

◆ CloseConnection()

virtual void ApogeeCam::CloseConnection ( )

pure virtual

Closes the IO connection to the camera. IMPORTANT: If this call is made if camera is in an error condition, then the function will try to reset the interface. Thus it is not guaranteed that the address for the camera will be the same after this function is called.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Quad, AltaF, and Aspen.

◆ DefaultCfgCamFromId()

void ApogeeCam::DefaultCfgCamFromId ( uint16_t CameraId )

protected

◆ DefaultCloseConnection()

void ApogeeCam::DefaultCloseConnection ( )

protected

◆ DefaultGetFanMode()

Apg::FanMode ApogeeCam::DefaultGetFanMode ( )

protected

◆ DefaultGetTempHeatsink()

double ApogeeCam::DefaultGetTempHeatsink ( )

protected

◆ DefaultInit()

void ApogeeCam::DefaultInit ( )

protected

◆ DefaultSetFanMode()

void ApogeeCam::DefaultSetFanMode	(	Apg::FanMode	mode,
		bool	PreCondCheck
	)

protected

◆ ExectuePreFlash()

void ApogeeCam::ExectuePreFlash ( )

protected

◆ ExposureAndGetImgRC()

virtual void ApogeeCam::ExposureAndGetImgRC	(	uint16_t &	r,
		uint16_t &	c
	)

protectedpure virtual

Implemented in Alta, Ascent, Aspen, Quad, and AltaF.

◆ ExposureZ()

virtual uint16_t ApogeeCam::ExposureZ ( )

protectedpure virtual

Implemented in Alta, and CamGen2Base.

◆ FixImgFromCamera()

virtual void ApogeeCam::FixImgFromCamera	(	const std::vector< uint16_t > &	data,
		std::vector< uint16_t > &	out,
		int32_t	rows,
		int32_t	cols
	)

protectedpure virtual

Implemented in Alta, Ascent, Aspen, Quad, and AltaF.

◆ GetAdcGain()

uint16_t ApogeeCam::GetAdcGain	(	int32_t	ad,
		int32_t	channel
	)

This function returns the analog to digital converter gain value for the given ad and channel.

Parameters

[in]	ad	The analog to digital convert to query. Valid range is 0 to 1 - GetNumAds().
[in]	channel	Channel on the ADC to query. Valid range is 0 to 1 - GetNumAdChannels().

Exceptions

std::runtime_error

◆ GetAdcOffset()

uint16_t ApogeeCam::GetAdcOffset	(	int32_t	ad,
		int32_t	channel
	)

This function returns the analog to digital converter offset value for the given ad and channel.

Parameters

[in]	ad	The analog to digital convert to query. Valid range is 0 to 1 - GetNumAds().
[in]	channel	Channel on the ADC to query. Valid range is 0 to 1 - GetNumAdChannels().

Exceptions

std::runtime_error

◆ GetAvailableMemory()

virtual uint32_t ApogeeCam::GetAvailableMemory ( )

pure virtual

Returns the amount of available memory for storing images in terms of kilobytes (KB).

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetCameraMode()

Apg::CameraMode ApogeeCam::GetCameraMode ( )

Returns the camera's operational mode.

Exceptions

std::runtime_error

◆ GetCcdAdcResolution()

Apg::Resolution ApogeeCam::GetCcdAdcResolution ( )

Returns the camera's digitization resolution.

Exceptions

std::runtime_error

◆ GetCcdAdcSpeed()

Apg::AdcSpeed ApogeeCam::GetCcdAdcSpeed ( )

Returns the camera's acquisition speed.

Exceptions

std::runtime_error

◆ GetCoolerBackoffPoint()

double ApogeeCam::GetCoolerBackoffPoint ( )

Returns the cooler backoff temperature in Celsius.

Exceptions

std::runtime_error

◆ GetCoolerDrive()

virtual double ApogeeCam::GetCoolerDrive ( )

pure virtual

Drive level applied to the temp controller. Expressed as a percentage from 0% to 100%.

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetCoolerSetPoint()

double ApogeeCam::GetCoolerSetPoint ( )

Returns the desired cooler temperature in Celsius.

Exceptions

std::runtime_error

◆ GetCoolerStatus()

Apg::CoolerStatus ApogeeCam::GetCoolerStatus ( )

Returns the current cooler status

Exceptions

std::runtime_error

◆ GetDriverVersion()

std::string ApogeeCam::GetDriverVersion ( )

On Windows returns device driver version

Exceptions

std::runtime_error

◆ GetFanMode()

virtual Apg::FanMode ApogeeCam::GetFanMode ( )

pure virtual

Retruns current fan mode. Ascents always return Apg::FanMode_Off.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Aspen, Quad, and AltaF.

◆ GetFirmwareRev()

uint16_t ApogeeCam::GetFirmwareRev ( )

Version number of the camera control firmware.

Exceptions

std::runtime_error

◆ GetFlushBinningRows()

uint16_t ApogeeCam::GetFlushBinningRows ( )

Returns the row (vertical) binning value used during flushing operations.

Exceptions

std::runtime_error

◆ GetIlluminationMask()

virtual uint16_t ApogeeCam::GetIlluminationMask ( )

protectedpure virtual

Implemented in Alta, and CamGen2Base.

◆ GetImage()

virtual void ApogeeCam::GetImage ( std::vector< uint16_t > & out )

pure virtual

Downloads the image data from the camera.

Parameters

[out] out Vector that will recieve the image data

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetImageCount()

uint16_t ApogeeCam::GetImageCount ( )

Returns the number of sequence images set by the user.

Exceptions

std::runtime_error

◆ GetImageZ()

virtual uint16_t ApogeeCam::GetImageZ ( )

protectedpure virtual

Implemented in Alta, and CamGen2Base.

◆ GetImagingStatus()

virtual Apg::Status ApogeeCam::GetImagingStatus ( )

pure virtual

Returns the current imaging state of the camera.

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetImgSequenceCount()

uint16_t ApogeeCam::GetImgSequenceCount ( )

Returns the number of images in a sequence the camera has acquired. The camera updates this value after the StartExposure function has been called.

Exceptions

std::runtime_error

◆ GetInfo()

std::string ApogeeCam::GetInfo ( )

Returns information on the camera such as model, sensor, ids, etc.

Exceptions

std::runtime_error

◆ GetInputVoltage()

double ApogeeCam::GetInputVoltage ( )

Returns the operating input voltage to the camera.

Exceptions

std::runtime_error

◆ GetInterfaceType()

CamModel::InterfaceType ApogeeCam::GetInterfaceType ( )

Retruns the camera interface type.

Exceptions

std::runtime_error

◆ GetIoPortAssignment()

uint16_t ApogeeCam::GetIoPortAssignment ( )

Returns the I/O port's signal usage.

Exceptions

std::runtime_error

◆ GetIoPortBlankingBits()

uint16_t ApogeeCam::GetIoPortBlankingBits ( )

Exceptions

std::runtime_error

◆ GetIoPortData()

uint16_t ApogeeCam::GetIoPortData ( )

Returns the I/O port data.

Exceptions

std::runtime_error

◆ GetIoPortDirection()

uint16_t ApogeeCam::GetIoPortDirection ( )

Returns the IO Port Direction.

Exceptions

std::runtime_error

◆ GetKineticsSectionHeight()

uint16_t ApogeeCam::GetKineticsSectionHeight ( )

Returns the vertical height for a Kinetics Mode section.

Exceptions

std::runtime_error

◆ GetKineticsSections()

uint16_t ApogeeCam::GetKineticsSections ( )

Retruns the number of sections in a Kinetics Mode image.

Exceptions

std::runtime_error

◆ GetKineticsShiftInterval()

double ApogeeCam::GetKineticsShiftInterval ( )

Returns the incremental rate between Kinetics Mode sections.

Exceptions

std::runtime_error

◆ GetLedAState()

Apg::LedState ApogeeCam::GetLedAState ( )

Returns the state of LED light A.

Exceptions

std::runtime_error

◆ GetLedBrightness()

double ApogeeCam::GetLedBrightness ( )

Returns brightness/intensity level of the LED light within the cap of the camera head. Expressed as a percentage from 0% to 100%.

Exceptions

std::runtime_error

◆ GetLedBState()

Apg::LedState ApogeeCam::GetLedBState ( )

Returns the state of LED light B.

Exceptions

std::runtime_error

◆ GetLedMode()

Apg::LedMode ApogeeCam::GetLedMode ( )

Returns the mode of LED status lights.

Exceptions

std::runtime_error

◆ GetMaxBinCols()

uint16_t ApogeeCam::GetMaxBinCols ( )

Returns the maximum number of binning columns (horizontal) for the camera.

Exceptions

std::runtime_error

◆ GetMaxBinRows()

uint16_t ApogeeCam::GetMaxBinRows ( )

Returns the maximum number of binning rows (vertical) for the camera.

Exceptions

std::runtime_error

◆ GetMaxExposureTime()

double ApogeeCam::GetMaxExposureTime ( )

Returns the maximum exposure duration.

Exceptions

std::runtime_error

◆ GetMaxImgCols()

uint16_t ApogeeCam::GetMaxImgCols ( )

Returns number of imaging columns in terms of unbinned pixels. This value depends on the camera's sensor geometry.

Exceptions

std::runtime_error

◆ GetMaxImgRows()

uint16_t ApogeeCam::GetMaxImgRows ( )

Returns number of imaging rows in terms of unbinned pixels. This value depends on the camera's sensor geometry.

Exceptions

std::runtime_error

◆ GetMinExposureTime()

double ApogeeCam::GetMinExposureTime ( )

Returns the suggested minimum exposure duration, based on the camera's configuration.

Exceptions

std::runtime_error

◆ GetModel()

std::string ApogeeCam::GetModel ( )

Returns a camera model.

Exceptions

std::runtime_error

◆ GetNumAdChannels()

virtual int32_t ApogeeCam::GetNumAdChannels ( )

pure virtual

Returns the number of channels on the camera's AD converters.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Quad, AltaF, and Aspen.

◆ GetNumAds()

virtual int32_t ApogeeCam::GetNumAds ( )

pure virtual

Returns the number of analog to digital (AD) converters on the camera.

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetNumOverscanCols()

uint16_t ApogeeCam::GetNumOverscanCols ( )

Returns the number of overscan columns in terms of unbinned pixels. This variable depends upon the particular sensor used within the camera.

Exceptions

std::runtime_error

◆ GetPixelHeight()

double ApogeeCam::GetPixelHeight ( )

Returns sensor's pixels height in micrometers.

Exceptions

std::runtime_error

◆ GetPixelWidth()

double ApogeeCam::GetPixelWidth ( )

Returns sensor's pixels width in micrometers.

Exceptions

std::runtime_error

◆ GetPlatformType()

CamModel::PlatformType ApogeeCam::GetPlatformType ( )

Returns camera platform type.

Exceptions

std::runtime_error

◆ GetPreFlash()

bool ApogeeCam::GetPreFlash ( )

inline

Returns IR pre-flash state ( true = turned on, false = turned off )

Exceptions

std::runtime_error

◆ GetRoiBinCol()

uint16_t ApogeeCam::GetRoiBinCol ( )

Returns the number of binning columns.

Exceptions

std::runtime_error

◆ GetRoiBinRow()

uint16_t ApogeeCam::GetRoiBinRow ( )

Returns the number of binning rows.

Exceptions

std::runtime_error

◆ GetRoiNumCols()

uint16_t ApogeeCam::GetRoiNumCols ( )

Returns the number of imaging ROI columns

Exceptions

std::runtime_error

◆ GetRoiNumRows()

uint16_t ApogeeCam::GetRoiNumRows ( )

Returns the number of imaging ROI rows

Exceptions

std::runtime_error

◆ GetRoiStartCol()

uint16_t ApogeeCam::GetRoiStartCol ( )

Returns the starting column for the imaging ROI

Exceptions

std::runtime_error

◆ GetRoiStartRow()

uint16_t ApogeeCam::GetRoiStartRow ( )

Returns the starting row for the imaging ROI

Exceptions

std::runtime_error

◆ GetSensor()

std::string ApogeeCam::GetSensor ( )

Returns the sensor model installed in the camera

Exceptions

std::runtime_error

◆ GetSequenceDelay()

double ApogeeCam::GetSequenceDelay ( )

Returns he amount of time between the close of the shutter and the beginning of the sensor readout.

Exceptions

std::runtime_error

◆ GetSerialNumber()

std::string ApogeeCam::GetSerialNumber ( )

Returns a special OEM-specific serial number.

Exceptions

std::runtime_error

◆ GetShutterCloseDelay()

double ApogeeCam::GetShutterCloseDelay ( )

Returns the shutter close delay

Exceptions

std::runtime_error

◆ GetShutterState()

Apg::ShutterState ApogeeCam::GetShutterState ( )

Returns the current shutter state.

Exceptions

std::runtime_error

◆ GetShutterStrobePeriod()

double ApogeeCam::GetShutterStrobePeriod ( )

Returns ths shutter strobe period.

Exceptions

std::runtime_error

◆ GetShutterStrobePosition()

double ApogeeCam::GetShutterStrobePosition ( )

Returns the shutter strobe position.

Exceptions

std::runtime_error

◆ GetStatus()

virtual CameraStatusRegs ApogeeCam::GetStatus ( )

pure virtual

Returns the camera's status registers as a CameraStatusRegs class.

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetTdiBinningRows()

uint16_t ApogeeCam::GetTdiBinningRows ( )

Returns the number TDI binning rows

Exceptions

std::runtime_error

◆ GetTdiCounter()

uint16_t ApogeeCam::GetTdiCounter ( )

Dynamically incrementing count during a TDI image. The final value of TDICounter equals TDIRows. Valid range is between 1 and 65535.

Exceptions

std::runtime_error

◆ GetTdiRate()

double ApogeeCam::GetTdiRate ( )

Returns the rate between TDI rows.

Exceptions

std::runtime_error

◆ GetTdiRows()

uint16_t ApogeeCam::GetTdiRows ( )

Returns the total number of rows in the TDI image.

Exceptions

std::runtime_error

◆ GetTempCcd()

double ApogeeCam::GetTempCcd ( )

Returns the current CCD temperature in degrees Celsius.

Exceptions

std::runtime_error

◆ GetTempHeatsink()

virtual double ApogeeCam::GetTempHeatsink ( )

pure virtual

Returns the current Heatsink temperature in degrees Celsius. The Ascent camera platform does not support reading the heatsink temperature, and this property will return -255.

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ GetTotalCols()

uint16_t ApogeeCam::GetTotalCols ( )

Returns the total number of physical columns on the CCD. This value depends on the camera's sensor geometry.

Exceptions

std::runtime_error

◆ GetTotalRows()

uint16_t ApogeeCam::GetTotalRows ( )

Returns the total number of physical rows on the CCD. This value depends on the camera's sensor geometry.

Exceptions

std::runtime_error

◆ GetUsbFirmwareVersion()

std::string ApogeeCam::GetUsbFirmwareVersion ( )

Returns USB firmware version.

Exceptions

std::runtime_error

◆ GetUsbVendorInfo()

void ApogeeCam::GetUsbVendorInfo	(	uint16_t &	VendorId,
		uint16_t &	ProductId,
		uint16_t &	DeviceId
	)

Returns the USB ids associated with the camera system.

Parameters

[out]	VendorId	USB vendor id
[out]	ProductId	USB product id
[out]	DeviceId	USB device id

Exceptions

std::runtime_error

◆ GetVariableSequenceDelay()

bool ApogeeCam::GetVariableSequenceDelay ( )

Returns the variable sequence delay state.

Exceptions

std::runtime_error

◆ GrabImageAndThrowItAway()

void ApogeeCam::GrabImageAndThrowItAway ( )

protected

◆ HardStopExposure()

void ApogeeCam::HardStopExposure ( const std::string & msg )

protected

◆ Init()

virtual void ApogeeCam::Init ( )

pure virtual

Method for initializing the Apogee camera system. Must be called once before image acquisition.

Exceptions

std::runtime_error

Implemented in Ascent, Aspen, Quad, AltaF, and Alta.

◆ InitShutterCloseDelay()

void ApogeeCam::InitShutterCloseDelay ( )

protected

◆ IsAdSimModeOn()

bool ApogeeCam::IsAdSimModeOn ( )

Status of camera simulator mode

Exceptions

std::runtime_error

◆ IsBulkDownloadOn()

bool ApogeeCam::IsBulkDownloadOn ( )

Returns the state of bulk downloads (true = on, false = off)

Exceptions

std::runtime_error

◆ IsCCD()

bool ApogeeCam::IsCCD ( )

Returns true if the sensor is a CCD; false if CMOS

Exceptions

std::runtime_error

◆ IsColor()

bool ApogeeCam::IsColor ( )

Returns true is CCD sensor has color dyes, and false otherwise

Exceptions

std::runtime_error

◆ IsConnected()

bool ApogeeCam::IsConnected ( )

inline

Returns if the host is connected to a camera

◆ IsCoolerOn()

bool ApogeeCam::IsCoolerOn ( )

Returns the state of the camera's cooler (true = on, false = off);

Exceptions

std::runtime_error

◆ IsCoolingRegulated()

bool ApogeeCam::IsCoolingRegulated ( )

Returns true if the camera supports regulated cooling, false if regulated cooling is not available.

Exceptions

std::runtime_error

◆ IsCoolingSupported()

bool ApogeeCam::IsCoolingSupported ( )

Returns true if the camera supports cooling, false if no cooling is available.

Exceptions

std::runtime_error

◆ IsFastSequenceOn()

bool ApogeeCam::IsFastSequenceOn ( )

Retruns the state of fast sequences (true = on, false = off)

Exceptions

std::runtime_error

◆ IsImgDone()

bool ApogeeCam::IsImgDone ( const CameraStatusRegs & statusObj )

protected

◆ IsInitialized()

bool ApogeeCam::IsInitialized ( )

inline

Returns if the Init() function has been called.

◆ IsInterline()

bool ApogeeCam::IsInterline ( )

Returns true if the sensor is an Interline CCD and false otherwise.

Exceptions

std::runtime_error

◆ IsOverscanDigitized()

bool ApogeeCam::IsOverscanDigitized ( )

Returns: The digitize overscan state (on = true, off = false)

Exceptions

std::runtime_error

◆ IsPipelineDownloadOn()

bool ApogeeCam::IsPipelineDownloadOn ( )

Returns the state of pipelined downloads (true = on, false = off)

Exceptions

std::runtime_error

◆ IsPostExposeFlushingDisabled()

bool ApogeeCam::IsPostExposeFlushingDisabled ( )

Retruns if post exposure flushing has been disabled.

Exceptions

std::runtime_error

◆ IsSerialASupported()

bool ApogeeCam::IsSerialASupported ( )

Returns whether the camera supports Serial Port A. NOTE: Ascent cameras do not have serial ports.

Exceptions

std::runtime_error

◆ IsSerialBSupported()

bool ApogeeCam::IsSerialBSupported ( )

Returns whether the camera supports Serial Port B. NOTE: Ascent cameras do not have serial ports.

Exceptions

std::runtime_error

◆ IsShutterAmpCtrlOn()

bool ApogeeCam::IsShutterAmpCtrlOn ( )

Returns shutter amp control state (true = CCD voltage disabled, false = CCD voltage enabled)

Exceptions

std::runtime_error

◆ IsShutterForcedClosed()

bool ApogeeCam::IsShutterForcedClosed ( )

Returns if the shutter is in the Apg::ShutterState_ForceClosed state (true = yes, false = no)

Exceptions

std::runtime_error

◆ IsShutterForcedOpen()

bool ApogeeCam::IsShutterForcedOpen ( )

Returns if the shutter is in the Apg::ShutterState_ForceOpen state (true = yes, false = no)

Exceptions

std::runtime_error

◆ IsShutterOpen()

bool ApogeeCam::IsShutterOpen ( )

Returns shutter state (true = open, false = closed)

Exceptions

std::runtime_error

◆ IssueExposeCmd()

void ApogeeCam::IssueExposeCmd ( bool IsLight )

protected

◆ IsThereAStatusError()

void ApogeeCam::IsThereAStatusError ( uint16_t statusReg )

protected

◆ IsTriggerExternalReadoutOn()

bool ApogeeCam::IsTriggerExternalReadoutOn ( )

Returns true if external readout trigger is on, false if off.

Exceptions

std::runtime_error

◆ IsTriggerExternalShutterOn()

bool ApogeeCam::IsTriggerExternalShutterOn ( )

Returns true if external shutter trigger is on, false if off.

Exceptions

std::runtime_error

◆ IsTriggerNormEachOn()

bool ApogeeCam::IsTriggerNormEachOn ( )

Returns true if normal each trigger is on, false if off.

Exceptions

std::runtime_error

◆ IsTriggerNormGroupOn()

bool ApogeeCam::IsTriggerNormGroupOn ( )

Returns true if normal group trigger is on, false if off.

Exceptions

std::runtime_error

◆ IsTriggerTdiKinEachOn()

bool ApogeeCam::IsTriggerTdiKinEachOn ( )

Returns true if TDI-Kinetrics each trigger is on, false if off.

Exceptions

std::runtime_error

◆ IsTriggerTdiKinGroupOn()

bool ApogeeCam::IsTriggerTdiKinGroupOn ( )

Returns true if TDI-Kinetrics group trigger is on, false if off.

Exceptions

std::runtime_error

◆ LogAndReturnStatus()

Apg::Status ApogeeCam::LogAndReturnStatus	(	Apg::Status	status,
		const CameraStatusRegs &	statusObj
	)

protected

◆ LogConnectAndDisconnect()

void ApogeeCam::LogConnectAndDisconnect ( bool Connect )

protected

◆ OpenConnection()

virtual void ApogeeCam::OpenConnection	(	const std::string &	ioType,
		const std::string &	DeviceAddr,
		const uint16_t	FirmwareRev,
		const uint16_t	Id
	)

pure virtual

Opens a connection from the PC to the camera. The results strings from the FindDeviceUsb::Find() and the FindDeviceEthernet::Find() functions. provide the input into this function.

Parameters

[in]	ioType	specifies camera IO interface 'usb' or 'ethernet'
[in]	DeviceAddr	specifies the address of the camera on the interface
[in]	FirmwareRev	Camera's firmware revision. Used to verify interface connection.
[in]	Id	Camera's ID. Used to verify interface connection and setup camera specfic parameters.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Quad, AltaF, and Aspen.

◆ operator=()

ApogeeCam& ApogeeCam::operator= ( ApogeeCam & )

private

◆ PauseTimer()

void ApogeeCam::PauseTimer ( bool TurnOn )

Pauses the current exposure by closing the shutter and pausing the exposure timer.

Parameters

[in] TurnOn A state variable that controls the pausing of the exposure timer. A value of true will issue a command to pause the timer. A value offalse will issue a command to unpause the timer. Multiple calls with this parameter set consistently to either state (i.e. back-to-back true states) have no effect.

Exceptions

std::runtime_error

◆ ReadReg()

uint16_t ApogeeCam::ReadReg ( uint16_t reg )

Parameters

[in] reg Register

Returns: Register value

Exceptions

std::runtime_error

◆ ReadStrDatabase()

CamInfo::StrDb ApogeeCam::ReadStrDatabase ( )

◆ Reset() [1/2]

void ApogeeCam::Reset ( )

Resets the camera's internal pixel processing engines, and then starts the system flushing again. This function will cancel and pending expsoures. For more information on when to use this function please review the Exception Handling page.

Exceptions

std::runtime_error

◆ Reset() [2/2]

void ApogeeCam::Reset ( bool Flush )

protected

◆ ResumeCooler()

void ApogeeCam::ResumeCooler ( )

protected

◆ SetAdcGain()

void ApogeeCam::SetAdcGain	(	uint16_t	gain,
		int32_t	ad,
		int32_t	channel
	)

Sets the analog to digital converter gain value for the given ad and channel.

Parameters

[in]	gain	The new gain value. 0-1023 is a valid range for Alta cameras. 0-63 is a valid range for Ascent cameras.
[in]	ad	The analog to digital convert to set. Valid range is 0 to 1 - GetNumAds().
[in]	channel	Channel on the ADC to set. Valid range is 0 to 1 - GetNumAdChannels().

Exceptions

std::runtime_error

◆ SetAdcOffset()

void ApogeeCam::SetAdcOffset	(	uint16_t	offset,
		int32_t	ad,
		int32_t	channel
	)

Sets the analog to digital converter offset value for the given ad and channel.

Parameters

[in]	offset	The new offset value. 0-255 is a valid range for Alta cameras. 0-511 is a valid range for Ascent cameras.
[in]	ad	The analog to digital convert to set. Valid range is 0 to 1 - GetNumAds().
[in]	channel	Channel on the ADC to set. Valid range is 0 to 1 - GetNumAdChannels().

Exceptions

std::runtime_error

◆ SetAdSimMode()

void ApogeeCam::SetAdSimMode ( bool TurnOn )

Specifies that the camera operation should be defined using simulated data for image parameters. param [in] TurnOn True turns on simulator mode. False turns of the simulator.

Exceptions

std::runtime_error

◆ SetBulkDownload()

void ApogeeCam::SetBulkDownload ( bool TurnOn )

Enables/Disables how image data will be retrieved from the camera during a sequence. For USB camera systems, this variable is used to determine whether the returned data will be downloaded in bulk, or streamed as it becomes available. By definition, bulk download must be false when the continuous imaging is enabled, since setting this variable true assumes that the number of images in a series is known in advance of starting the exposure. The default value for this variable after initialization is true.

Parameters

[in] TurnOn true enables bulk download, false disables this feature

Exceptions

std::runtime_error

◆ SetCameraMode()

void ApogeeCam::SetCameraMode ( Apg::CameraMode mode )

Returns the camera's operational mode. The default value for this variable after initialization is Apg::CameraMode_Normal.

Exceptions

std::runtime_error

◆ SetCcdAdcResolution()

void ApogeeCam::SetCcdAdcResolution ( Apg::Resolution res )

Sets the camera's digitization resolution. NOTE: This feature is scheduled for deprecation and only functional on AltaU cameras. Please use the SetCcdAdcSpeed(Apg::AdcSpeed speed) function; 16bit = Normal, 12bit = Fast.

Exceptions

std::runtime_error

◆ SetCcdAdcSpeed()

void ApogeeCam::SetCcdAdcSpeed ( Apg::AdcSpeed speed )

Sets the camera's acquisition speed. The default value after initialization is Apg::AdcSpeed_Normal.
For the AltaU setting the camera's speed to normal/fast is the equivalant of SetCcdAdcResolution( 16bit/12bit ). Calling GetCcdAdcResolution() after setting the ADC speed will return 16bit for normal speed and 12bit for fast.

◆ SetCooler()

void ApogeeCam::SetCooler ( bool TurnOn )

Sets the state of the camera's cooler

Parameters

[in] TurnOn true = on, false = off

Exceptions

std::runtime_error

◆ SetCoolerBackoffPoint()

void ApogeeCam::SetCoolerBackoffPoint ( double point )

Sets the cooler backoff temperature of the cooler subsystem in Celsius. If the cooler is unable to reach the desired cooler set point, the Backoff Point is number of degrees up from the lowest point reached. Used to prevent the cooler from being constant driven with max power to an unreachable temperature. The default value of this variable after initialization can vary depending on camera model, but is typically set at 2.0 degrees Celsius.

Parameters

[in] point Desired backoff point. Must be greater than 0.

Exceptions

std::runtime_error

◆ SetCoolerSetPoint()

void ApogeeCam::SetCoolerSetPoint ( double point )

Sets the desired cooler temperature in Celsius. If the input set point cannot be reached, the cooler subsystem will determine a new set point based on the backoff point and change the cooler status to Apg::CoolerStatus_Revision. An application should reread this property to see the new set point that the system is using. Once the application rereads this property, the status of Apg::CoolerStatus_Revision will be cleared.

Parameters

[in] point Desired cooler set point

Exceptions

std::runtime_error

◆ SetDigitizeOverscan()

void ApogeeCam::SetDigitizeOverscan ( const bool TurnOn )

Function is a no op. It is in this interface for backwards compatibility purposes. The way to get the overscan data is to set the ROI to capture it.

Parameters

[in] TurnOn Toggling the digitize overscan variable

Exceptions

std::runtime_error

◆ SetExpsoureTime()

void ApogeeCam::SetExpsoureTime ( double Duration )

protected

◆ SetExternalTrigger()

void ApogeeCam::SetExternalTrigger	(	bool	TurnOn,
		Apg::TriggerMode	trigMode,
		Apg::TriggerType	trigType
	)

Sets the external trigger mode and type.
For more information see Hardware Trigger page

Parameters

[in]	TurnOn	true activates the trigger type and mode, false deactivates it
[in]	trigMode	Trigger mode
[in]	trigType	Trigger Type

Exceptions

std::runtime_error

◆ SetFanMode()

virtual void ApogeeCam::SetFanMode	(	Apg::FanMode	mode,
		bool	PreCondCheck = `true`
	)

pure virtual

Sets the current fan speed. The default value of this variable after initialization is Apg::FanMode_Low. Ascent cameras do not support programmable fan speed, thus writes using this property have no effect.

Parameters

[in]	mode	Desired fan mode
[in]	PreCondCheck	Setting PreCondCheck to false results in the pre-condition checking to be skipped. PreCondCheck should ALWAYS be set to true.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Aspen, Quad, and AltaF.

◆ SetFastSequence()

void ApogeeCam::SetFastSequence ( bool TurnOn )

Enables/Disables very fast back to back exposures for interline CCDs only. Also referred to as Ratio Mode. The default value for this variable after initialization is false. Note that this property cannot be used in conjunction with the TriggerNormalEach property, since progressive scan is defined as having the least possible time between exposures. However, the FastSequence property may be used with a single trigger to start a series of images (using TriggerNormalGroup).

Parameters

[in] TurnOn true enables fast sequences, false disables this feature

Exceptions

std::runtime_error

◆ SetFlushBinningRows()

void ApogeeCam::SetFlushBinningRows ( uint16_t bin )

Sets the row (vertical) binning value used during flushing operations. The default value after camera initialization is sensor-specific. NOTE: This is a specialized property designed for unique experiments. Applications and users will not normally need to modify this variable from the default value.

Parameters

[in] bin The valid range for this property is between 1 and GetMaxBinRows().

Exceptions

std::runtime_error

◆ SetFlushCommands()

void ApogeeCam::SetFlushCommands ( bool Disable )

Enables/Disables any flushing command sent by the software to be recognized or unrecognized by the camera control firmware. This property may be used with SetPostExposeFlushing( bool Disable ) to completely stop all flushing operations within the camera. The default value of this variable after initialization is false. WARNING: This is a highly specialized property designed for very unique experiments. Applications and users will not normally need to modify this variable from the default value.

Parameters

[in] Disable True disables flushing, false allows flushing after commands

Exceptions

std::runtime_error

◆ SetImageCount()

void ApogeeCam::SetImageCount ( uint16_t count )

Sets the number of images to take in an image sequence.

Parameters

[in] count Number of image in the sequence to acquire.

Exceptions

std::runtime_error

◆ SetIoPortAssignment()

void ApogeeCam::SetIoPortAssignment ( uint16_t assignment )

Defines the signal usage for the I/O port. This function is only valid on AltaU systems.

Bit 0 (I/O Signal 1): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used as a trigger input.
Bit 1 (I/O Signal 2): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used as a shutter output.
Bit 2 (I/O Signal 3): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used as a shutter strobe output.
Bit 3 (I/O Signal 4): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used as an external shutter input.
Bit 4 (I/O Signal 5): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used for starting readout via an external signal.
Bit 5 (I/O Signal 6): A value of zero (0) indicates that the I/O bit is user defined according to the specified IoPortDirection. A value of one (1) indicates that this I/O will be used for an input timer pulse.
Parameters

[in] assignment The valid range is for the 6 LSBs, 0x0 to 0x3F.

Exceptions

std::runtime_error

◆ SetIoPortBlankingBits()

void ApogeeCam::SetIoPortBlankingBits ( uint16_t blankingBits )

Exceptions

std::runtime_error

◆ SetIoPortData()

void ApogeeCam::SetIoPortData ( uint16_t data )

Send data to the I/O port. Applications are responsible for toggling bits, i.e., if Bit 2 of the I/O port is specified as an OUT signal, and a 0x1 is written to this bit, it will remain 0x1 until 0x0 is written to the same bit.

Parameters

[in] data Valid range of this property is for the 6 LSBs, 0x0 to 0x3F.

Exceptions

std::runtime_error

◆ SetIoPortDirection()

void ApogeeCam::SetIoPortDirection ( uint16_t direction )

This function is only valid on AltaU camera systems.
On Ascent camera systems, the direction cannot be configured.
Pins 1, 4, and 5 are always input and pins 2, 3, and 6 are always output.

Bit 0: I/O Signal 1 (0=IN and 1=OUT)
Bit 1: I/O Signal 2 (0=IN and 1=OUT)
Bit 2: I/O Signal 3 (0=IN and 1=OUT)
Bit 3: I/O Signal 4 (0=IN and 1=OUT)
Bit 4: I/O Signal 5 (0=IN and 1=OUT)
Bit 5: I/O Signal 6 (0=IN and 1=OUT)
Parameters

[in] direction Valid range is for the 6 LSBs, 0x0 to 0x3F.

Exceptions

std::runtime_error

◆ SetKineticsSectionHeight()

void ApogeeCam::SetKineticsSectionHeight ( uint16_t height )

Set the vertical height for a Kinetics Mode section. Modifying this property also changes the value of the SetTdiBinningRows( uint16_t bin ) variable. The default value for this variable after initialization is 1.

Parameters

[in] height Valid range for this variable is between 1 and the corresponding value of GetMaxBinRows().

Exceptions

std::runtime_error

◆ SetKineticsSections()

void ApogeeCam::SetKineticsSections ( uint16_t sections )

Sets the number of sections in a Kinetics Mode image. Modifying this property also changes the value of the SetTdiRows( uint16_t TdiRows )

Parameters

[in] sections Valid range is 1 to 65535.

Exceptions

std::runtime_error

◆ SetKineticsShiftInterval()

void ApogeeCam::SetKineticsShiftInterval ( double interval )

Sets the incremental rate between Kinetics Mode sections. The default value for this variable after initialization is 0.100s. Modifying this property also changes the value of SetTdiRate( double TdiRate ).

Parameters

[in] interval The valid range is from 5.12us to 336ms.

Exceptions

std::runtime_error

◆ SetLedAState()

void ApogeeCam::SetLedAState ( Apg::LedState state )

Sets the state of LED light A.

Parameters

[in] state Desired Apg::LedState

Exceptions

std::runtime_error

◆ SetLedBrightness()

void ApogeeCam::SetLedBrightness ( double PercentIntensity )

Sets brightness/intensity level of the LED light within the cap of the camera head. The default value of this variable after initialization is 0%.

Parameters

[in] PercentIntensity Valid range is 0-100.

Exceptions

std::runtime_error

◆ SetLedBState()

void ApogeeCam::SetLedBState ( Apg::LedState state )

Sets the state of LED light B.

Parameters

[in] state Desired Apg::LedState

Exceptions

std::runtime_error

◆ SetLedMode()

void ApogeeCam::SetLedMode ( Apg::LedMode mode )

Sets the mode of LED status lights.

Parameters

[in] mode Desired Apg::LedMode

Exceptions

std::runtime_error

◆ SetNumAdOutputs()

void ApogeeCam::SetNumAdOutputs ( const uint16_t num )

protected

◆ SetPipelineDownload()

void ApogeeCam::SetPipelineDownload ( bool TurnOn )

For USB camera systems, this variable is used to determine when ImageReady status is returned. When on, camera will return ImageReady status as soon as there is any data to download. When off, camera will not return ImageReady status until all data has been digitized and is ready for download. Turn on for faster downloads and increased frame rate in exchange for higher noise. Which option is best depends on your application. The default value for this variable after initialization is true.

Parameters

[in] TurnOn true enables pipelined download, false disables this feature

Exceptions

std::runtime_error

◆ SetPostExposeFlushing()

void ApogeeCam::SetPostExposeFlushing ( bool Disable )

Enables/Disables the camera control firmware to/from immediately beginning an internal flush cycle after an exposure. This property may be used with SetFlushCommands( bool Disable ) to completely stop all flushing operations within the camera. The default value of this variable after initialization is false. WARNING: This is a highly specialized property designed for very unique experiments. Applications and users will not normally need to modify this variable from the default value.

Parameters

[in] Disable True disables flushing, false allows flushing after exposures

Exceptions

std::runtime_error

◆ SetPreFlash()

void ApogeeCam::SetPreFlash ( bool TurnOn )

inline

Toggles IR pre-flash control. IR pre-flash normalizes the sensor before an image is taken with a flash of IR. false is the default camera state. \ param [in] TurnOn, true turn IR pre-flash on, false turns pre-flash off.

Exceptions

std::runtime_error

◆ SetRoiBinCol()

void ApogeeCam::SetRoiBinCol ( uint16_t bin )

Sets the number of columns to bin (horizontal binning). Default value is 1. Binning is not allowed in Apg::AdcSpeed_Video mode or for quad readout ccds.

Parameters

[in] bin Valid range is 1 - GetMaxBinCols()

Exceptions

std::runtime_error

◆ SetRoiBinRow()

void ApogeeCam::SetRoiBinRow ( uint16_t bin )

Sets the number of rows to bin (vertical binning). Default value is 1. Binning is not allowed in Apg::AdcSpeed_Video mode or for quad readout ccds.

Parameters

[in] bin Valid range is 1 - GetMaxBinRows()

Exceptions

std::runtime_error

◆ SetRoiNumCols()

void ApogeeCam::SetRoiNumCols ( uint16_t cols )

Sets the number of imaging ROI columns. The default value is the GetMaxImgCols().

Parameters

[in] cols 1 to GetMaxImgCols() is the valid value range for normal imaging. For imaging the overscan columns maximum is GetMaxImgCols() + GetNumOverscanCols().

Exceptions

std::runtime_error

◆ SetRoiNumRows()

void ApogeeCam::SetRoiNumRows ( uint16_t rows )

Sets the number of imaging ROI rows The default value is the GetMaxImgRows().

Parameters

[in] rows number of rows, 1 to GetMaxImgRows() is the valid value range.

Exceptions

std::runtime_error

◆ SetRoiStartCol()

void ApogeeCam::SetRoiStartCol ( uint16_t col )

Sets the starting column for the imaging ROI. 0 is the default value.

Parameters

[in] col 0 to GetMaxImgCols() -1 is the valid value range.

Exceptions

std::runtime_error

◆ SetRoiStartRow()

void ApogeeCam::SetRoiStartRow ( uint16_t row )

Sets the starting row for the imaging ROI. 0 is the default value.

Parameters

[in] row 0 to GetMaxImgRows() -1 is the valid value range.

Exceptions

std::runtime_error

◆ SetSequenceDelay()

void ApogeeCam::SetSequenceDelay ( double delay )

Time delay between images of the sequence. Dependent on SetVariableSequenceDelay( bool variable ). The default value of this variable after initialization is 327us.

Parameters

[in] delay The valid range is from 327us to 21.42s.

Exceptions

std::runtime_error

◆ SetShutterAmpCtrl()

void ApogeeCam::SetShutterAmpCtrl ( bool TurnOn )

Enables/disables the CCD voltage while the shutter strobe is high. The default value of this variable after initialization is FALSE.

Parameters

[in] TurnOn true disables the CCD voltage, false enables voltage

Exceptions

std::runtime_error

◆ SetShutterCloseDelay()

void ApogeeCam::SetShutterCloseDelay ( double delay )

Sets the amount of time between the close of the shutter and the beginning of the sensor readout. The default value of this variable after initialization is camera dependent. NOTE: This is a specialized property designed for unique experiments. Applications and users will not normally need to modify this variable from the default value.

Parameters

[in] delay

Exceptions

std::runtime_error

◆ SetShutterState()

void ApogeeCam::SetShutterState ( Apg::ShutterState state )

Set the shutter state.

Parameters

[in] state Desired shutter state

Exceptions

std::runtime_error

◆ SetShutterStrobePeriod()

void ApogeeCam::SetShutterStrobePeriod ( double period )

Sets the period of the shutter strobe appearing on a pin at the experiment interface. The default value of this variable after initialization is 0.001s (1ms).

Parameters

[in] period The minimum valid value is 45ns and maximum value is 2.6ms (40ns/bit resolution).

Exceptions

std::runtime_error

◆ SetShutterStrobePosition()

void ApogeeCam::SetShutterStrobePosition ( double position )

Sets the delay from the time the exposure begins to the time the rising edge of the shutter strobe period appears on a pin at the experiment interface. The default value of this variable after initialization is 0.001s (1ms).

Parameters

[in] position The minimum valid value is 3.31us and the maximum value is 167ms (2.56us/bit resolution).

Exceptions

std::runtime_error

◆ SetTdiBinningRows()

void ApogeeCam::SetTdiBinningRows ( uint16_t bin )

The row (vertical) binning of a TDI image. The default value for this variable after initialization is 1. Modifying this property also changes the value of the SetKineticsSectionHeight( uint16_t height ) property.

Parameters

[in] bin The valid range for this variable is between 1 and the corresponding value of GetMaxBinRows().

Exceptions

std::runtime_error

◆ SetTdiRate()

void ApogeeCam::SetTdiRate ( double TdiRate )

Rate between TDI rows. The default value for this variable after initialization is 0.100s. Modifying this property also changes the value of the SetKineticsShiftInterval( double interval ) property.

Parameters

[in] TdiRate Range is from 5.12us to 336ms.

Exceptions

std::runtime_error

◆ SetTdiRows()

void ApogeeCam::SetTdiRows ( uint16_t TdiRows )

Total number of rows in the TDI image. The default value for this variable after initialization is 1. Modifying this property also changes the value of the SetKineticsSections( uint16_t sections ) property.

Parameters

[in] TdiRows Range is between 1 and 65535.

Exceptions

std::runtime_error

◆ SetVariableSequenceDelay()

void ApogeeCam::SetVariableSequenceDelay ( bool variable )

Tells the camera when it should apply the sequeuce delay during an image sequence. The default value of this variable after initialization is true.

Parameters

[in] variable If true, the delay is applied between the end of last readout to beginning of next exposure. If false, delay is a constant time interval from the beginning of the last exposure to the beginning of the next exposure.

Exceptions

std::runtime_error

◆ StartExposure()

virtual void ApogeeCam::StartExposure	(	double	Duration,
		bool	IsLight
	)

pure virtual

This method begins the imaging process. The type of exposure taken is depends on various state variables including the CameraMode and TriggerMode.

Parameters

[in]	Duration	Length of the exposure(s), in seconds. The valid range for this parameter is GetMinExposureTime() to GetMaxExposureTime().
[in]	Determines	whether the exposure is a light or dark/bias frame. A light frame requires this parameter to be set to true, while a dark frame requires this parameter to be false.

Exceptions

std::runtime_error

Implemented in Ascent, Alta, Quad, AltaF, and Aspen.

◆ StopExposure()

virtual void ApogeeCam::StopExposure ( bool Digitize )

pure virtual

This method halts an in progress exposure. If this method is called and there is no exposure in progress a std::runtime_error exception is thrown.

Parameters

[in] Digitize If set to true, then the application must call GetImage() to retrieve the image data and to put the camera in a good state for the next exposure. If set to false, then an application should not call GetImage().

Exceptions

std::runtime_error

Implemented in Alta, and CamGen2Base.

◆ StopExposureModeNorm()

void ApogeeCam::StopExposureModeNorm ( bool Digitize )

protected

◆ SupsendCooler()

void ApogeeCam::SupsendCooler ( bool & resume )

protected

◆ UpdateAlta()

void ApogeeCam::UpdateAlta	(	const std::string	FilenameCamCon,
		const std::string	FilenameBufCon,
		const std::string	FilenameFx2,
		const std::string	FilenameGpifCamCon,
		const std::string	FilenameGpifBufCon,
		const std::string	FilenameGpifFifo
	)

◆ UpdateAscentOrAltaF()

void ApogeeCam::UpdateAscentOrAltaF	(	const std::string	FilenameFpga,
		const std::string	FilenameFx2,
		const std::string	FilenameDescriptor
	)

◆ UpdateAspen()

void ApogeeCam::UpdateAspen	(	const std::string	FilenameFpga,
		const std::string	FilenameFx2,
		const std::string	FilenameDescriptor,
		const std::string	FilenameWebPage,
		const std::string	FilenameWebServer,
		const std::string	FilenameWebCfg
	)

◆ VerifyFrmwrRev()

void ApogeeCam::VerifyFrmwrRev ( )

protected

◆ WaitForCoolerSuspendBit()

void ApogeeCam::WaitForCoolerSuspendBit	(	const uint16_t	mask,
		const bool	IsHigh
	)

protected

◆ WriteReg()

void ApogeeCam::WriteReg	(	uint16_t	reg,
		uint16_t	value
	)

Parameters

[in]	reg	Register
[in]	value	Value to write

Exceptions

std::runtime_error

◆ WriteStrDatabase()

void ApogeeCam::WriteStrDatabase ( CamInfo::StrDb & info )

Member Data Documentation

◆ m_CamCfgData

std::shared_ptr<CApnCamData> ApogeeCam::m_CamCfgData

protected

◆ m_CameraConsts

std::shared_ptr<PlatformData> ApogeeCam::m_CameraConsts

protected

◆ m_CamIo

std::shared_ptr<CameraIo> ApogeeCam::m_CamIo

protected

◆ m_CamMode

std::shared_ptr<ModeFsm> ApogeeCam::m_CamMode

protected

◆ m_CcdAcqSettings

std::shared_ptr<CcdAcqParams> ApogeeCam::m_CcdAcqSettings

protected

◆ m_ExposureTimer

std::shared_ptr<ApgTimer> ApogeeCam::m_ExposureTimer

protected

◆ m_fileName

const std::string ApogeeCam::m_fileName

protected

◆ m_FirmwareVersion

uint16_t ApogeeCam::m_FirmwareVersion

protected

◆ m_Id

uint16_t ApogeeCam::m_Id

protected

◆ m_ImageInProgress

bool ApogeeCam::m_ImageInProgress

protected

◆ m_IsConnected

bool ApogeeCam::m_IsConnected

protected

◆ m_IsInitialized

bool ApogeeCam::m_IsInitialized

protected

◆ m_IsPreFlashOn

bool ApogeeCam::m_IsPreFlashOn

protected

◆ m_LastExposureTime

double ApogeeCam::m_LastExposureTime

protected

◆ m_NumImgsDownloaded

uint16_t ApogeeCam::m_NumImgsDownloaded

protected

◆ m_PlatformType

CamModel::PlatformType ApogeeCam::m_PlatformType

protected

The documentation for this class was generated from the following files:

ln/3rdparty/src/indilib/indi-1.7.4/3rdparty/libapogee/ApogeeCam.h
ln/3rdparty/src/indilib/indi-1.7.4/3rdparty/libapogee/ApogeeCam.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~ApogeeCam()

◆ ApogeeCam() [1/2]

◆ ApogeeCam() [2/2]

Member Function Documentation

◆ AdcParamCheck()

◆ AreFlushCmdsDisabled()

◆ CancelExposureNoThrow()

◆ CfgCamFromId()

◆ CheckAndWaitForStatus()

◆ ClearAllRegisters()

◆ CloseConnection()

◆ DefaultCfgCamFromId()

◆ DefaultCloseConnection()

◆ DefaultGetFanMode()

◆ DefaultGetTempHeatsink()

◆ DefaultInit()

◆ DefaultSetFanMode()

◆ ExectuePreFlash()

◆ ExposureAndGetImgRC()

◆ ExposureZ()

◆ FixImgFromCamera()

◆ GetAdcGain()

◆ GetAdcOffset()

◆ GetAvailableMemory()

◆ GetCameraMode()

◆ GetCcdAdcResolution()

◆ GetCcdAdcSpeed()

◆ GetCoolerBackoffPoint()

◆ GetCoolerDrive()

◆ GetCoolerSetPoint()

◆ GetCoolerStatus()

◆ GetDriverVersion()

◆ GetFanMode()

◆ GetFirmwareRev()

◆ GetFlushBinningRows()

◆ GetIlluminationMask()

◆ GetImage()

◆ GetImageCount()

◆ GetImageZ()

◆ GetImagingStatus()

◆ GetImgSequenceCount()

◆ GetInfo()

◆ GetInputVoltage()

◆ GetInterfaceType()

◆ GetIoPortAssignment()

◆ GetIoPortBlankingBits()

◆ GetIoPortData()

◆ GetIoPortDirection()

◆ GetKineticsSectionHeight()

◆ GetKineticsSections()

◆ GetKineticsShiftInterval()

◆ GetLedAState()

◆ GetLedBrightness()

◆ GetLedBState()

◆ GetLedMode()

◆ GetMaxBinCols()

◆ GetMaxBinRows()

◆ GetMaxExposureTime()

◆ GetMaxImgCols()

◆ GetMaxImgRows()

◆ GetMinExposureTime()

◆ GetModel()

◆ GetNumAdChannels()

◆ GetNumAds()

◆ GetNumOverscanCols()

◆ GetPixelHeight()

◆ GetPixelWidth()

◆ GetPlatformType()

◆ GetPreFlash()

◆ GetRoiBinCol()

◆ GetRoiBinRow()

◆ GetRoiNumCols()

◆ GetRoiNumRows()

◆ GetRoiStartCol()
