QSI_Global.h File Reference

#include "WinTypes.h"
#include "wincompat.h"
#include "FilterWheel.h"
#include <string>

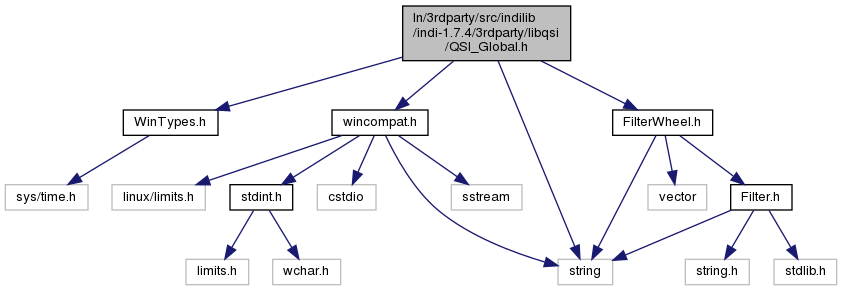

Include dependency graph for QSI_Global.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	QSI_CCDSpecs_t
struct	QSI_DeviceDetails_t
struct	QSI_ExposureSettings_t
struct	QSI_AdvEnabledOptions_t
struct	QSI_FilterDesc_t
struct	QSI_AdvSettings_t
struct	QSI_AutoZeroData_t
struct	QSI_IOTimeouts_t

Macros
#define	LOG

Typedefs
typedef struct QSI_CCDSpecs_t	QSI_CCDSpecs
typedef struct QSI_DeviceDetails_t	QSI_DeviceDetails
typedef struct QSI_ExposureSettings_t	QSI_ExposureSettings
typedef struct QSI_AdvEnabledOptions_t	QSI_AdvEnabledOptions
typedef struct QSI_FilterDesc_t	QSI_FilterDesc
typedef struct QSI_AdvSettings_t	QSI_AdvSettings
typedef struct QSI_AutoZeroData_t	QSI_AutoZeroData
typedef struct QSI_IOTimeouts_t	QSI_IOTimeouts
typedef enum QSICameraState_t	QSICameraState
typedef enum QSICoolerState_t	QSICoolerState

Enumerations
enum	QSICameraState_t {   CCD_ERROR = 0, CCD_FILTERWHEELMOVING = 1, CCD_FLUSHING = 2, CCD_WAITTRIGGER = 3,   CCD_DOWNLOADING = 4, CCD_READING = 5, CCD_EXPOSING = 6, CCD_IDLE = 7 }
enum	QSICoolerState_t {   COOL_OFF = 0, COOL_ON = 1, COOL_ATAMBIENT = 2, COOL_GOTOAMBIENT = 3,   COOL_NOCONTROL = 4, COOL_INITIALIZING = 5, COOL_INCREASING = 6, COOL_DECREASING = 7,   COOL_BROWNOUT = 8 }
enum	QSI_ReturnStates {   ALL_OK = 0, ERR_CAM_OverTemp = 1, ERR_CAM_UnderTemp = 2, ERR_CAM_UnderVolt = 3,   ERR_CAM_OverVolt = 4, ERR_CAM_Filter = 5, ERR_CAM_Shutter = 6, ERR_USB_Load = 50,   ERR_USB_LoadFunction = 51, ERR_USB_OpenFailed = 100, ERR_USB_WriteFailed = 101, ERR_USB_ReadFailed = 102,   ERR_PKT_OpenFailed = 200, ERR_PKT_SetTimeOutFailed = 300, ERR_PKT_CloseFailed = 400, ERR_PKT_CheckQueuesFailed = 500,   ERR_PKT_BothQueuesDirty = 600, ERR_PKT_RxQueueDirty = 700, ERR_PKT_TxQueueDirty = 800, ERR_PKT_SendInitFailed = 900,   ERR_PKT_TxPacketTooLong = 1000, ERR_PKT_TxFailed = 1100, ERR_PKT_TxNone = 1200, ERR_PKT_TxTooLittle = 1300,   ERR_PKT_RxHeaderFailed = 1400, ERR_PKT_RxBadHeader = 1500, ERR_PKT_RxPacketTooLong = 1600, ERR_PKT_RxFailed = 1700,   ERR_PKT_RxNone = 1800, ERR_PKT_RxTooLittle = 1900, ERR_PKT_BlockInitFailed = 2100, ERR_PKT_BlockRxFailed = 2200,   ERR_PKT_BlockRxTooLittle = 2300, ERR_PKT_SetLatencyFailed = 2400, ERR_PKT_ResetDeviceFailed = 2500, ERR_PKT_SetUSBParmsFailed = 2600,   ERR_PKT_NoConnection = 2700, ERR_IFC_InitCamera = 10000, ERR_IFC_GetDeviceDetails = 20000, ERR_IFC_StartExposure = 30000,   ERR_IFC_AbortExposure = 40000, ERR_IFC_TransferImage = 50000, ERR_IFC_ReadBlock = 60000, ERR_IFC_GetDeviceState = 70000,   ERR_IFC_SetTemperature = 80000, ERR_IFC_GetTemperature = 90000, ERR_IFC_ActivateRelay = 100000, ERR_IFC_IsRelayDone = 110000,   ERR_IFC_SetFilterWheel = 120000, ERR_IFC_CameraNotOpen = 130000, ERR_IFC_FilterNotOpen = 140000, ERR_IFC_CameraError = 150000,   ERR_IFC_CameraHasNoFilter = 160000, ERR_IFC_FilterAlreadyOpen = 170000, ERR_IFC_Initialize = 180000, ERR_IFC_CountDevices = 190000,   ERR_IFC_ListSerial = 200000, ERR_IFC_ListDescription = 210000, ERR_IFC_ListMismatch = 220000, ERR_IFC_GetDeviceInfo = 230000,   ERR_IFC_AbortRelays = 240000, ERR_IFC_GetLastExposure = 250000, ERR_IFC_CanAbortExposure = 260000, ERR_IFC_CanStopExposure = 270000,   ERR_IFC_GetFilterPosition = 280000, ERR_IFC_GetCCDSpecs = 290000, ERR_IFC_GetAdvDetails = 300000, ERR_IFC_NegAutoZero = 310000,   ERR_IFC_SendAdvSettings = 320000, ERR_IFC_TriggerCCDError = 330000, ERR_IFC_NotSupported = 340000, ERR_IFC_GetShutterStateError = 350000 }

Variables
const int	MAX_DEVICES = 31
const int	MAX_PKT_LENGTH = 128
const int	READ_TIMEOUT = 15000
const int	WRITE_TIMEOUT = 5000
const int	SHORT_READ_TIMEOUT = 1000
const int	SHORT_WRITE_TIMEOUT = 1000
const int	LONG_READ_TIMEOUT = 20000
const int	LONG_WRITE_TIMEOUT = 20000
const int	MINIMUM_READ_TIMEOUT = 1000
const int	MINIMUM_WRITE_TIMEOUT = 1000
const int	PKT_COMMAND = 0
const int	PKT_LENGTH = 1
const int	PKT_HEAD_LENGTH = 2
const int	AUTOZEROSATTHRESHOLD = 10000
const int	AUTOZEROMAXADU = 64000
const int	AUTOZEROSKIPSTARTPIXELS = 32
const int	AUTOZEROSKIPENDPIXELS = 32

Macro Definition Documentation

LOG

#define LOG

Typedef Documentation

QSI_AdvEnabledOptions

typedef struct QSI_AdvEnabledOptions_t QSI_AdvEnabledOptions

QSI_AdvSettings

typedef struct QSI_AdvSettings_t QSI_AdvSettings

QSI_AutoZeroData

typedef struct QSI_AutoZeroData_t QSI_AutoZeroData

QSI_CCDSpecs

typedef struct QSI_CCDSpecs_t QSI_CCDSpecs

QSI_DeviceDetails

typedef struct QSI_DeviceDetails_t QSI_DeviceDetails

QSI_ExposureSettings

typedef struct QSI_ExposureSettings_t QSI_ExposureSettings

QSI_FilterDesc

typedef struct QSI_FilterDesc_t QSI_FilterDesc

QSI_IOTimeouts

typedef struct QSI_IOTimeouts_t QSI_IOTimeouts

QSICameraState

typedef enum QSICameraState_t QSICameraState

QSICoolerState

typedef enum QSICoolerState_t QSICoolerState

Enumeration Type Documentation

QSI_ReturnStates

enum QSI_ReturnStates

Enumerator
ALL_OK
ERR_CAM_OverTemp
ERR_CAM_UnderTemp
ERR_CAM_UnderVolt
ERR_CAM_OverVolt
ERR_CAM_Filter
ERR_CAM_Shutter
ERR_USB_Load
ERR_USB_LoadFunction
ERR_USB_OpenFailed
ERR_USB_WriteFailed
ERR_USB_ReadFailed
ERR_PKT_OpenFailed
ERR_PKT_SetTimeOutFailed
ERR_PKT_CloseFailed
ERR_PKT_CheckQueuesFailed
ERR_PKT_BothQueuesDirty
ERR_PKT_RxQueueDirty
ERR_PKT_TxQueueDirty
ERR_PKT_SendInitFailed
ERR_PKT_TxPacketTooLong
ERR_PKT_TxFailed
ERR_PKT_TxNone
ERR_PKT_TxTooLittle
ERR_PKT_RxHeaderFailed
ERR_PKT_RxBadHeader
ERR_PKT_RxPacketTooLong
ERR_PKT_RxFailed
ERR_PKT_RxNone
ERR_PKT_RxTooLittle
ERR_PKT_BlockInitFailed
ERR_PKT_BlockRxFailed
ERR_PKT_BlockRxTooLittle
ERR_PKT_SetLatencyFailed
ERR_PKT_ResetDeviceFailed
ERR_PKT_SetUSBParmsFailed
ERR_PKT_NoConnection
ERR_IFC_InitCamera
ERR_IFC_GetDeviceDetails
ERR_IFC_StartExposure
ERR_IFC_AbortExposure
ERR_IFC_TransferImage
ERR_IFC_ReadBlock
ERR_IFC_GetDeviceState
ERR_IFC_SetTemperature
ERR_IFC_GetTemperature
ERR_IFC_ActivateRelay
ERR_IFC_IsRelayDone
ERR_IFC_SetFilterWheel
ERR_IFC_CameraNotOpen
ERR_IFC_FilterNotOpen
ERR_IFC_CameraError
ERR_IFC_CameraHasNoFilter
ERR_IFC_FilterAlreadyOpen
ERR_IFC_Initialize
ERR_IFC_CountDevices
ERR_IFC_ListSerial
ERR_IFC_ListDescription
ERR_IFC_ListMismatch
ERR_IFC_GetDeviceInfo
ERR_IFC_AbortRelays
ERR_IFC_GetLastExposure
ERR_IFC_CanAbortExposure
ERR_IFC_CanStopExposure
ERR_IFC_GetFilterPosition
ERR_IFC_GetCCDSpecs
ERR_IFC_GetAdvDetails
ERR_IFC_NegAutoZero
ERR_IFC_SendAdvSettings
ERR_IFC_TriggerCCDError
ERR_IFC_NotSupported
ERR_IFC_GetShutterStateError

QSICameraState_t

enum QSICameraState_t

Enumerator
CCD_ERROR
CCD_FILTERWHEELMOVING
CCD_FLUSHING
CCD_WAITTRIGGER
CCD_DOWNLOADING
CCD_READING
CCD_EXPOSING
CCD_IDLE

QSICoolerState_t

enum QSICoolerState_t

Enumerator
COOL_OFF
COOL_ON
COOL_ATAMBIENT
COOL_GOTOAMBIENT
COOL_NOCONTROL
COOL_INITIALIZING
COOL_INCREASING
COOL_DECREASING
COOL_BROWNOUT

Variable Documentation

AUTOZEROMAXADU

const int AUTOZEROMAXADU = 64000

AUTOZEROSATTHRESHOLD

const int AUTOZEROSATTHRESHOLD = 10000

AUTOZEROSKIPENDPIXELS

const int AUTOZEROSKIPENDPIXELS = 32

AUTOZEROSKIPSTARTPIXELS

const int AUTOZEROSKIPSTARTPIXELS = 32

LONG_READ_TIMEOUT

const int LONG_READ_TIMEOUT = 20000

LONG_WRITE_TIMEOUT

const int LONG_WRITE_TIMEOUT = 20000

MAX_DEVICES

const int MAX_DEVICES = 31

MAX_PKT_LENGTH

const int MAX_PKT_LENGTH = 128

MINIMUM_READ_TIMEOUT

const int MINIMUM_READ_TIMEOUT = 1000

MINIMUM_WRITE_TIMEOUT

const int MINIMUM_WRITE_TIMEOUT = 1000

PKT_COMMAND

const int PKT_COMMAND = 0

PKT_HEAD_LENGTH

const int PKT_HEAD_LENGTH = 2

PKT_LENGTH

const int PKT_LENGTH = 1

READ_TIMEOUT

const int READ_TIMEOUT = 15000

SHORT_READ_TIMEOUT

const int SHORT_READ_TIMEOUT = 1000

SHORT_WRITE_TIMEOUT

const int SHORT_WRITE_TIMEOUT = 1000

WRITE_TIMEOUT

const int WRITE_TIMEOUT = 5000
